Aspen Avionics EFD1000 E5 - 6.11 Configuration Module Installation

EFD1000 E5 Dual Electronic Flight Instrument (EFI) Install Manual
DOCUMENT # 900-00041-001 PAGE 78-226 REVISION D
© Copyright 2019 Aspen Avionics Inc.
6.11 Configuration Module Installation
The Configuration Module will be cable tied to the EFD wire harness. Leave just enough slack
in the cable ties so that the configuration module can slide along the EFD cable. This will
prevent strain on the configuration module connector while the EFD harness is manipulated
during installation and subsequent removal/replacement.

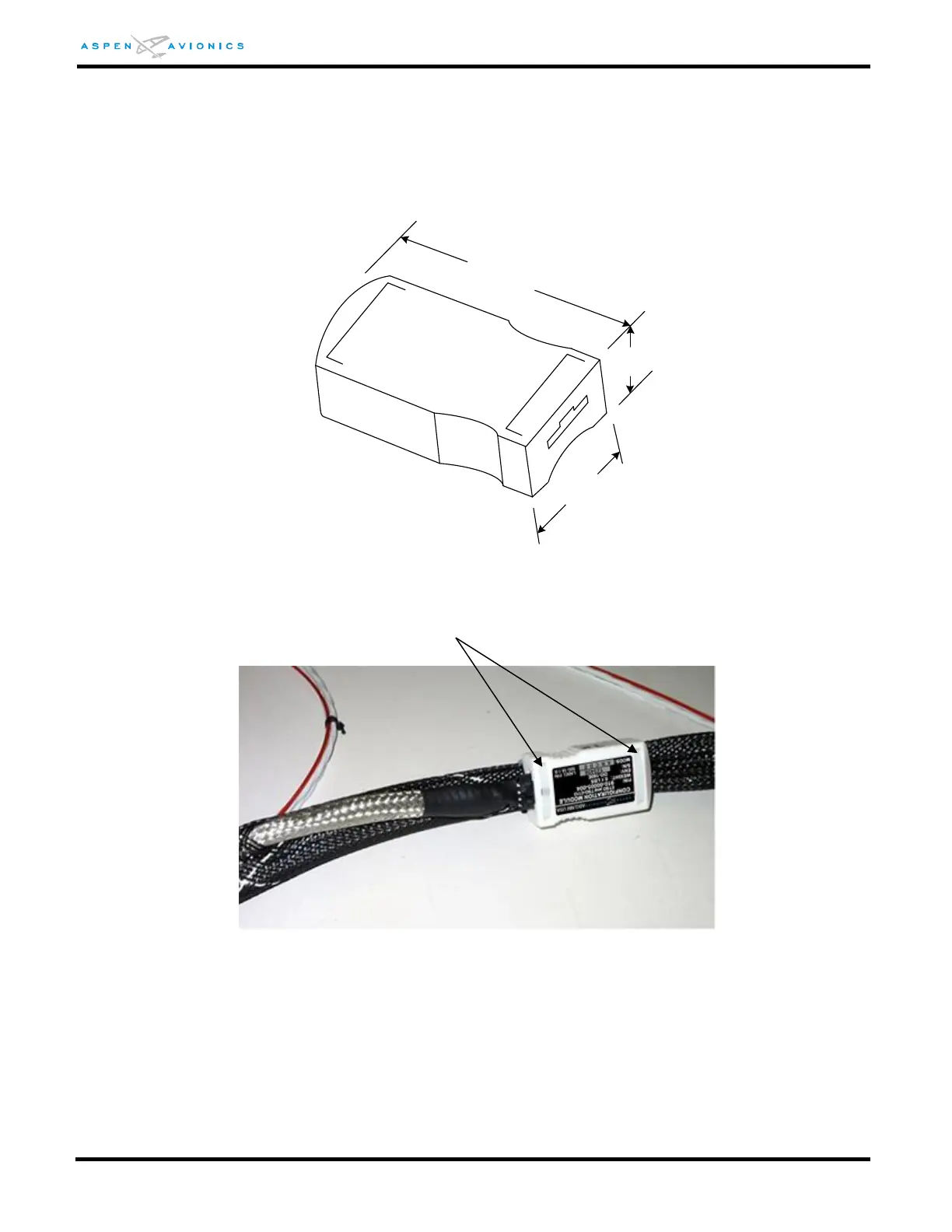

Figure 6-29: Configuration Module Dimensions (inches)
Figure 6-30: Configuration Module Tie Wrapped to Harness
1
.
85
in
1
.
0
in
0.55 in
Cable Tie two (2) places
