5. Unit description
page 19 / 96 Issue date 18.05.2021, rev. 1.0
Battery installation
PhysioGo.Lite Electro can be optionally fitted with a battery. Users can install the battery by themselves.
WARNING: Before performing the below actions, turn the device power off and disconnect the SMPS from the
mains.
The battery assembly method is illustrated in the following figures.

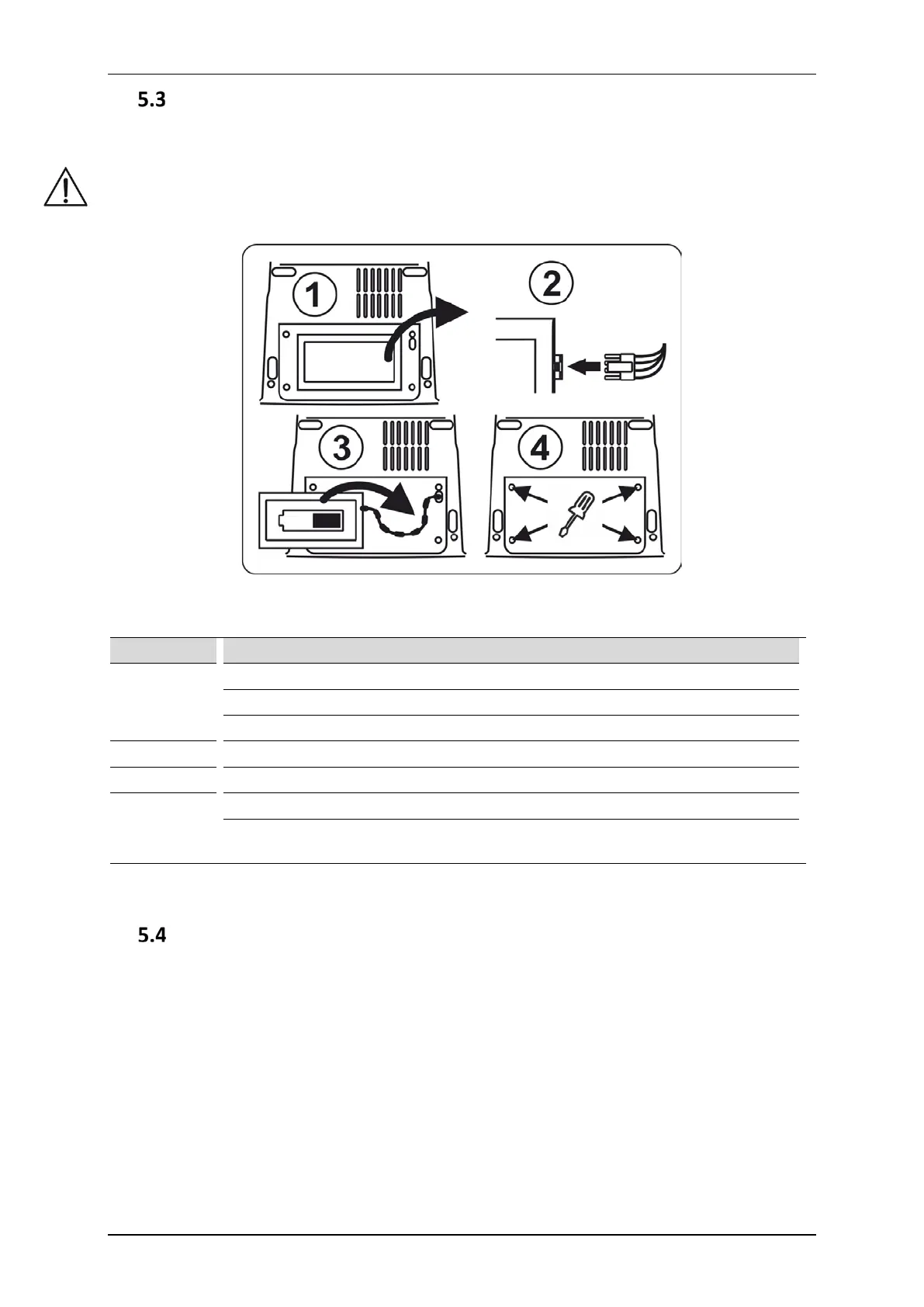

Figure 5.4 The battery installation method
Table 5.5. The battery installation method
Action no.: Description
1.
Turn the device over.
Unscrew four battery cover screws.
Remove the stabilizing cartridge. Keep it for further use.
2. Connect battery cable to the battery socket.
3. Place the battery in the enclosure.
4.
Reinstall battery cover by means of 4 screws.
Turn the device over to its normal position. Connect power supply to the mains. Switch
on the unit and check If it starts correctly.
The above information is summarized on labels placed on the battery cover.
Name plate
The name plate is located on the bottom of unit casing. Among others there are following data on the name plate
(see Appendix A):
• device version,
• serial number,
• nominal voltage and frequency of operation,
• type of applied fuses,
• manufacturer's data.
