Atlas Copco CA3500DCO User Manual

Maintenance, 10h
4812160101_A.pdf 2014-07-04
Hydraulic reservoir - Check fluid level

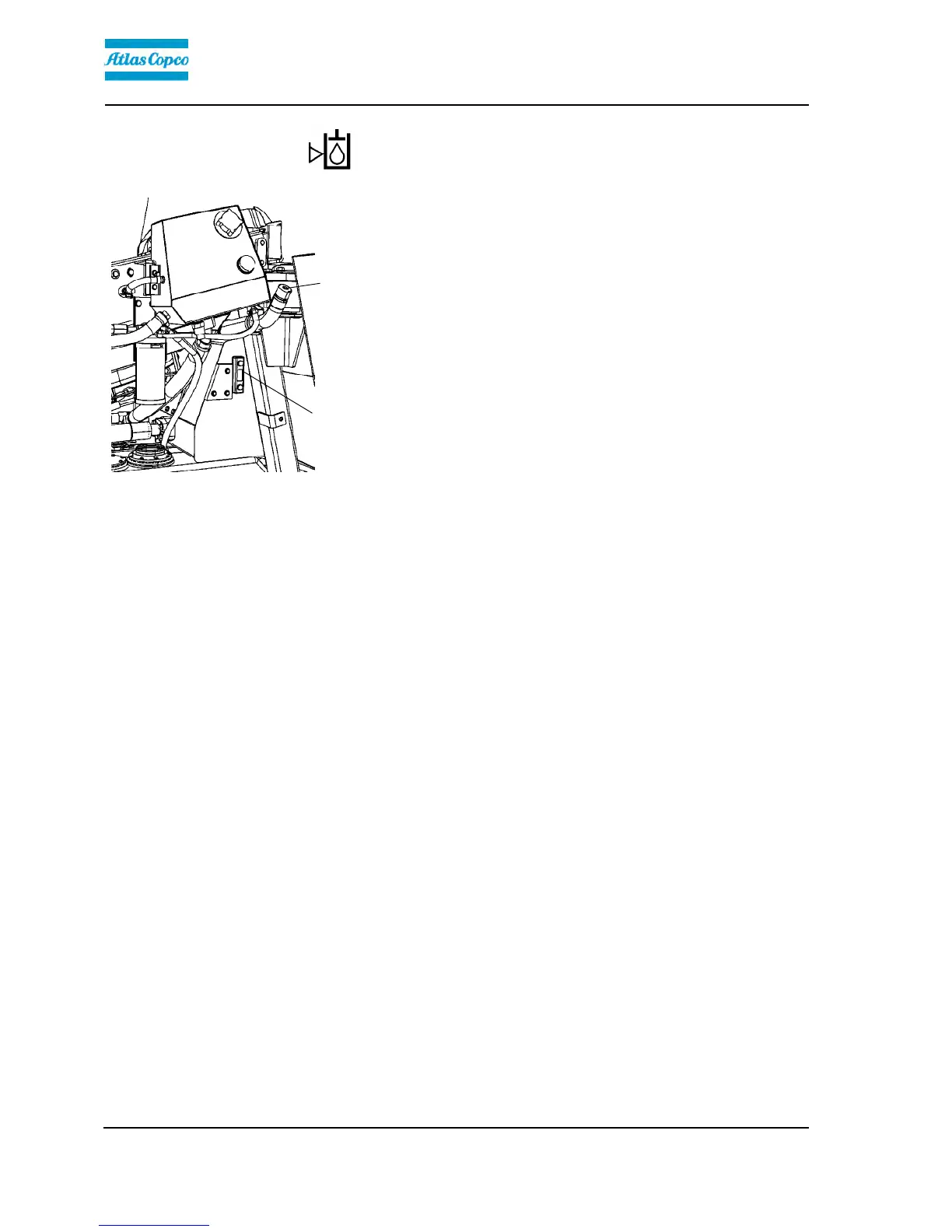

Fig. Hydraulic reservoir
1. Sight glass
2. Filler pipe
1
2
Place the roller on a level surface and check that the
oil level in the sight glass (1) is between the max and
min markings.
Top up with the type of hydraulic fluid specified in the
lubricant specification, if the level is too low.
The volume between the min. and max. lines is
approx. 4 liters (4.2 qts).
