Maintenance - 250 / 750 / 1250 / 1750h
4812160101_A.pdf 2014-07-04
Rear axle planetary gears - Check oil level

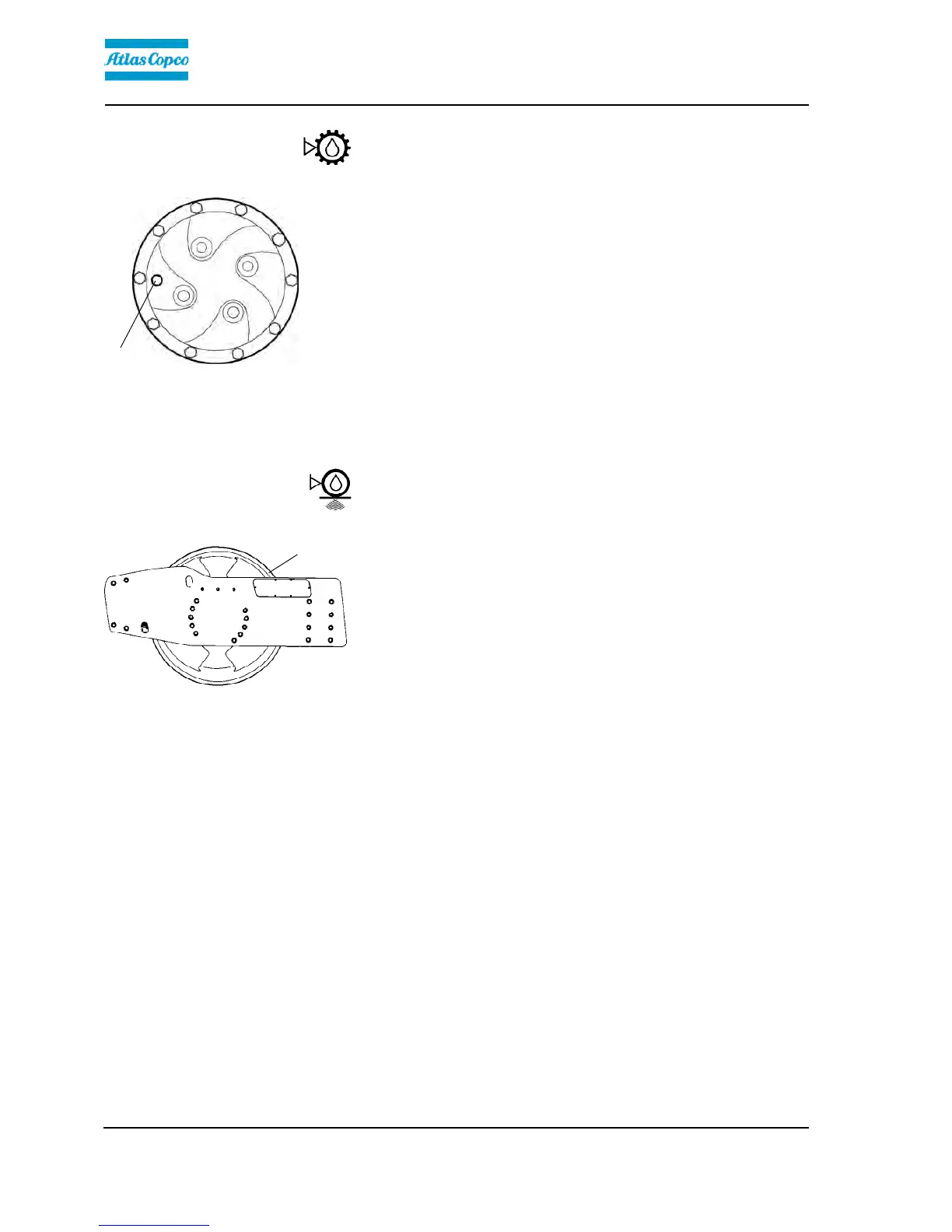

Fig. Level check - planetary gear
1. Level/Filler plug
1
Position the roller so that the level plug (1) in the
planetary gear is at "9 o'clock" or "3 o'clock".
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil. See lubrication specification.
Clean and refit the plug.
Check the fluid level in the same way on the rear
axle's other planetary gear.
Drum - Checking the oil level
Fig. Left drum side
1. Groove
1
Position the roller on a flat surface with the groove (1)
on the inside of the drum aligned with the top of the
drum frame.
116
