Maintenance - 250 / 750 / 1250 / 1750h
4812160101_A.pdf2014-07-04
Maintenance - 250 / 750 / 1250 / 1750h
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Rear axle differential - Check oil level

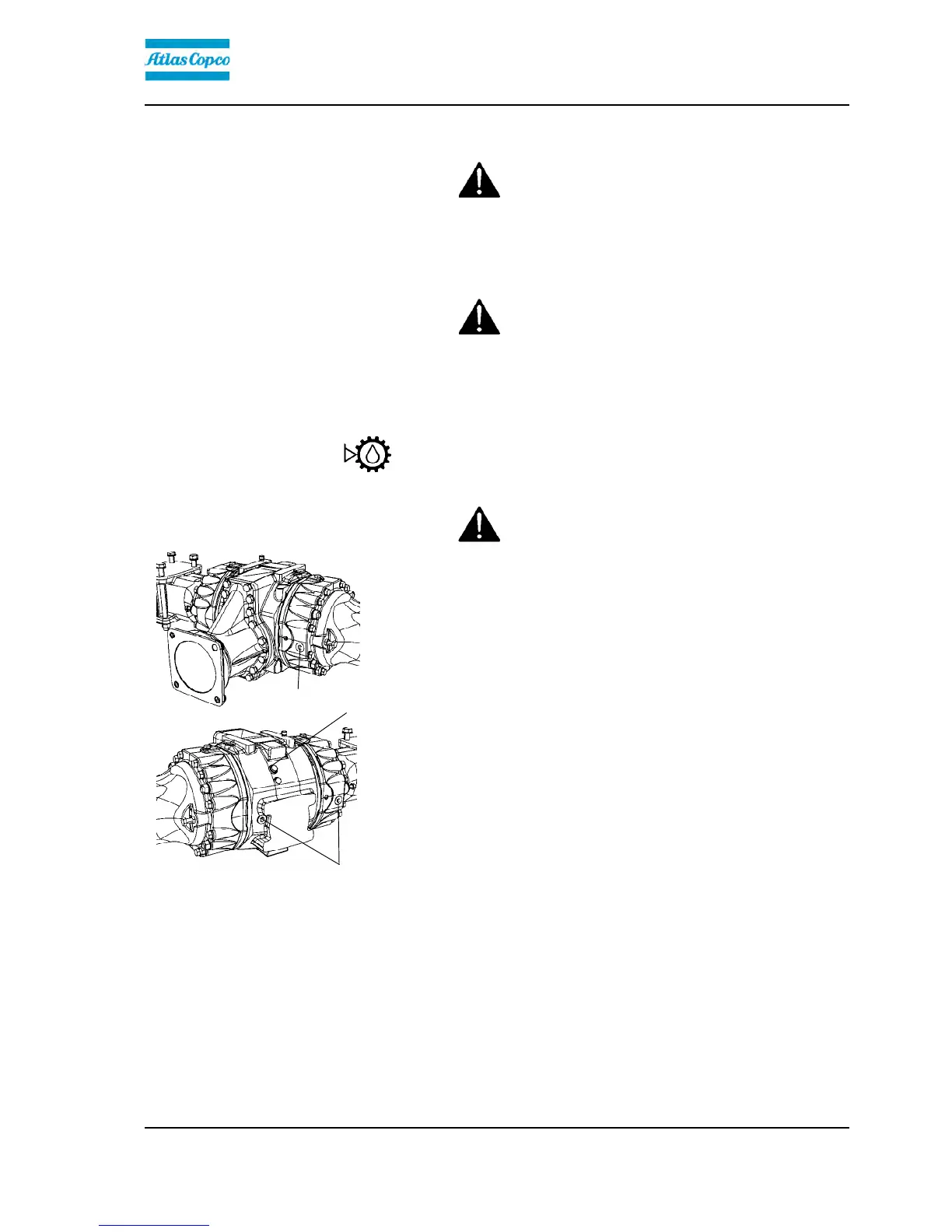

Fig. Level control - differential housing
1. Level plugs (x 3)
2. Filler plug
1
2
1
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the level plugs (1) and check
that the oil level reaches the lower edge of the plug
holes. The plugs can be found at the front or rear of
the rear axle.
At a low level, remove the filler plug (2) and top up
with oil to the correct level. Use transmission oil, see
lubricant specifications.
Clean and refit the plug.
115
