Lifting
Locking the articulation
1
2
3

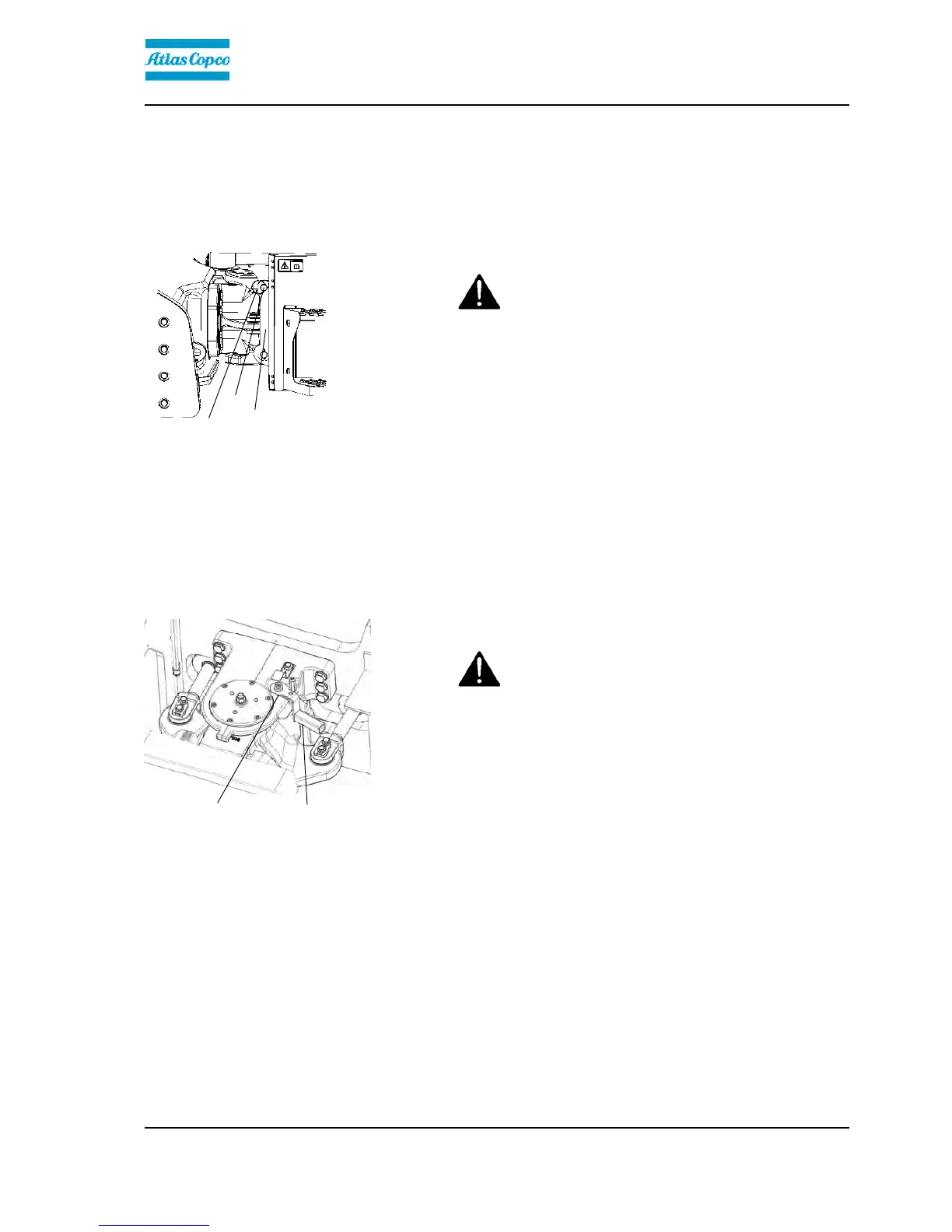

Fig. Steering joint lock
1. Locking arm
2. Locking pin
3. Locking dowel
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Turn the steering wheel to the straight ahead position.
Activate the parking brake.
Pull out the upper locking pin (2) fitted with a wire, and
pull out the locking dowel (3) fitted with a wire.
Fold down the locking arm (1) so that it rests against
the drum frame.
Reinstall the locking dowel (3) in the uppermost
locking lug, and secure the dowel in position with the
locking pin (2).
Locking the articulation
1
2
Fig. Steering joint lock, locked
1. Lock handle
2. Locking dowel
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Turn the steering wheel to the straight ahead position.
Activate the parking brake.
Front frame shall be in line with the rear frame.
Lift lock in the handle (1) while it is turned clockwise.
Make sure dowel (2) gets in position as illustrated.
Arm must be in contact with the surface of the molded
holder.
If this is not done, it's likely that the machine halves
are out of line, steer then the machine so this is
happening.
