Machine description
4812160101_A.pdf 2014-07-04
Display explanations

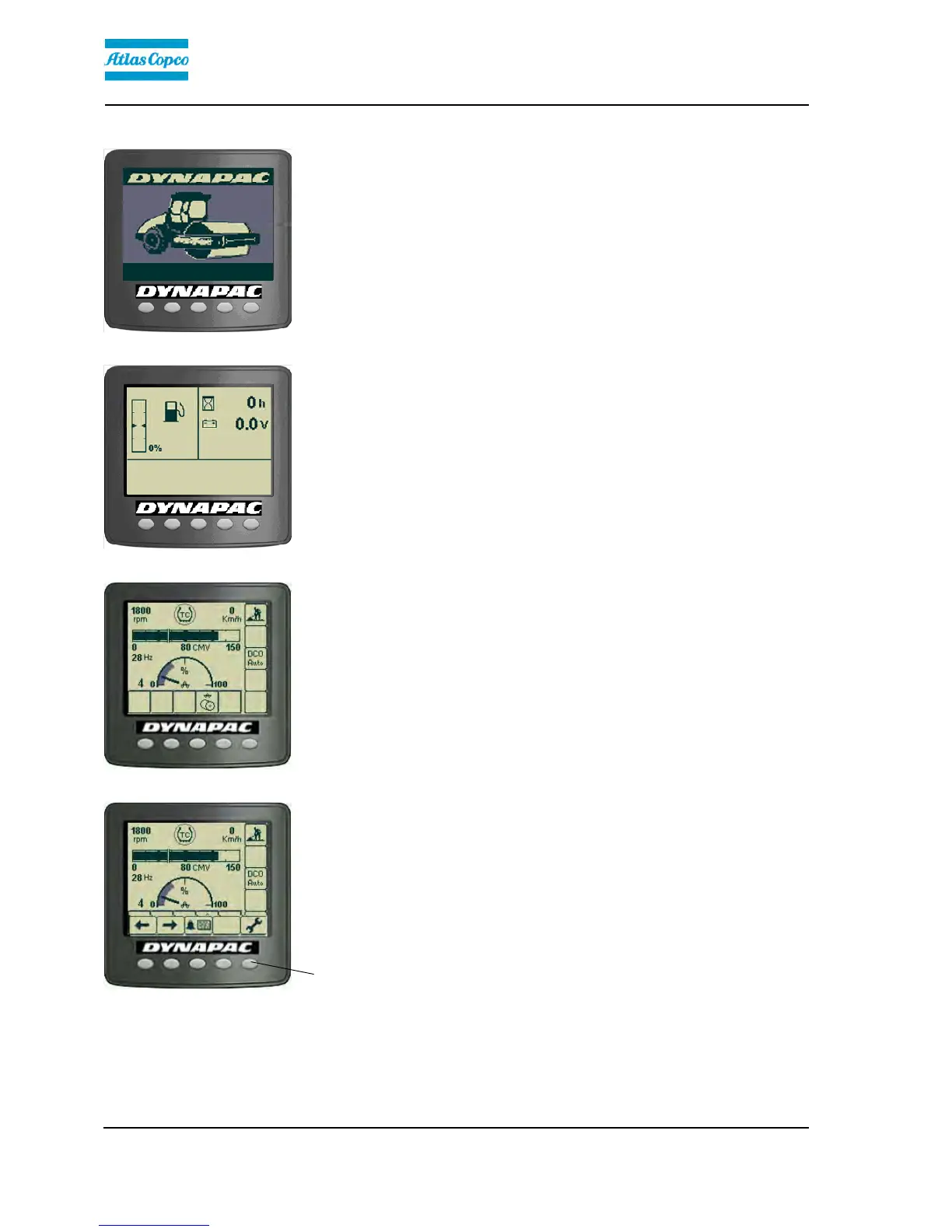

Fig. Start screen
When the ignition key is activated to position I, a start
screen is visible in display. This is shown for a few
seconds and then switches over to the status screen.
Before activating the starter motor, wait until the start
image has changed to the status image (the machine
is performing a system check while the start image is
being displayed).
Fig. Status screen
The status image provides information on the fuel
level, machine hours and voltage level. The fuel level
is indicated as a percentage (%).
This screen is active until the Diesel engine is started
or an active screen choice is made via the function
buttons below the display.
Fig. Working diagram DCO
If the engine is started before any buttons have been
selected the display will show the working diagram for
DCO.
This screen gives an overview and is kept during work:
The compaction value (cmv value) is shown at the top,
and engine speed and speed are shown in the corners.
The amplitude selection, amplitude and control area
are shown at the bottom.
1
Fig. Main screen/Working screen with
menu selection buttons (1)
A menu field is shown by pressing one of the menu
select buttons. The field is visible for a short while, if
no selection is made the field fades out. Menu field will
appear again upon pressing either one of the selection
buttons (1).
36
