Operation
4812160101_A.pdf2014-07-04
Driving
Operating the roller

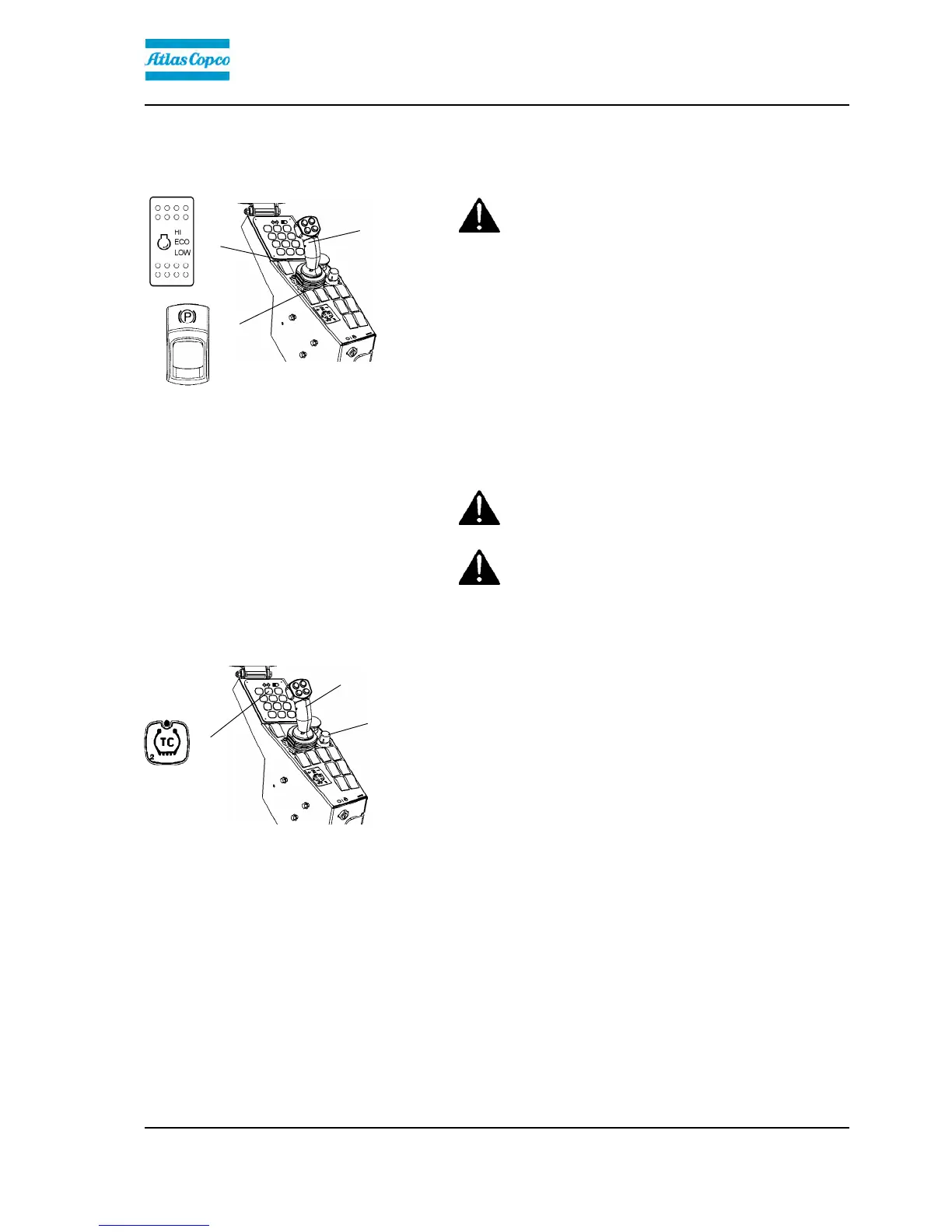

Fig. Control panel
1. Speed selector 2. Parking brake knob
2. Forward/Reverse lever
3
1
2
Under no circumstances is the machine to be
operated from the ground. The operator must be
seated inside the machine during all operation.
Under no circumstances is the machine to be
operated from the ground. The operator must be
seated inside the machine during all operation.
Activate working speed (1) = HI or ECO if available.
In ECO, the machine automatically regulates the
engine speed according to requirements.
If the machine is only to be transported, ECO should
be selected instead.
Check that the steering is working correctly by turning
the steering wheel once to the right and once to the
left while the roller is stationary.
Make sure that the area in front of and
behind the roller is clear.
Make sure that the area in front of and
behind the roller is clear.
Release the parking brake button (2) by
sliding the red lock on the button
backwards and changing the position of
the lever.
Release the parking brake button (2) by
sliding the red lock on the button
backwards and changing the position of
the lever.
2
3
Fig. Control panel
1. TC (Anti-spin)
2. Forward/Reverse lever
3. Potentiometer (speed limiter)
1
Machine with TC (Anti-Spin)
TC (Anti-Spin) (1) is activated by default (LED lit).
Position the speed control (3) in suitable position.
63
