protective construction displays plastic deformation or
cracks, the cab or the FOPS/ROPS structure must be
replaced immediately.
Never perform unauthorized modifications on the cab
or FOPS/ROPS structure without first having
discussed the modification with Dynapac's production
unit. Dynapac determines whether the modification
could result in the approval according to the
FOPS/ROPS standards becoming invalid.
Identification

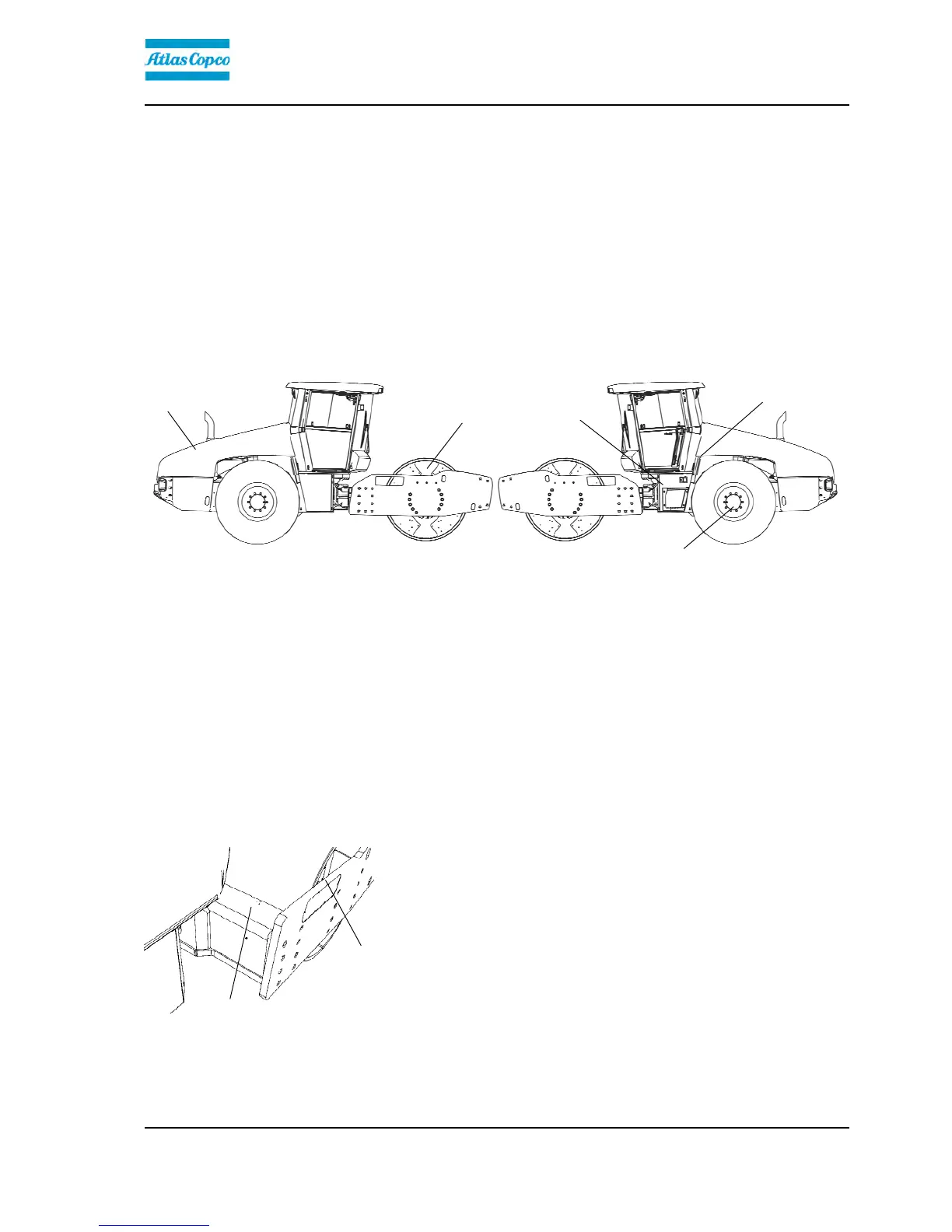

Product and component plates
1, 2
2
3
4
5
1. Product plate - Product Identification Number (PIN), model/type designation1. Product plate - Product Identification Number (PIN), model/type designation
2. Engine plate - Type description, product and serial numbers2. Engine plate - Type description, product and serial numbers
3. Cab/ROPS plate - Certification, product and serial numbers3. Cab/ROPS plate - Certification, product and serial numbers
4. Component plate, rear axle - Product and serial numbers4. Component plate, rear axle - Product and serial numbers
5. Component plate, drum - Product and serial numbers5. Component plate, drum - Product and serial numbers
1
1
Fig. Front frame
1. PIN
Product identification number on the frame
The machine PIN (product identification number) (1) is
punched on the right edge of the front frame or the
upper edge of the right frameside.
