Weight: refer to the hoisting plate on the roller
1
1

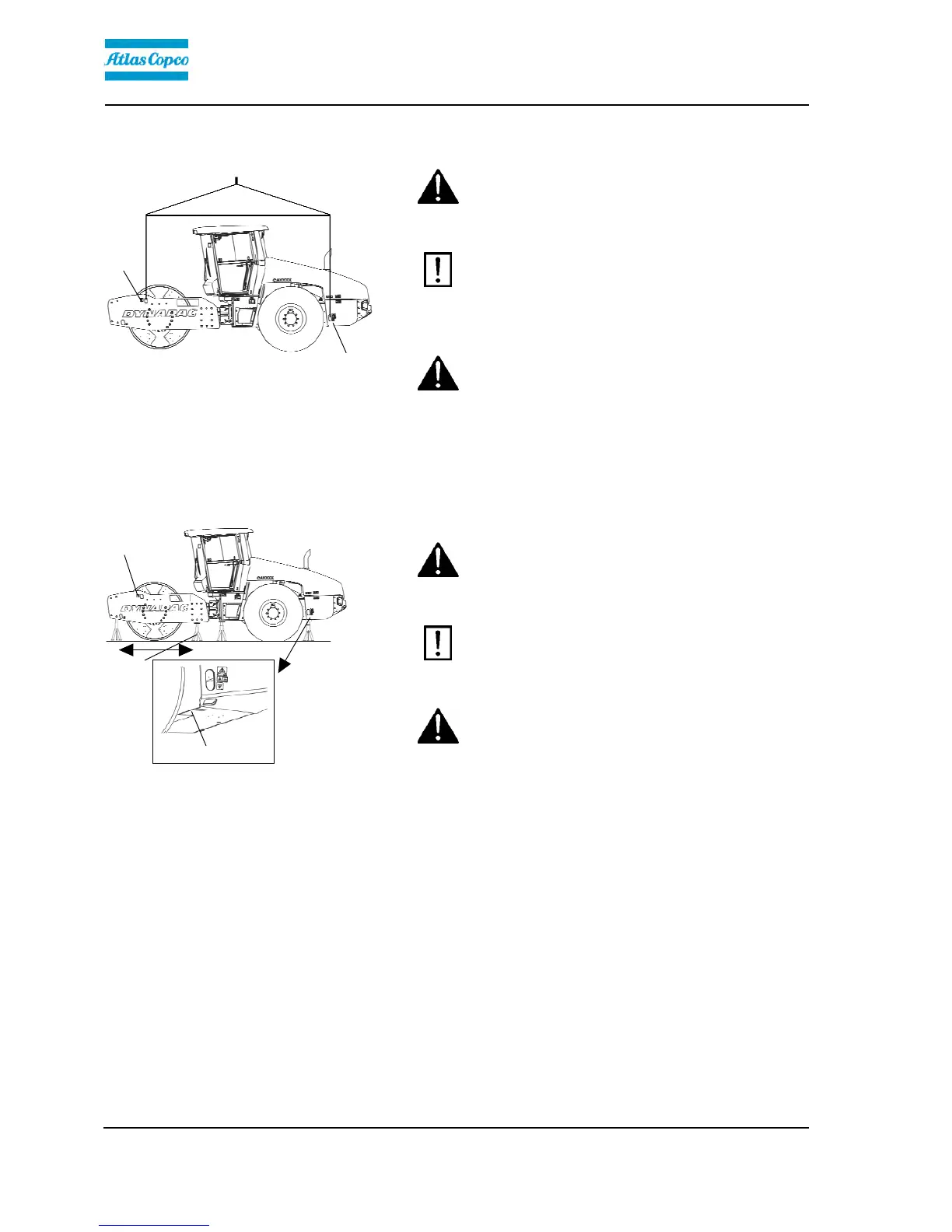

Fig. Roller prepared for lifting
1. Lifting plate
Lifting the roller
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Weight: refer to the hoisting plate on the
roller
1
Figure. Roller lifted with jack
1. Lifting plate
2. Jack
3. Marking
2
3
Lifting the roller with jack:
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The lifting device such as a jack (2), or
equivalent, must be dimensioned according to the
safety regulations for lifting devices.
The lifting device such as a jack (2), or
equivalent, must be dimensioned according to the
safety regulations for lifting devices.
Do not go under a lifted load! Make sure that the
lifting device is secure in its position, and on a
level and stable suface.
Do not go under a lifted load! Make sure that the
lifting device is secure in its position, and on a
level and stable suface.
You are recommended to lift the machine with a jack
or similar positioned at the marking (3) and/or at
alternative locations as illustrated. Lifting at any other
place can result in damage to the machine or personal
injury.
Regarding the drum frame, axle stands can be placed
along the entire side plates and cross members if
necessary.
78
