Operation
4812160101_A.pdf 2014-07-04
Operator's seat, comfort - Adjustments
6
4
2
1
3
5

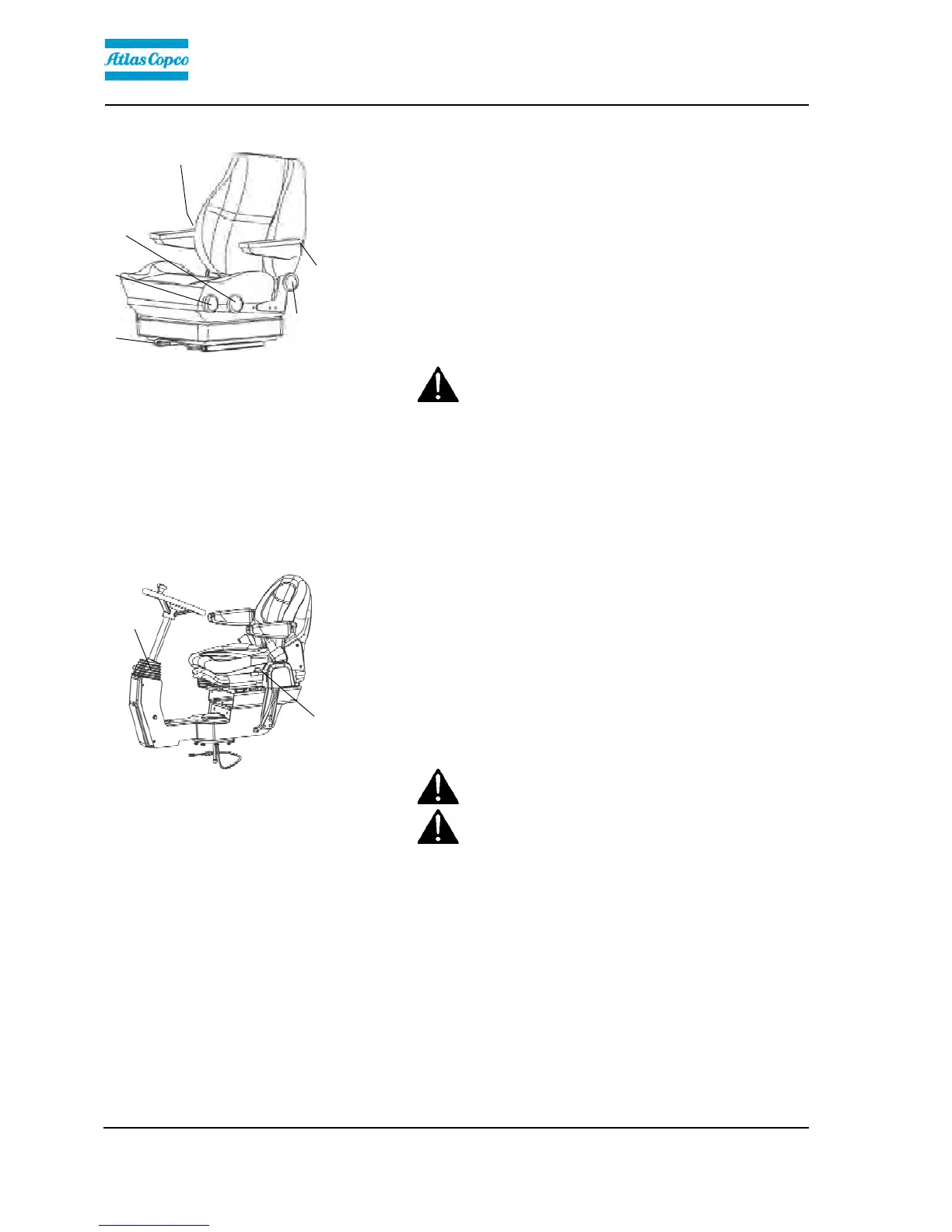

Fig. Operator’s seat
1. Lever - length adjustment
2. Wheel - height adjustment
3. Wheel - seat cushion inclination
4. Wheel - backrest inclination
5. Wheel - armrest inclination
6. Wheel - lumbar support
adjustment
Adjust the operator's seat so that the position is
comfortable and so that the controls are within easy
reach.
The seat can be adjusted as follows:
- Length adjustment (1)
- Height adjustment (2)
- Seat-cushion inclination (3)
- Backrest inclination (4)
- Armrest inclination (5)
- Lumbar support adjustment (6)
Always ensure that the seat is locked in position
before operating the roller.
Always ensure that the seat is locked in position
before operating the roller.
Control panel, adjustments
1
2
Fig. Operator's station
1. Locking lever - rotation
2. Locking lever - steering column
angle
The control unit has two adjustment options, rotation
and steering column angle.
For rotation, lift the lever (1).
Ensure that the control unit locks in position before
operating the machine.
Release locking lever (2) to adjust the steering column
angle. Lock the steering column in the new position.
To adjust the operator's seat, see the section for
basic/comfort seat.
Adjust all settings when the machine is stationary.Adjust all settings when the machine is stationary.
Always ensure that the seat is in locked position
before operating the roller.
Always ensure that the seat is in locked position
before operating the roller.
58
