Operation
4812160101_A.pdf 2014-07-04
Different operating modes
1

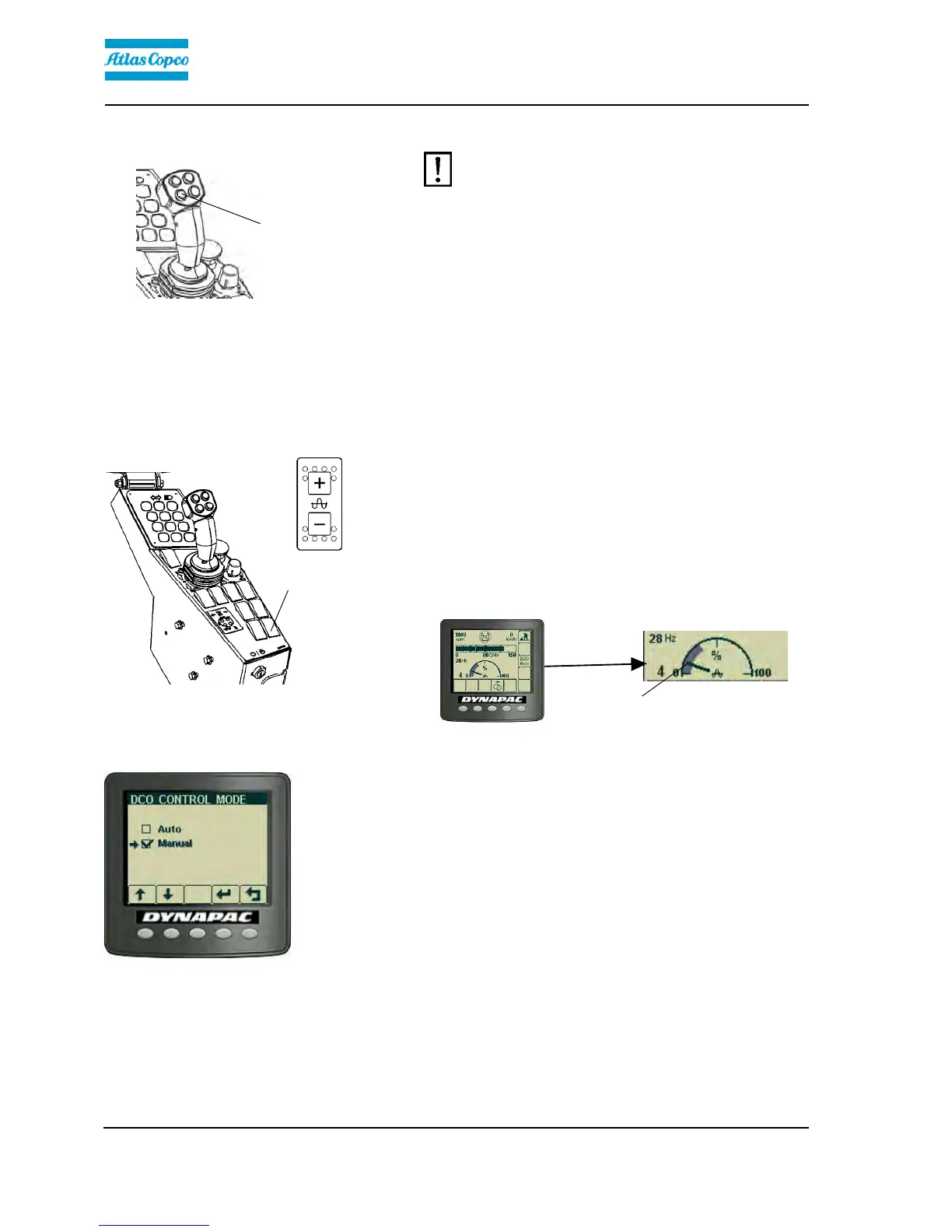

Fig. F/R lever
1. Vibration ON/OFF
Never activate vibration when the roller is
stationary. This can damage both the surface and
the machine.
Never activate vibration when the roller is
stationary. This can damage both the surface and
the machine.
Engage and disengage vibration using the switch (1)
on the front of the forward/reverse lever.
Always switch off vibration before the roller comes to a
standstill.
The normal operating mode for this roller during
vibration is automatic with the amplitude selector in
position 10. The vibrations are started and stopped
with the switch (1) on the control lever. The roller's
control system for the vibration amplitude will now
automatically select an amplitude between zero and
maximum adjusted to the rigidity of the surface.
Fig. Control panel
2. Amplitude selector
2
To limit the maximum amplitude the position of the
amplitude selector (2) can be adjusted down to 9, 8,
etc. The control system will then automatically select
an amplitude between zero and the selected maximum
value. The amplitude selected by the control system is
shown by the amplitude indicator (3), which shows the
current amplitude as a percentage of the maximum
amplitude for this roller.
3
Fig. Selection of manual mode
It is possible to select manual mode by going into the
display menu and selecting Manual under "Machine
Settings" in the view "DCO Control Mode".
It is not normally necessary to use manual mode,
except possibly during servicing. The next time the
machine is started it will return to automatic mode.
68
