Miscellaneous
4812160101_A.pdf2014-07-04
Short distance towing when the engine is
inoperative.

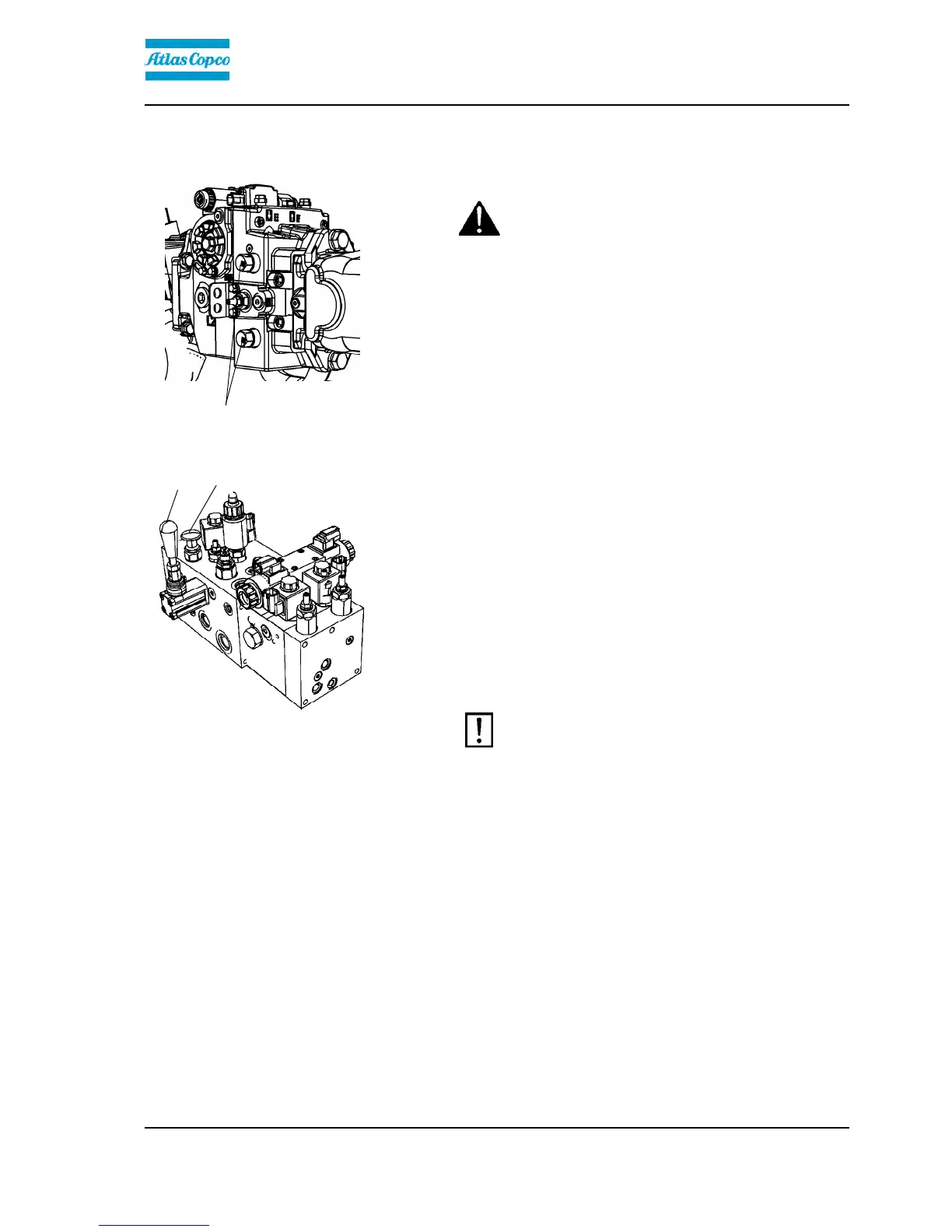

Fig. Propulsion pump
1. By-pass valve
1
Chock the wheels to prevent the roller from
moving when the brakes are hydraulically
disengaged.
Chock the wheels to prevent the roller from
moving when the brakes are hydraulically
disengaged.
Open the hood and make sure that the propulsion
pump is accessible.
On the pump there are two by-pass valves (1) (hex
screws), which should be turned three turns
anticlockwise to put the system in by-pass mode.
This function enables a machine to be moved.
2
3
Fig. Valve block, engine compartment
2. Pump arm
3. Brake release button
The release pump for the brakes is located on the
valve block, which is positioned in the rear of the
engine compartment.
Press the break release button (3).
Pump with the arm (2) until the brakes are released.
The roller can now be towed.
After towing, pull the brake release button (3) up.
To disengage the by-pass mode, turn back the hex
screws (1) three turns clockwise.
The machine must not be moved at a speed
higher than 3 km/h (2 mph), and no more than 300
meters (330 yards). Otherwise there is a risk of
damaging the drives. Be sure to reset the towing
valves (by turning them three turns clockwise)
after towing.
The machine must not be moved at a speed
higher than 3 km/h (2 mph), and no more than 300
meters (330 yards). Otherwise there is a risk of
damaging the drives. Be sure to reset the towing
valves (by turning them three turns clockwise)
after towing.
81
