Miscellaneous
4812160101_A.pdf2014-07-04
Unlocking the articulation
1
3
2

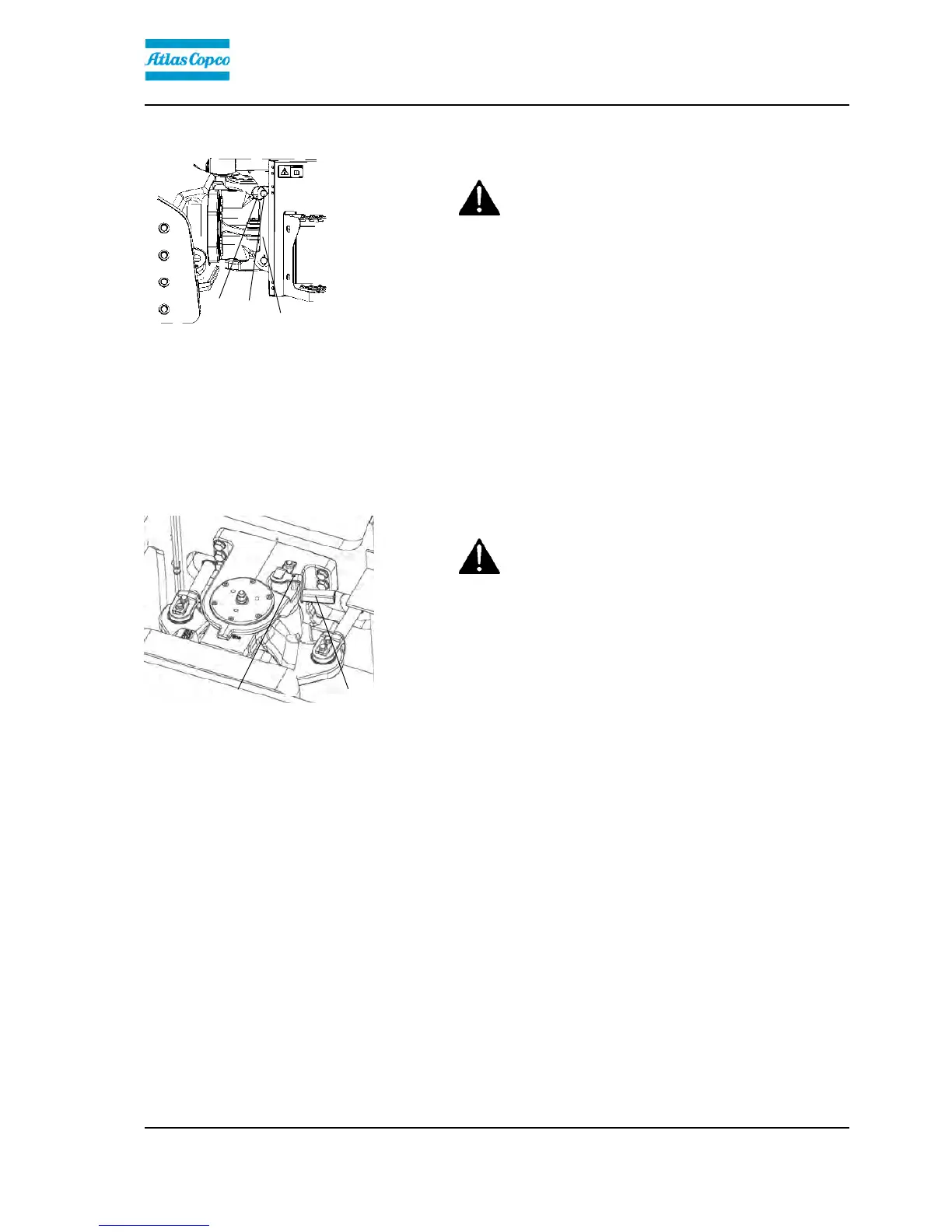

Fig. Steering joint lock
1. Locking arm
2. Locking pin
3. Locking dowel
Remember to restore the steering joint lock on the
steering joint to open before operating.
Remember to restore the steering joint lock on the
steering joint to open before operating.
Fold up the locking arm (1) and secure it in upper the
locking lug with the locking dowel (3). Insert the
locking pin (2) to secure the locking dowel (3).
Unlocking the articulation
1
2
Fig. Steering joint lock, open
1. Lock handle
2. Locking dowel
Remember to restore the steering joint lock on the
steering joint to open before operating.
Remember to restore the steering joint lock on the
steering joint to open before operating.
Lift lock in the handle while turning it counterclockwise.
Make sure lock gets in position on the dowel by trying
to turn the handle clockwise or counterclockwise
without lifting the lock.
Towing/Recovering
The roller can be moved up to 300 meters (330 yards)
using the instructions below.
79
