Maintenance - 250 / 750 / 1250 / 1750h
4812160101_A.pdf2014-07-04
The oil should now come up to the sight glass (2).

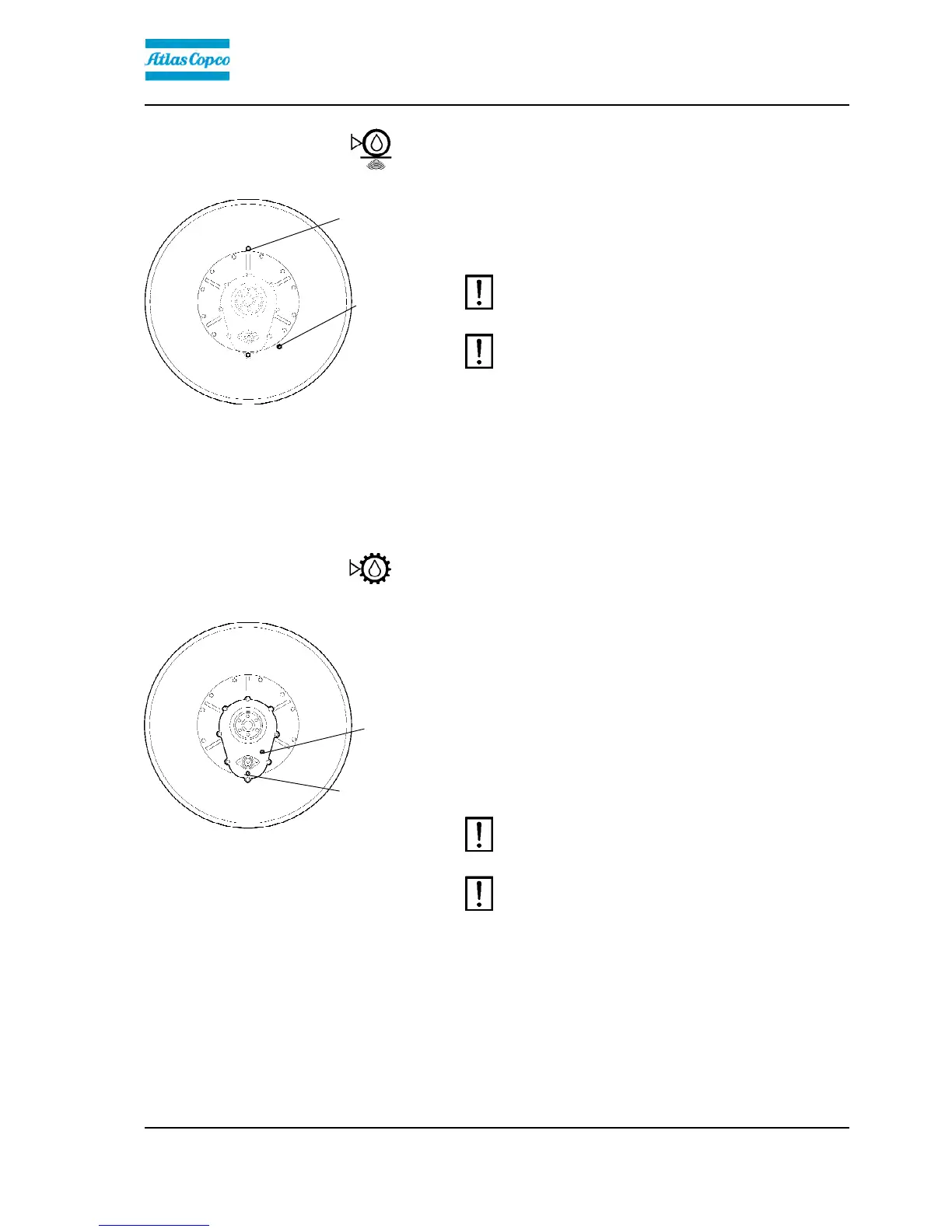

Fig. Drum, right side
1. Filler plug
2. Level glass
1
2
If necessary, release the filler plug (1) and fill to half
the sight glass (2).
Do not overfill with oil - risk of overheating.Do not overfill with oil - risk of overheating.
Make sure to only use Dynapac Drum Oil 1000 in
the drum.
Make sure to only use Dynapac Drum Oil 1000 in
the drum.
Clean and refit filler plug (1).
Gearbox - Checking the oil level
Fig. Gearbox - Drum, right side
1. Filler/Level plug
2. Drain plug
1
2
Park the roller on flat ground.
Clean and dry around filler/level plug (1) and unscrew
the plug.
Check that the oil is level with the bottom edge of the
plug hole.
If the oil is too low, fill until the oil reaches filler/level
plug (1).
Overfilling with oil can cause overheating.Overfilling with oil can cause overheating.
Make sure to only use Dynapac Drum Oil 1000 in
the gearbox.
Make sure to only use Dynapac Drum Oil 1000 in
the gearbox.
Clean and refit filler/level plug (1).
