Maintenance - 2000h
4812160101_A.pdf 2014-07-04

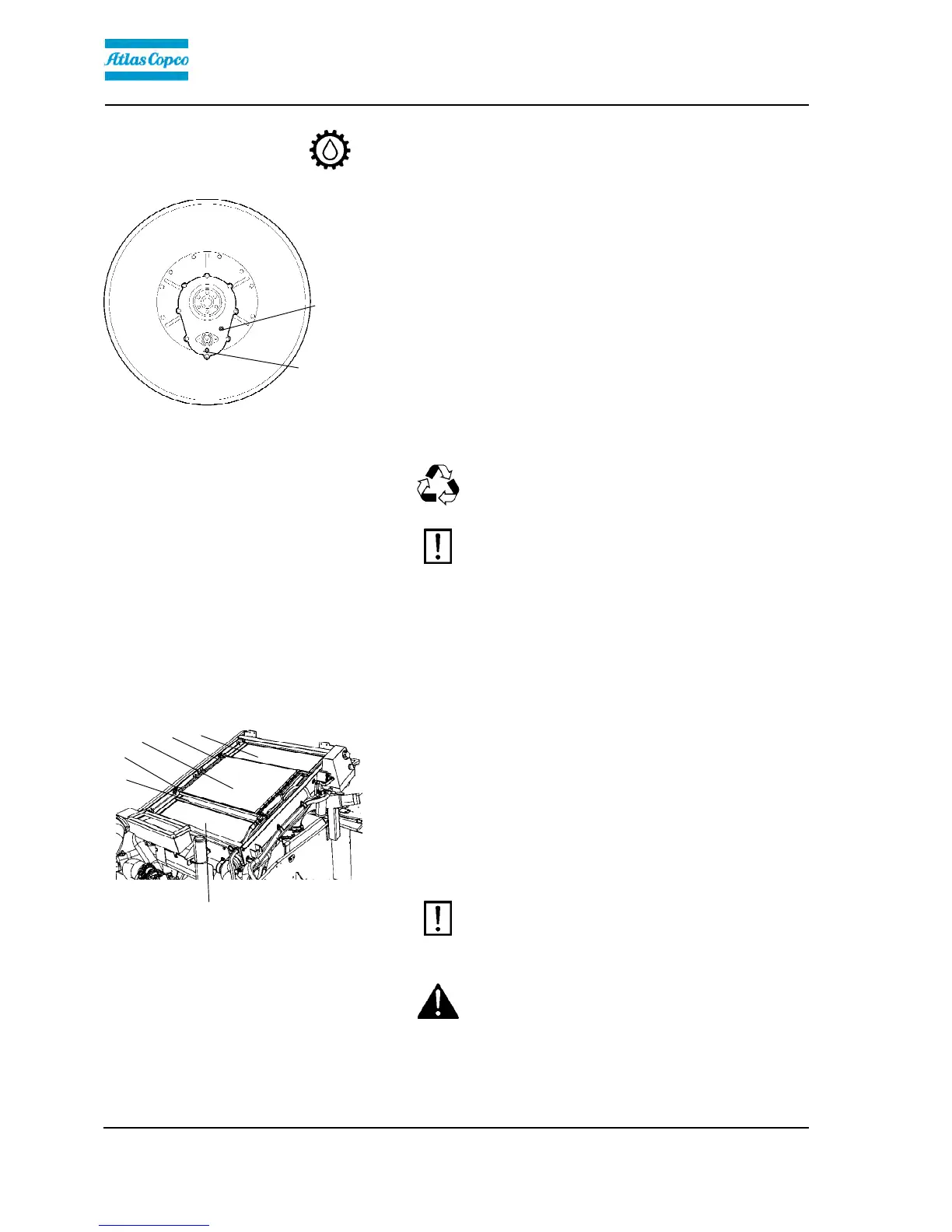

Fig. Gearbox - Drum, right side
1. Filler plug/Level plug
2. Drain plug
1
2
Gearbox - Oil change
Place the roller on a level surface.
Place a receptacle that holds at least 1 liter (0.3 gal))
under the drain plug (2).
Unscrew and clean the filler/level plug (1) and the
drain plug (2).
Allow all of the oil to drain off. Clean and refit drain
plug (2) and fill with oil up to filler/level plug (1). The
total volume of oil in the gearbox must be 0.3 liters
(0.08 gal).
Deliver the drain oil to environmentally correct
handling.
Deliver the drain oil to environmentally correct
handling.
Make sure to only use Dynapac Drum Oil 1000 in
the gearbox.
Make sure to only use Dynapac Drum Oil 1000 in
the gearbox.
Clean and refit filler/level plug (1).
Radiator - Check/Cleaning
Fig. Engine compartment
1. Water cooler
2. Charge air cooler
3. Hydraulic fluid cooler
4. Condenser element AC (Optional)
5. Screws (x 2)
1
2
3
4
5
5
Check that air can pass unobstructed through the
radiators (1), (2) and (3).
Clean a dirty radiator using compressed air or a
high-pressure water jet.
Undo the two screws (5) and tilt the condenser
element upwards.
Blow air or direct water through the cooler in the
opposite direction to that of the cooling air.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Wear protective goggles when working with
compressed air or high-pressure water jets.
Wear protective goggles when working with
compressed air or high-pressure water jets.
