Maintenance - 1000h
4812160101_A.pdf 2014-07-04
Drum - Checking the oil level

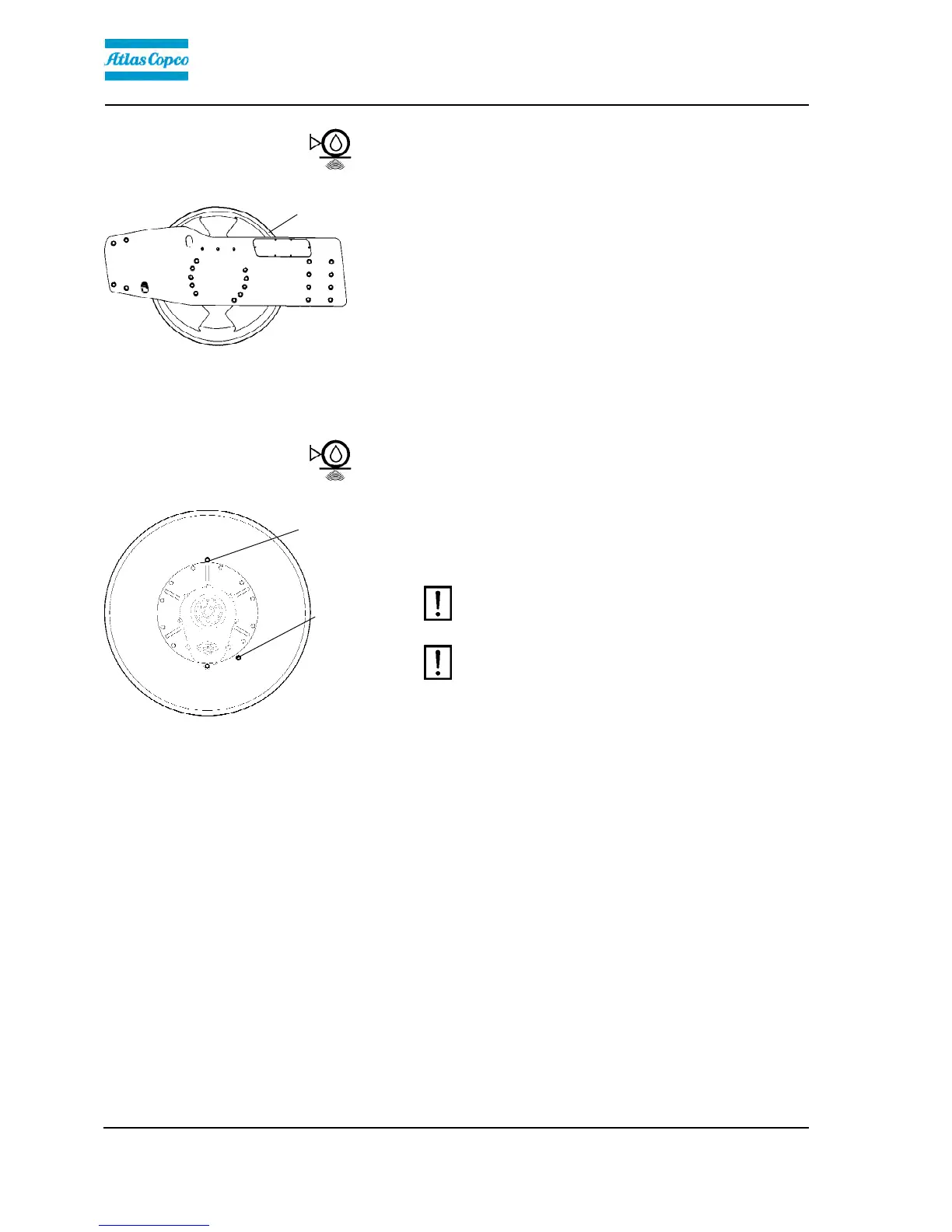

Fig. Left drum side
1. Groove
1
Position the roller on a flat surface with the groove (1)
on the inside of the drum aligned with the top of the
drum frame.
The oil should now come up to the sight glass (2).
Fig. Drum, right side
1. Filler plug
2. Level glass
1
2
If necessary, release the filler plug (1) and fill to half
the sight glass (2).
Do not overfill with oil - risk of overheating.Do not overfill with oil - risk of overheating.
Make sure to only use Dynapac Drum Oil 1000 in
the drum.
Make sure to only use Dynapac Drum Oil 1000 in
the drum.
Clean and refit filler plug (1).
136
