Miscellaneous
4812160101_A.pdf2014-07-04

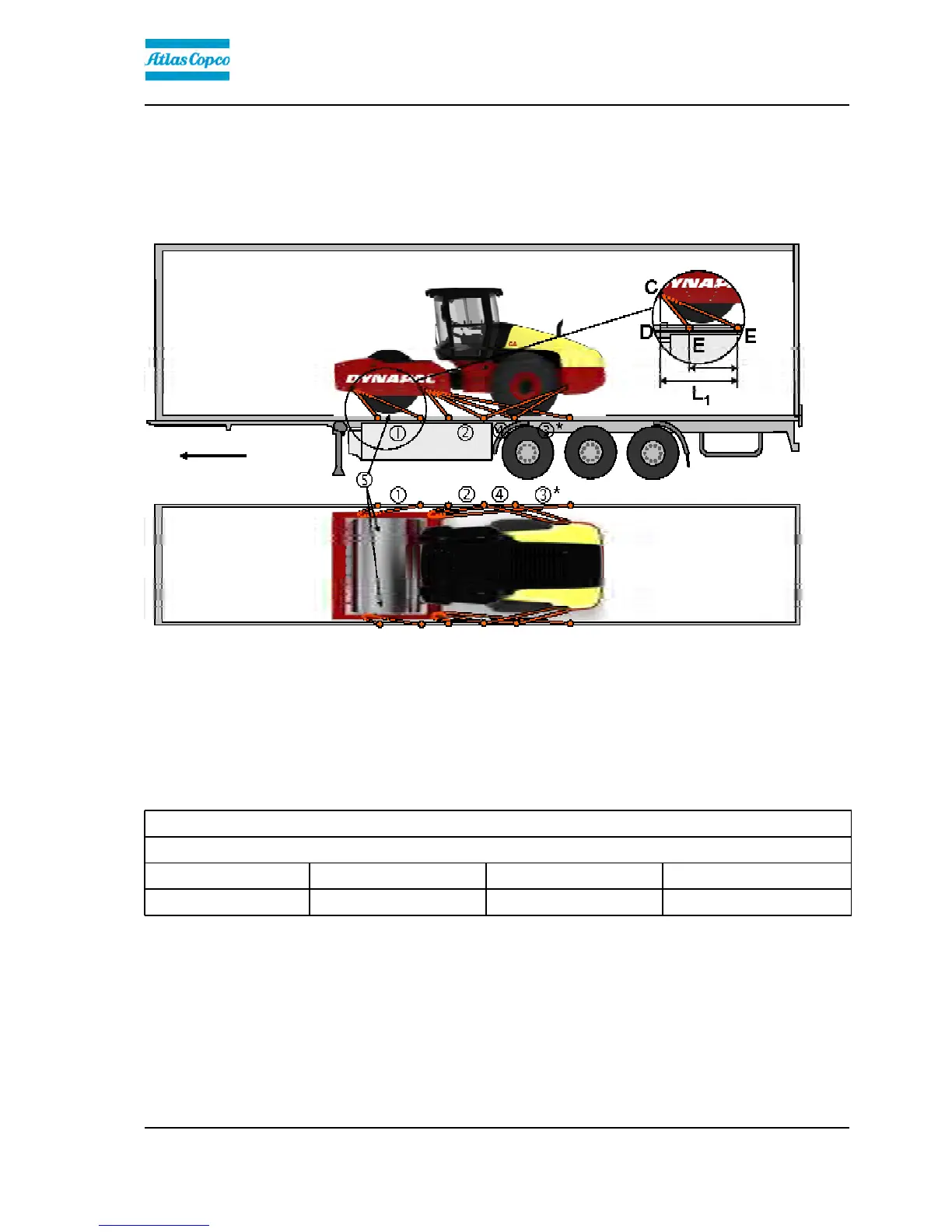

Securing CA5500/6000/6500 for loading
Securing the CA5500D/PD-CA6500D/PD vibratory
roller from Dynapac for transport.
(The instructions also apply to the CA5000D with
installed PD-shell)
Direct of travel
Roller loaded in forward
direction
* Lashing 3 can be moved to the rear lashing mount on the roller if necessary.* Lashing 3 can be moved to the rear lashing mount on the roller if necessary.
1 - 4 = double lashings, i.e. one lashing with two parts secured to two different lashing mounts,
symmetrically located on the right and left sides.
1 - 4 = double lashings, i.e. one lashing with two parts secured to two different lashing mounts,
symmetrically located on the right and left sides.
5 = rubber5 = rubber
The lashings' permitted distance interval in metersThe lashings' permitted distance interval in meters
(1 - 4: Double lashings, LC at least 1.7 tonnes (1700 daN), S
TF
300 kg (300daN))(1 - 4: Double lashings, LC at least 1.7 tonnes (1700 daN), S
TF
300 kg (300daN))
Double L
1
Double L
2
Double L
3
Double L
4
Double L
1
Double L
2
Double L
3
Double L
4
0,9 - 2,6 0,6 - 2,6 0,9 - 2,6 0,2 - 2,60,9 - 2,6 0,6 - 2,6 0,9 - 2,6 0,2 - 2,6
The distance L
1
above is between points D and E. D is the projected point directly at right angles laterally in relation to
the edge of the platform from the lashing mount C on the roller. E is the lashing mount at the edge of the platform. L
2
L
4
have a corresponding relationship.
The distance L
1
above is between points D and E. D is the projected point directly at right angles laterally in relation to
the edge of the platform from the lashing mount C on the roller. E is the lashing mount at the edge of the platform. L
2
L
4
have a corresponding relationship.
87
