Maintenance - 250 / 750 / 1250 / 1750h
4812160101_A.pdf 2014-07-04
Drum gearbox - Checking the oil level

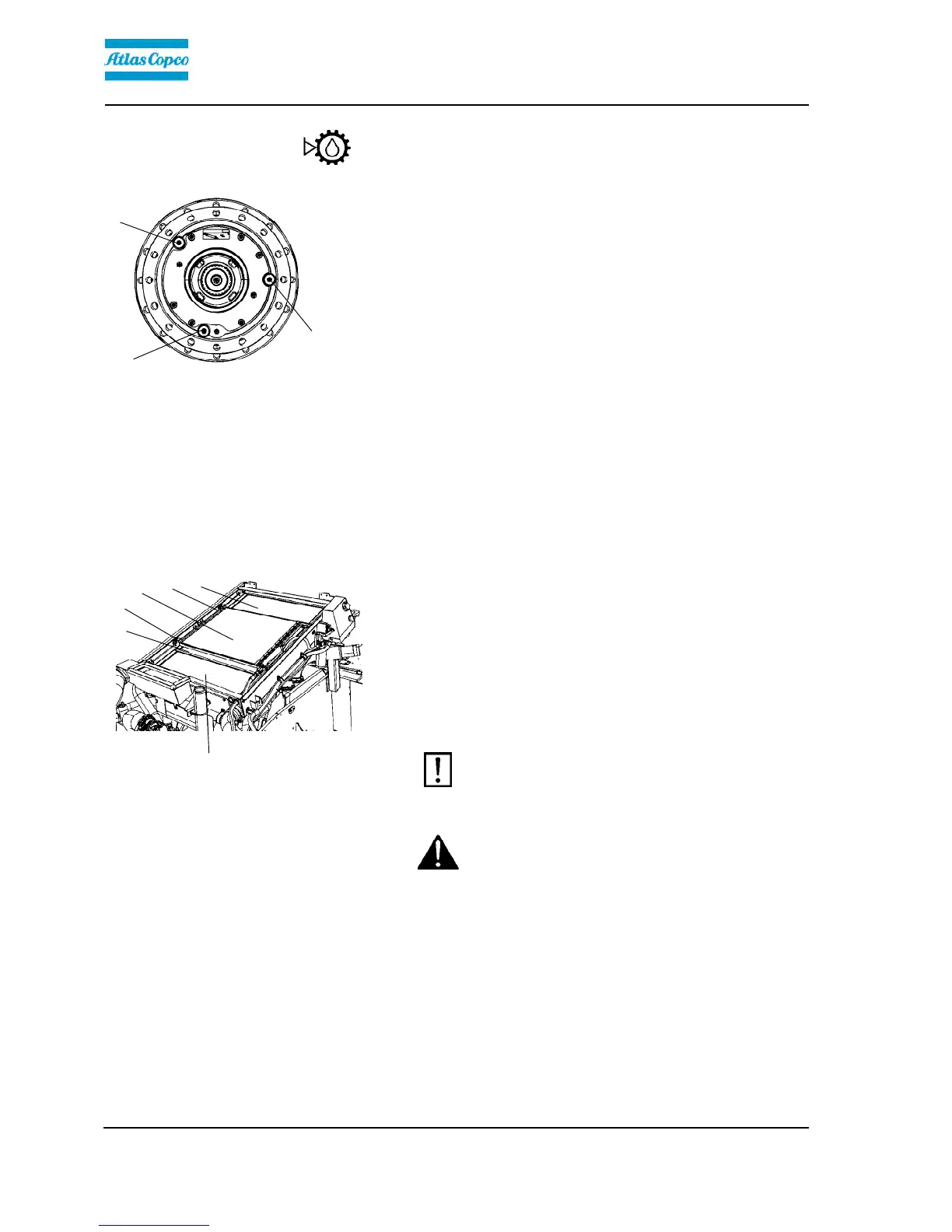

Fig. Oil level check - drum gearbox
1. Level plug
2. Filler plug
3. Drain plug
1
2
3
Wipe clean the area around the level plug (1) and then
undo the plug.
Ensure that the oil level reaches up to the lower edge
of the plug hole.
Top off with oil to the right level if the level is low. Use
transmission oil according to the lubricant specification.
Clean and refit the plugs.
Radiator - Check/Cleaning
Fig. Engine compartment
1. Water cooler
2. Charge air cooler
3. Hydraulic fluid cooler
4. Condenser element AC (Optional)
5. Screws (x 2)
1
2
3
4
5
5
Check that air can pass unobstructed through the
radiators (1), (2) and (3).
Clean a dirty radiator using compressed air or a
high-pressure water jet.
Undo the two screws (5) and tilt the condenser
element upwards.
Blow air or direct water through the cooler in the
opposite direction to that of the cooling air.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Wear protective goggles when working with
compressed air or high-pressure water jets.
Wear protective goggles when working with
compressed air or high-pressure water jets.
118
