Maintenance - 500 / 1500h
4812160101_A.pdf2014-07-04
Rear axle differential - Check oil level

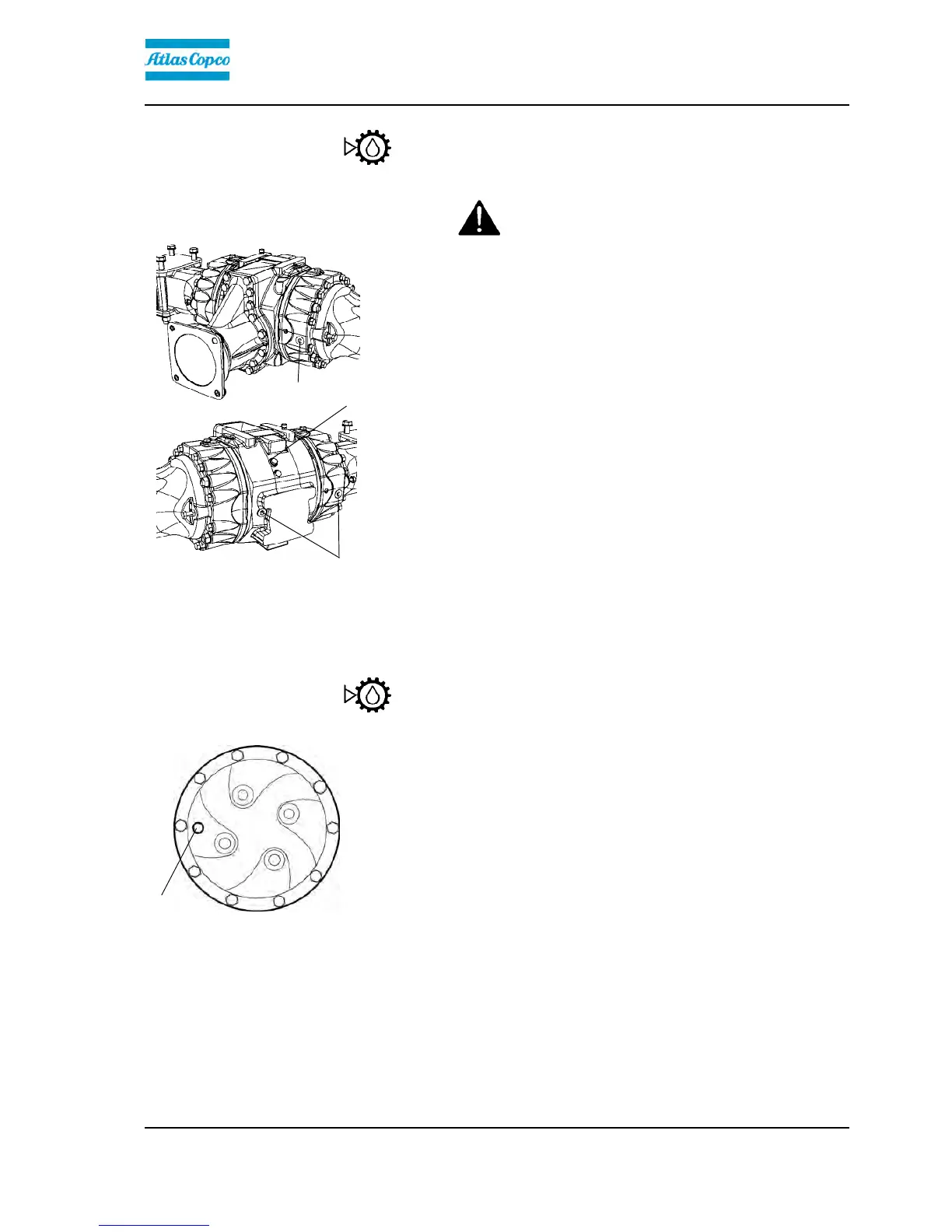

Fig. Level control - differential housing
1. Level plugs (x 3)
2. Filler plug
1
2
1
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the level plugs (1) and check
that the oil level reaches the lower edge of the plug
holes. The plugs can be found at the front or rear of
the rear axle.
At a low level, remove the filler plug (2) and top up
with oil to the correct level. Use transmission oil, see
lubricant specifications.
Clean and refit the plug.
Rear axle planetary gears - Check oil level
Fig. Level check - planetary gear
1. Level/Filler plug
1
Position the roller so that the level plug (1) in the
planetary gear is at "9 o'clock" or "3 o'clock".
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil. See lubrication specification.
Clean and refit the plug.
Check the fluid level in the same way on the rear
axle's other planetary gear.
