Maintenance - 500 / 1500h
4812160101_A.pdf2014-07-04

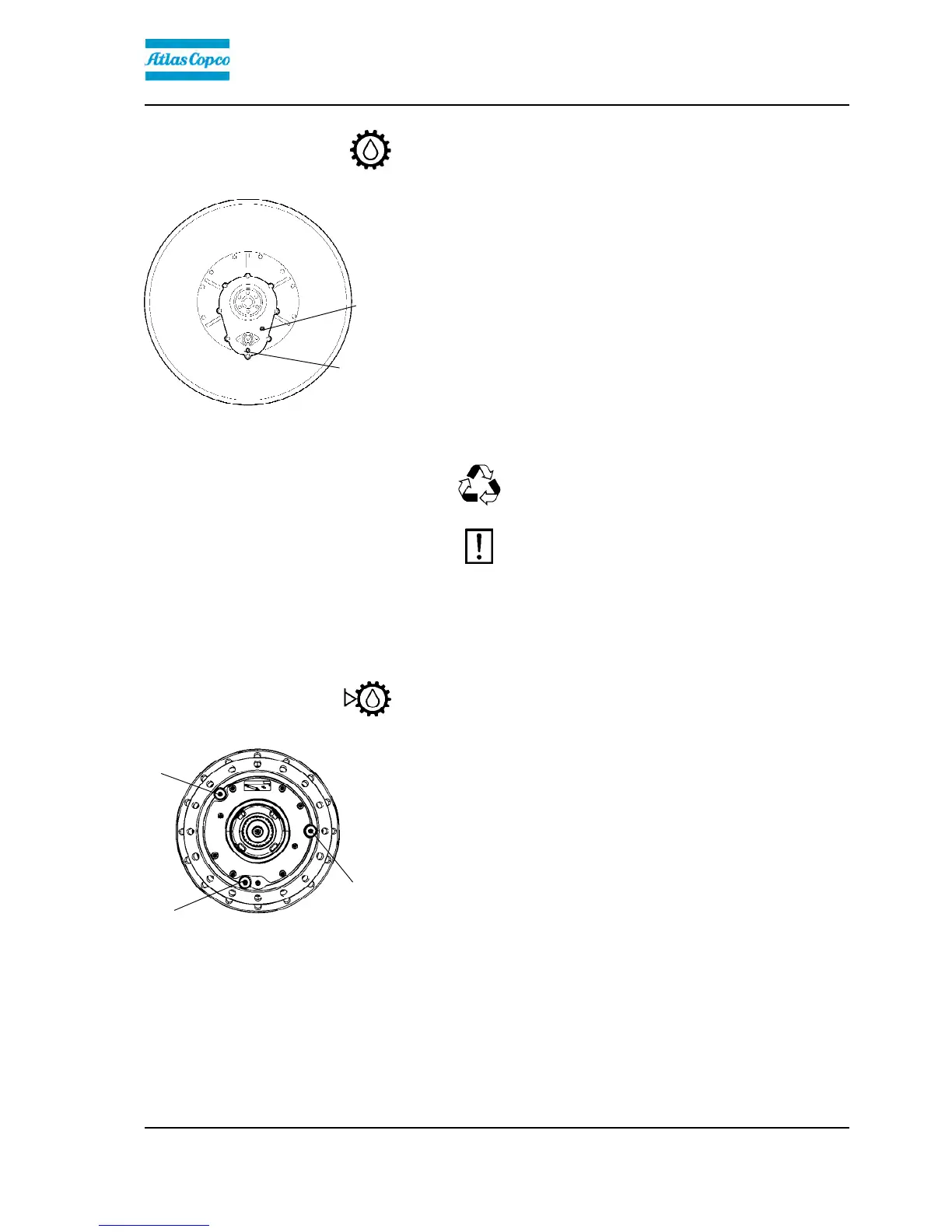

Fig. Gearbox - Drum, right side
1. Filler plug/Level plug
2. Drain plug
1
2
Gearbox - Oil change
Place the roller on a level surface.
Place a receptacle that holds at least 1 liter (0.3 gal))
under the drain plug (2).
Unscrew and clean the filler/level plug (1) and the
drain plug (2).
Allow all of the oil to drain off. Clean and refit drain
plug (2) and fill with oil up to filler/level plug (1). The
total volume of oil in the gearbox must be 0.3 liters
(0.08 gal).
Deliver the drain oil to environmentally correct
handling.
Deliver the drain oil to environmentally correct
handling.
Make sure to only use Dynapac Drum Oil 1000 in
the gearbox.
Make sure to only use Dynapac Drum Oil 1000 in
the gearbox.
Clean and refit filler/level plug (1).
Drum gearbox - Checking the oil level
Fig. Oil level check - drum gearbox
1. Level plug
2. Filler plug
3. Drain plug
1
2
3
Wipe clean the area around the level plug (1) and then
undo the plug.
Ensure that the oil level reaches up to the lower edge
of the plug hole.
Top off with oil to the right level if the level is low. Use
transmission oil according to the lubricant specification.
Clean and refit the plugs.
125
