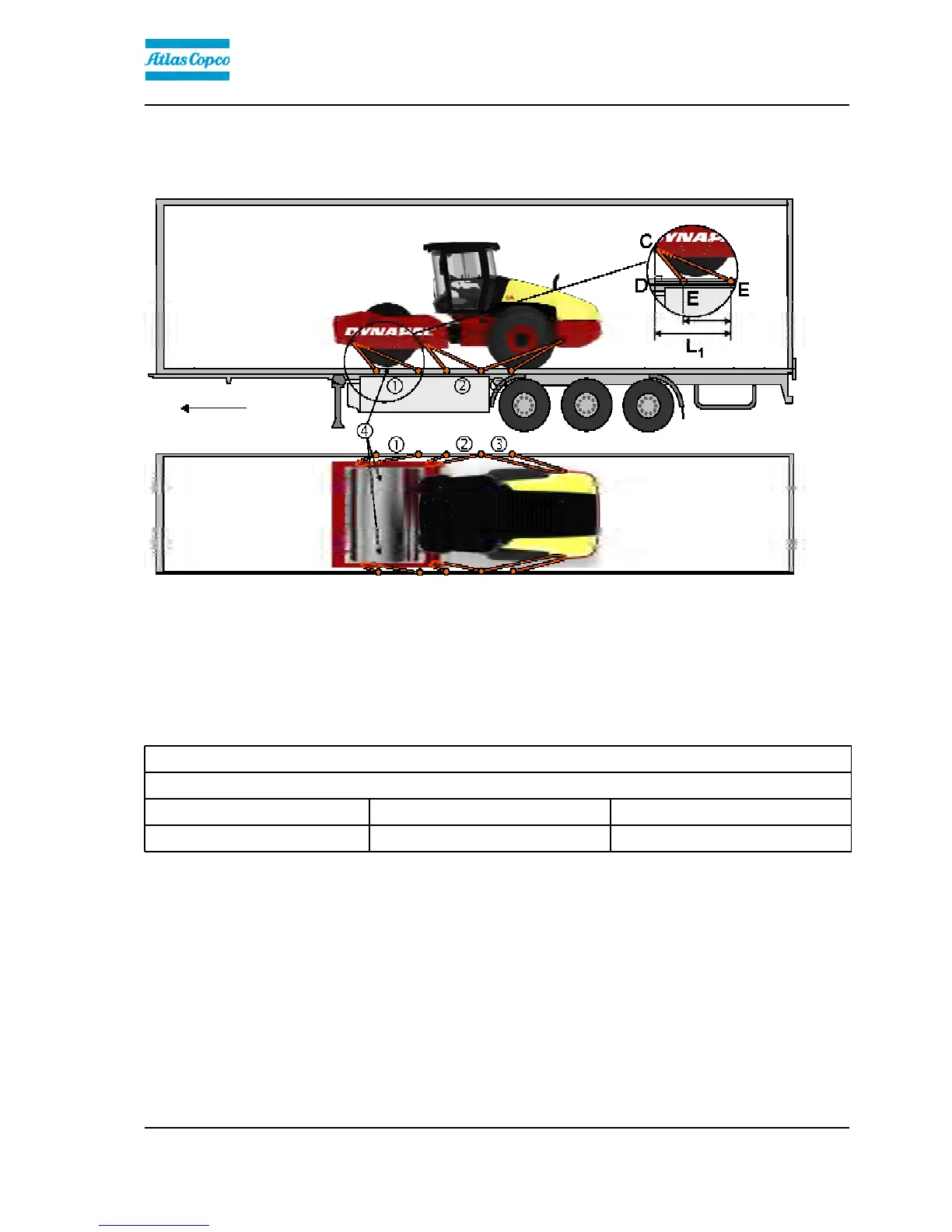

Securing CA1500-CA4600 for loading
Securing the CA1500-4600D/PD vibratory roller from
Dynapac for transport.
Direct of travel
Roller loaded in forward
direction
1 - 3 = double lashings, i.e. one lashing with two parts secured to two different lashing mounts,
symmetrically located on the right and left sides.
1 - 3 = double lashings, i.e. one lashing with two parts secured to two different lashing mounts,
symmetrically located on the right and left sides.
4 = rubber4 = rubber
The lashings' permitted distance interval in metersThe lashings' permitted distance interval in meters
(1 - 3: Double lashings, LC at least 1.7 tonnes (1700 daN), S
TF
300 kg (300daN))(1 - 3: Double lashings, LC at least 1.7 tonnes (1700 daN), S
TF
300 kg (300daN))
Double L
1
Double L
2
Double L
3
Double L
1
Double L
2
Double L
3
0,9 - 2,5 0,9 - 2,5 0,1 - 2,50,9 - 2,5 0,9 - 2,5 0,1 - 2,5
The distance L
1
above is between points D and E. D is the projected point directly at right angles laterally in relation to
the edge of the platform from the lashing mount C on the roller. E is the lashing mount at the edge of the platform. L
2
–
L
3
have a corresponding relationship.
The distance L
1
above is between points D and E. D is the projected point directly at right angles laterally in relation to
the edge of the platform from the lashing mount C on the roller. E is the lashing mount at the edge of the platform. L
2
–
L
3
have a corresponding relationship.
83
