Operation
4812160101_A.pdf2014-07-04
Braking
Normal braking
2
3
1

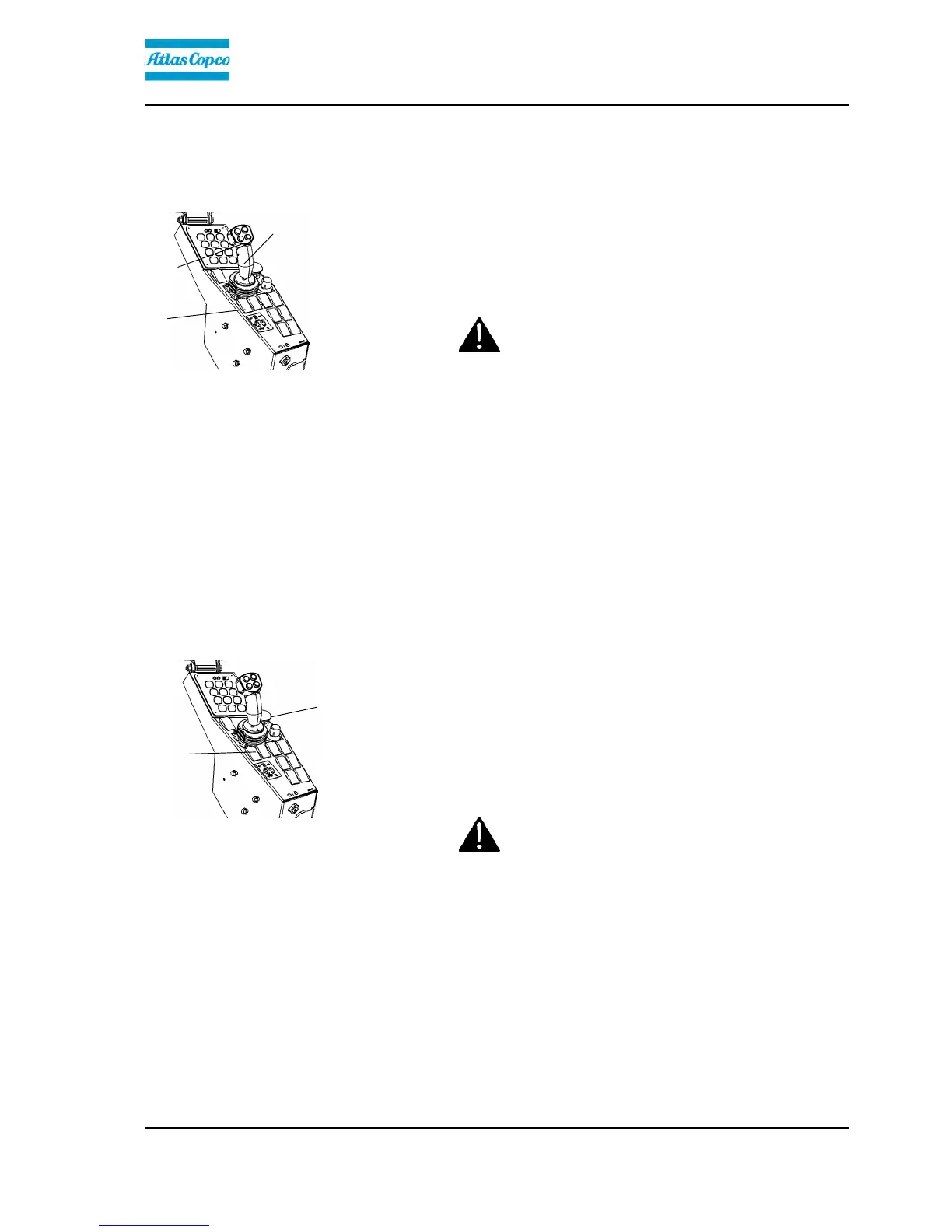

Fig. Control panel
1. Vibration On/Off switch
2. Forward/Reverse lever
3. Parking brake
Press the switch (1) to switch off the vibration.
Move the forward/reverse lever (2) to the neutral
position to stop the roller.
Always activate the parking brake (3), before leaving
the operator platform.
When starting and driving a machine that is cold,
remember that the hydraulic fluid is also cold and
that braking distances can be longer than normal
until the machine reaches the working temperature.
When starting and driving a machine that is cold,
remember that the hydraulic fluid is also cold and
that braking distances can be longer than normal
until the machine reaches the working temperature.
If the forward/reverse lever is moved quickly (forwards
or backwards) toward/past neutral, the system
switches to a rapid braking Mode and the machine
stops.
Activate normal driving Mode again by moving the
forward/reverse lever back to neutral.
Emergency braking
2
1
Fig. Control panel
1. Emergency stop
2. Parking brake
Braking is normally activated using the
forward/reverse lever. The hydrostatic transmission
retards and slows the roller when the lever is moved
towards the neutral position.
A disc brake in each drum motor/drum gear and the
rear axle also acts a secondary brake when in motion,
and as a parking brake when stationary. Activated with
the parking brake (2).
For emergency braking, press the emergency stop
(1), hold the steering wheel firmly and be prepared
for a sudden stop. The engine stops.
For emergency braking, press the emergency stop
(1), hold the steering wheel firmly and be prepared
for a sudden stop. The engine stops.
The Diesel engine will stop and must be restarted.
After emergency braking, return the forward/reverse
lever to neutral and deactivate the emergency stop.
71
