Machine description
4812160101_A.pdf2014-07-04

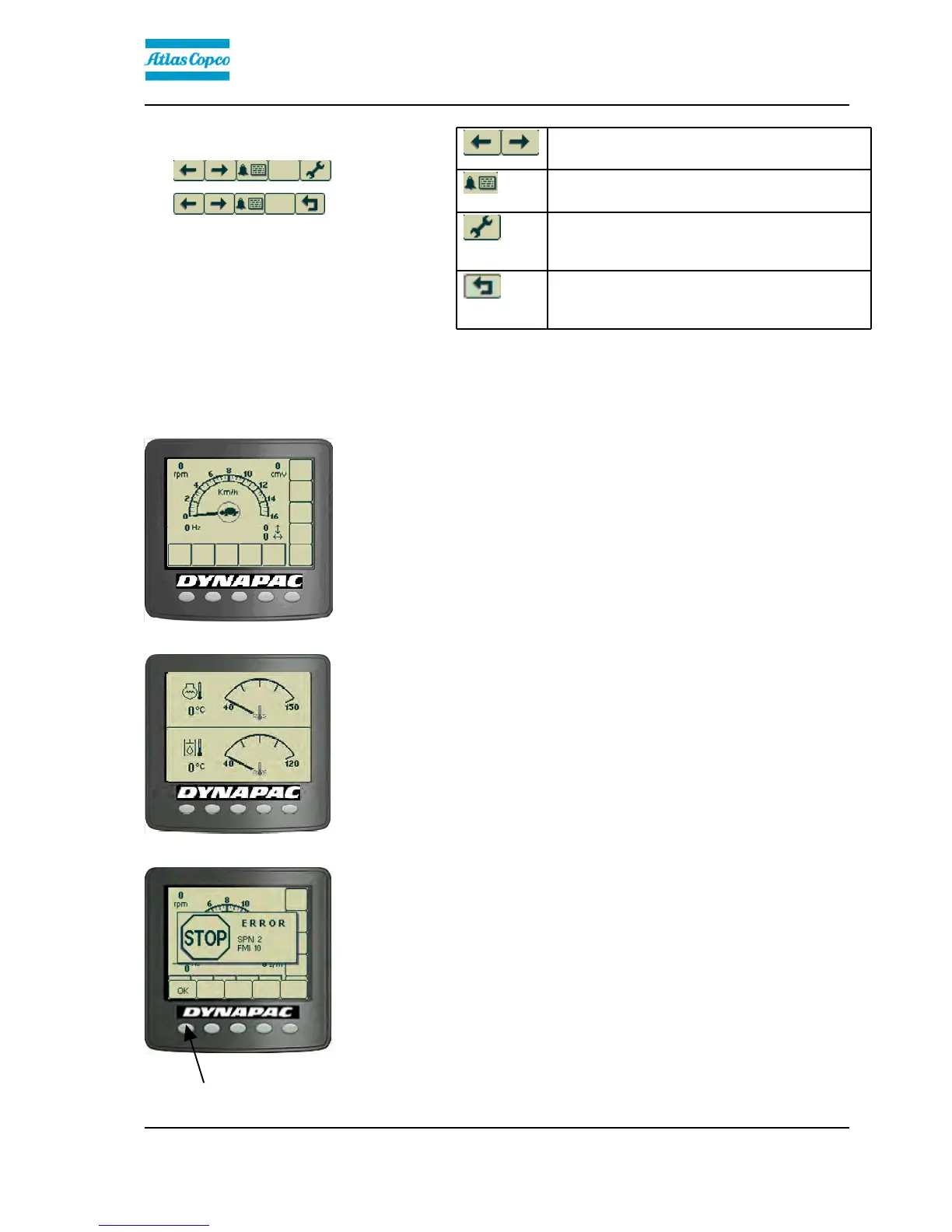

Example of menu field.
Scroll/Selection buttons to choose
between available functions.
Scroll/Selection buttons to choose
between available functions.
Alarm log button to display engine and
machine alarms.
Alarm log button to display engine and
machine alarms.
Settings/Button select menu, which opens
the main menu. Settings can be changed
in the main menu.
Settings/Button select menu, which opens
the main menu. Settings can be changed
in the main menu.
Exit/Return button returns 1 step at once.
Pressing the button (approx. 2 sec.)
displays the main menu again.
Exit/Return button returns 1 step at once.
Pressing the button (approx. 2 sec.)
displays the main menu again.
Fig. Speed diagram
The speed diagram shows the speed in the middle of
the diagram. (km/h or mph)
The engine speed, vibration frequency, cmv value for
compaction meter and gradient value in % (optional),
are shown in the corners.
Fig. Temperature screen
The temperature screen shows the temperature of the
engine (top of display) and hydraulic fluid (bottom of
display). The values are shown in Celsius or
Fahrenheit, depending on the choice of unit system.
When an engine alarm is activated, the alarm is shown
on the display.
The engine alarm is sent out from the engine ECM,
which handles the monitoring of the engine functions.
The message, which consists of an SPN and FMI
code, can be interpreted via the engine supplier error
code list.
The alarm message shown is acknowledged by
pressing the "OK" button on the display.
37
