Maintenance - 50h
4812160101_A.pdf 2014-07-04

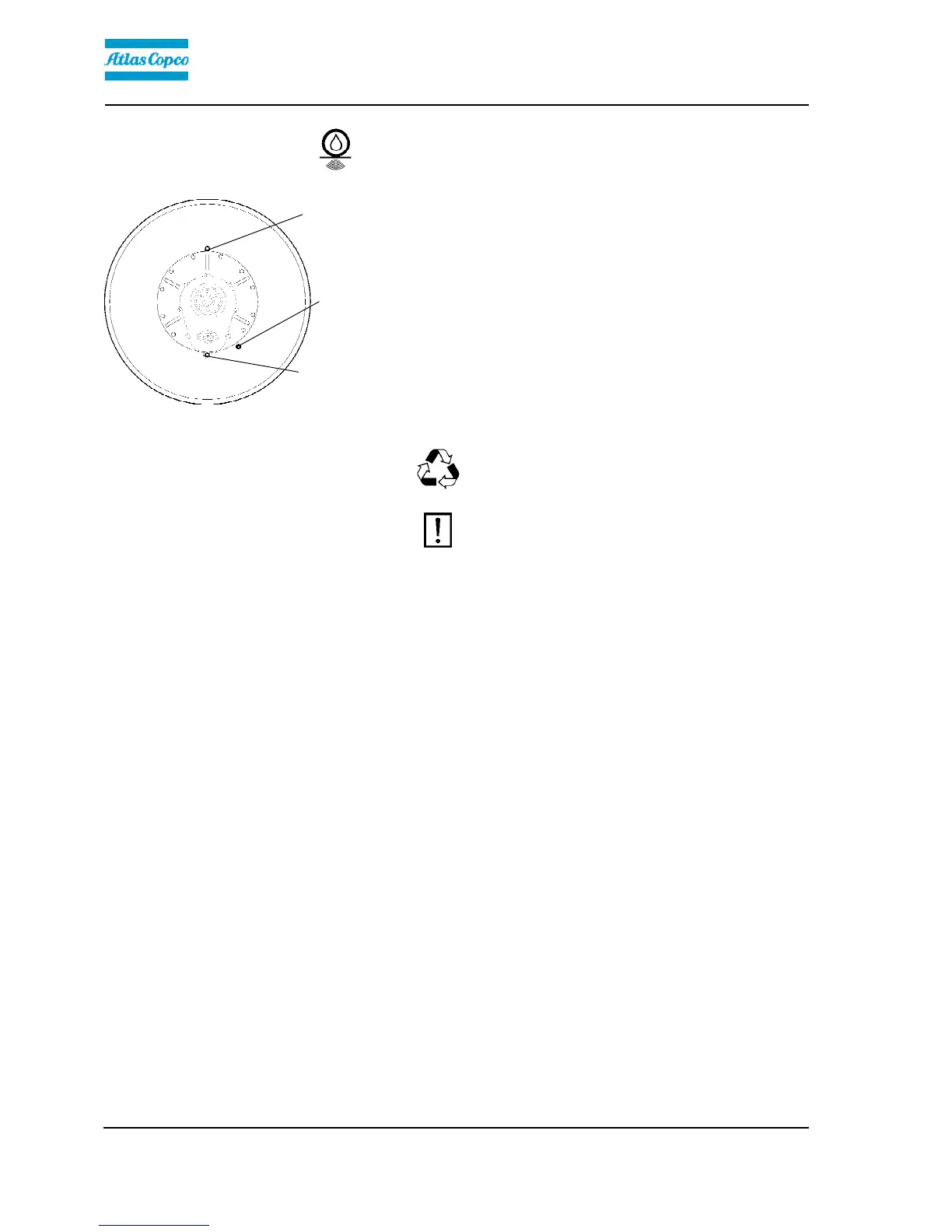

Fig. Drum, right side
1. Filler plug
2. Level glass
3. Drain plug
1
2
3
Drum - Oil change
Ensure that the drum's plugs and level glass are
positioned as in Fig 2.
Place a vessel capable of holding at least 20 liters (5.3
gal) under drain plug (3).
Remove and clean filler plug (1) and drain plug (3).
Allow all the oil to drain out. Clean and refit drain plug
(3) and fill with new synthetic oil. The total volume of
oil in the drum must be 15 liters (4.0 gal).
Deliver the drain oil to environmentally correct
handling.
Deliver the drain oil to environmentally correct
handling.
Make sure to only use Dynapac Drum Oil 1000 in
the drum.
Make sure to only use Dynapac Drum Oil 1000 in
the drum.
Clean and refit filler plug (1).
