314

2467S–AVR–07/09

ATmega128

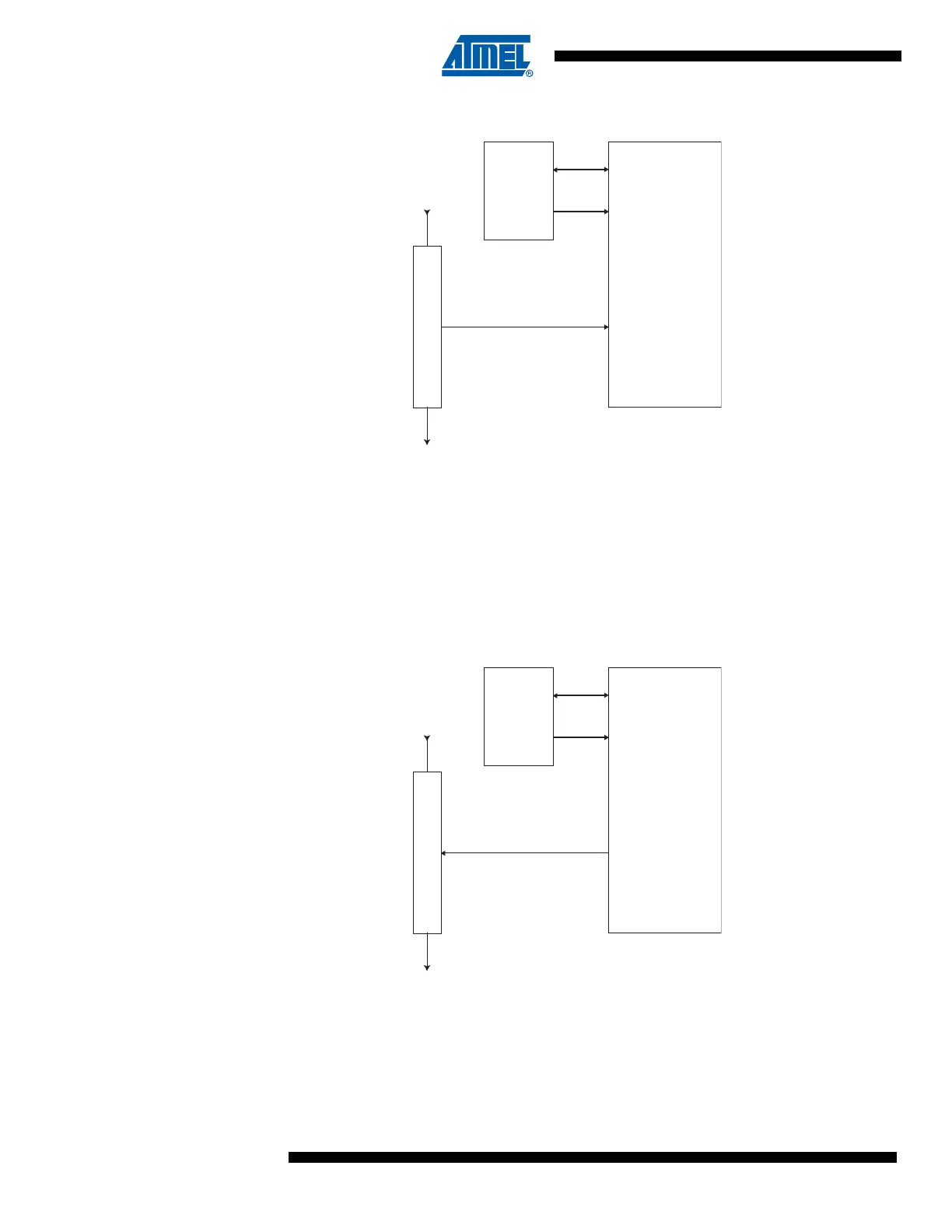

Figure 150. Virtual Flash Page Load Register

Virtual Flash Page

Read Register

The Virtual Flash Page Read Register is a virtual scan chain with length equal to the number of

bits in one Flash page plus 8. Internally the Shift Register is 8-bit, and the data are automatically

transferred from the Flash data page byte by byte. The first eight cycles are used to transfer the

first byte to the internal Shift Register, and the bits that are shifted out during these 8 cycles

should be ignored. Following this initialization, data are shifted out starting with the LSB of the

first instruction in the page and ending with the MSB of the last instruction in the page. This pro-

vides an efficient way to read one full Flash page to verify programming.

Figure 151. Virtual Flash Page Read Register

Programming

Algorithm

All references below of type “1a”, “1b”, and so on, refer to Table 130.

TDI

TDO

Flash

EEPROM

Fuses

Lock Bits

STROBES

ADDRESS

State

machine

TDI

TDO
