Atmel ATmega128 User Manual

340
2467S–AVR–07/09
ATmega128

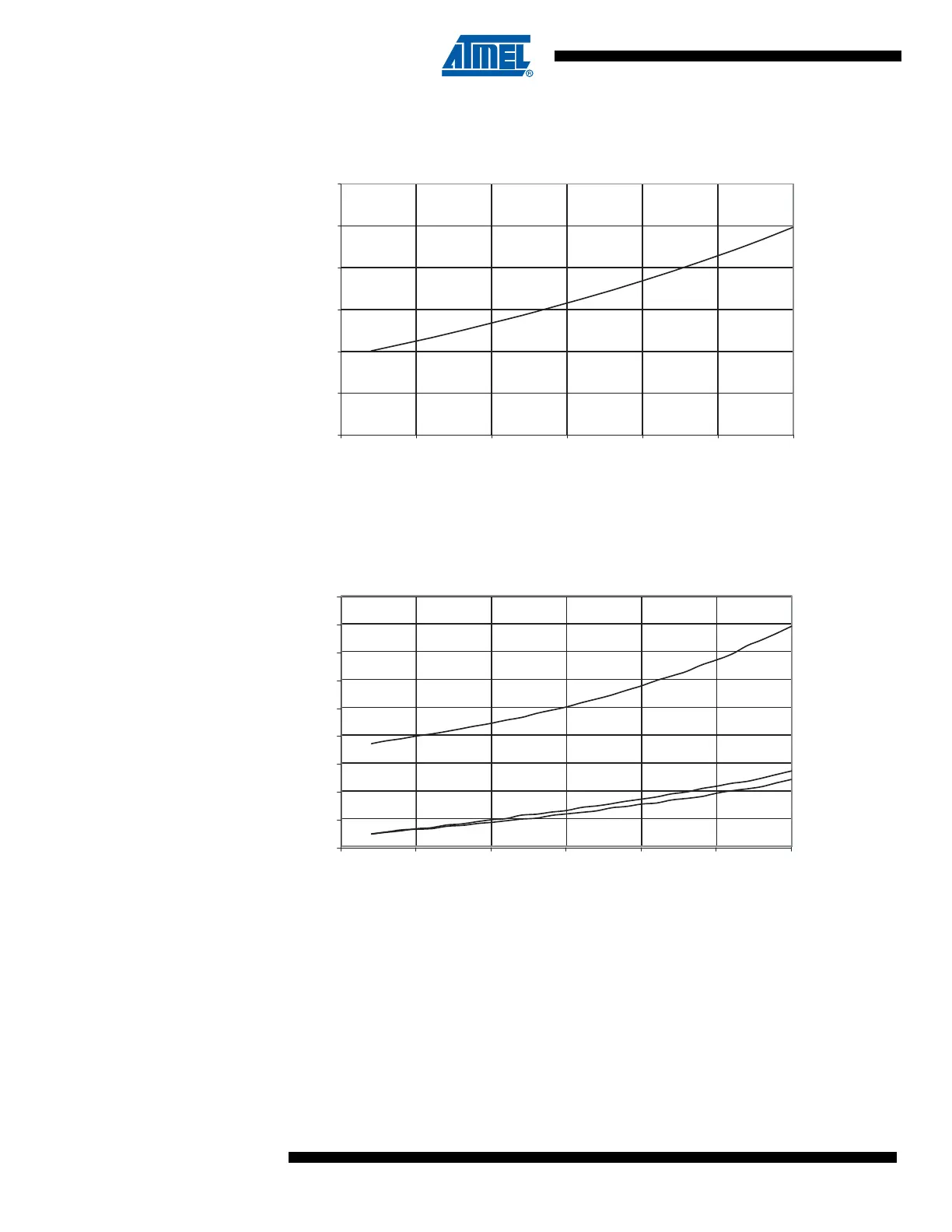

Figure 174. Idle Supply Current vs. V
CC
(32 kHz External Oscillator)
Power-down Supply
Current
Figure 175. Power-down Supply Current vs. V
CC
(Watchdog Timer Disabled)
IDLE SUPPLY CURRENT vs. V
CC
32 kHz EXTERNAL OSCILLATOR
25 °C
0
10
20
30
40
50
60
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
POWER-DOWN SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED
85 ˚C
25 ˚C
-40 ˚C
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
