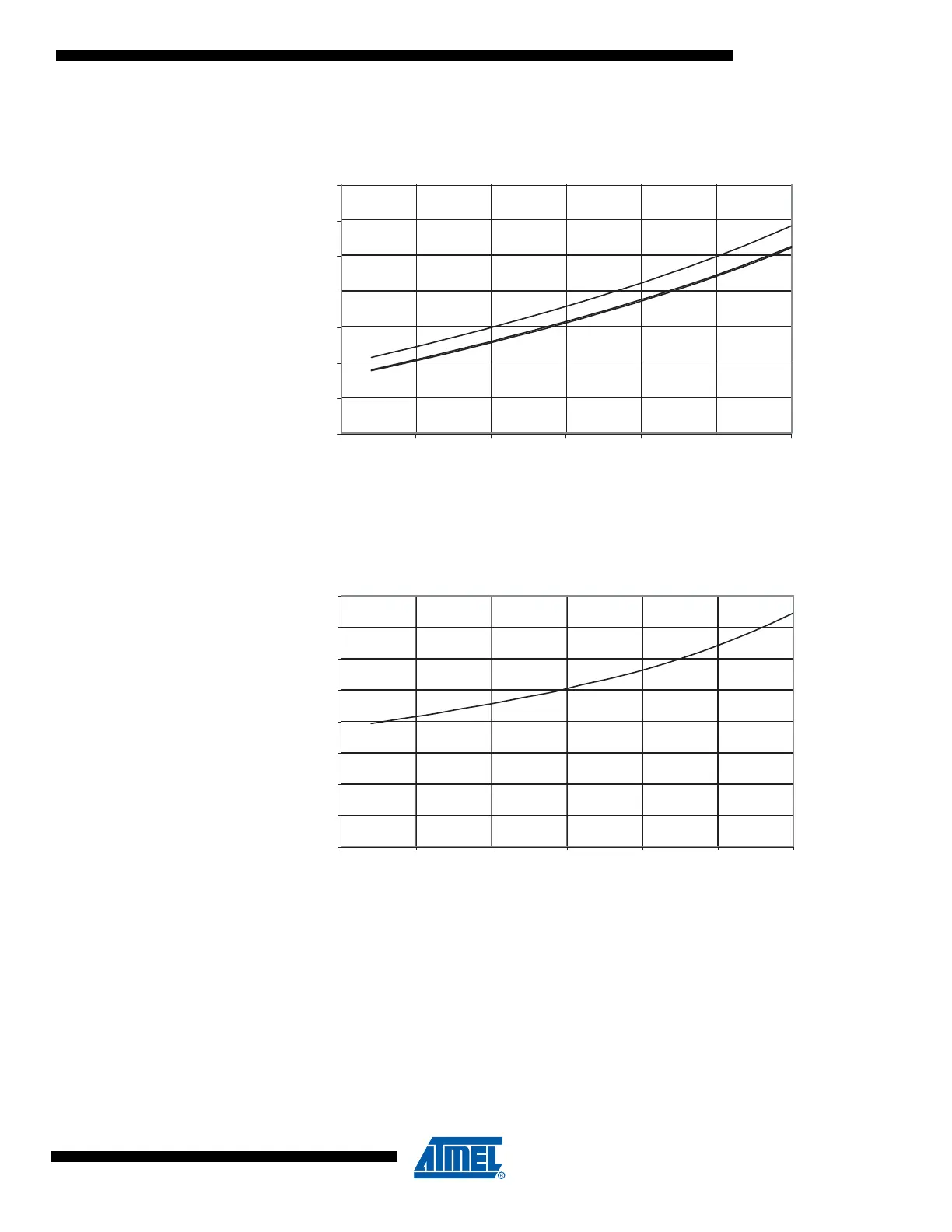

Figure 176. Power-down Supply Current vs. V
CC
(Watchdog Timer Enabled)
Power-save Supply
Current
Figure 177. Power-save Supply Current vs. V
CC
(Watchdog Timer Disabled)
POWER-DOWN SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER ENABLED
85 ˚C
25 ˚C
-40 ˚C
0
5
10
15
20
25
30
35
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
POWER-SAVE SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED
25 °C
0
2
4
6
8
10
12
14
16
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
