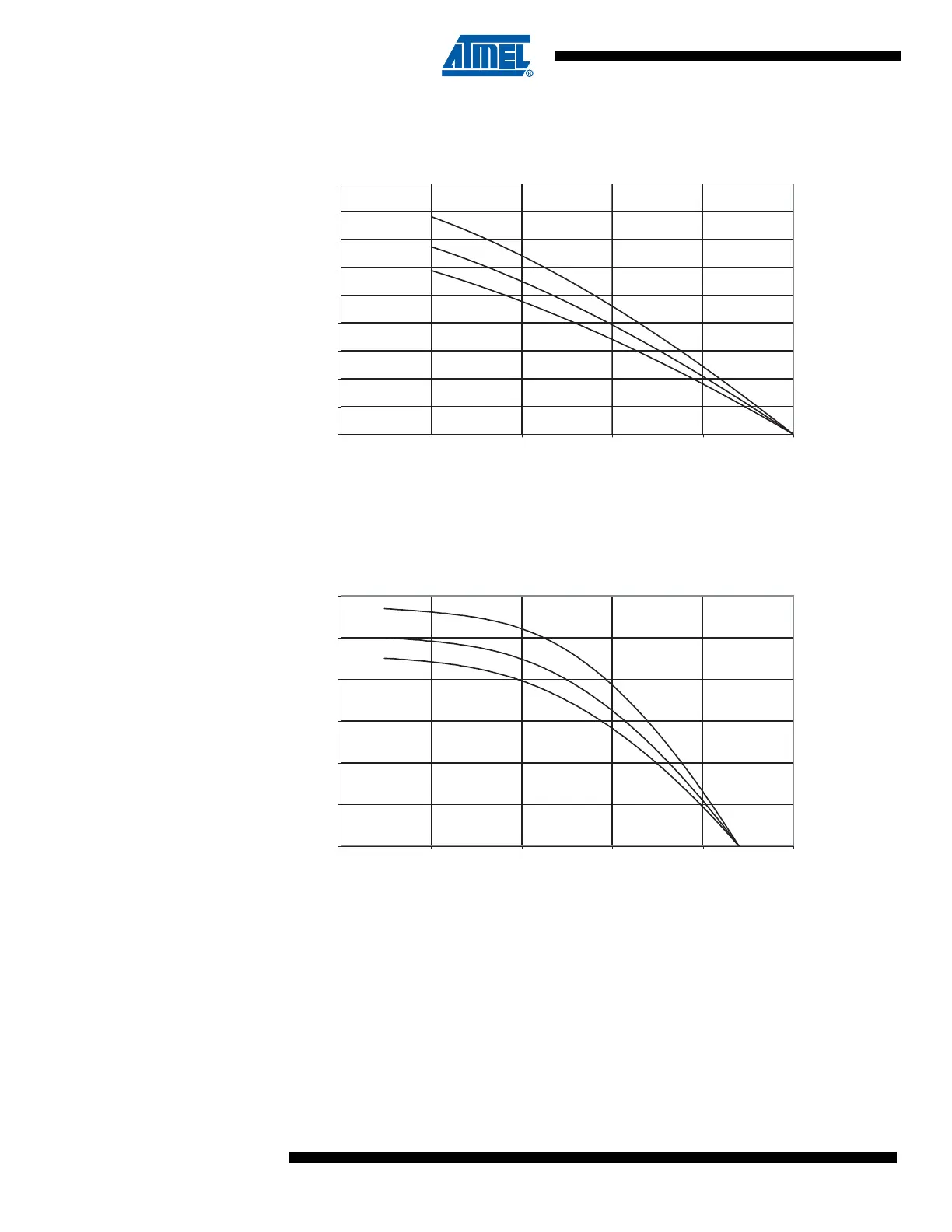

Pin Driver Strength Figure 182. I/O Pin Source Current vs. Output Voltage (V
CC
= 5V)
Figure 183. I/O Pin Source Current vs. Output Voltage (V
CC
= 2.7V)
I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE
V
CC
= 5V
85 °C
25 °C
-40 °C
0
10
20
30
40
50
60
70
80
90
2.5 3 3.5 4 4.5 5
V
OH
(V)
I
OH
(mA)
I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE
V
CC
= 2.7V
85 °C
25 °C
-40 °C
0
5
10
15
20
25
30
0.5 1 1.5 2 2.5 3
V
OH
(V)
I
OH
(mA)
