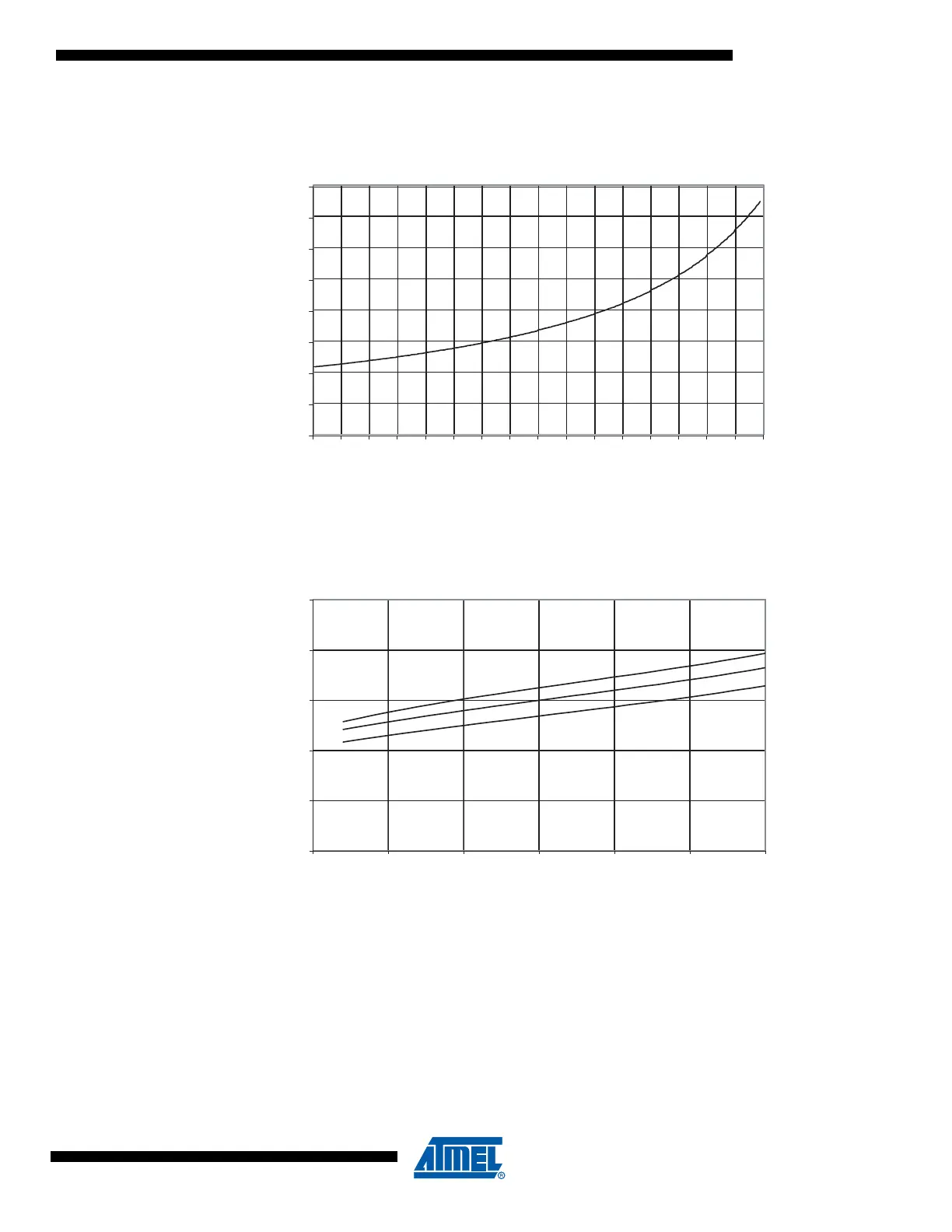

Figure 204. 8 MHz RC Oscillator Frequency vs. Osccal Value
Current Consumption
of Peripheral Units
Figure 205. Brownout Detector Current vs. V
CC
8MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE
25 °C
0
2
4
6
8
10
12
14
16
0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240 256
OSCCAL VALUE
F
RC
(MHz)
BROWNOUT DETECTOR CURRENT vs. V
CC
85 °C
25 °C
-40 °C
0
5
10
15
20
25
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
