4
The power LED displays green or red depending on power level and operating state:
A. Green
⚫ Flashes green when the tablet is charging.
⚫ Illuminates green when the tablet is fully charged.
B. Red
⚫ Illuminates red when a problem is detected.

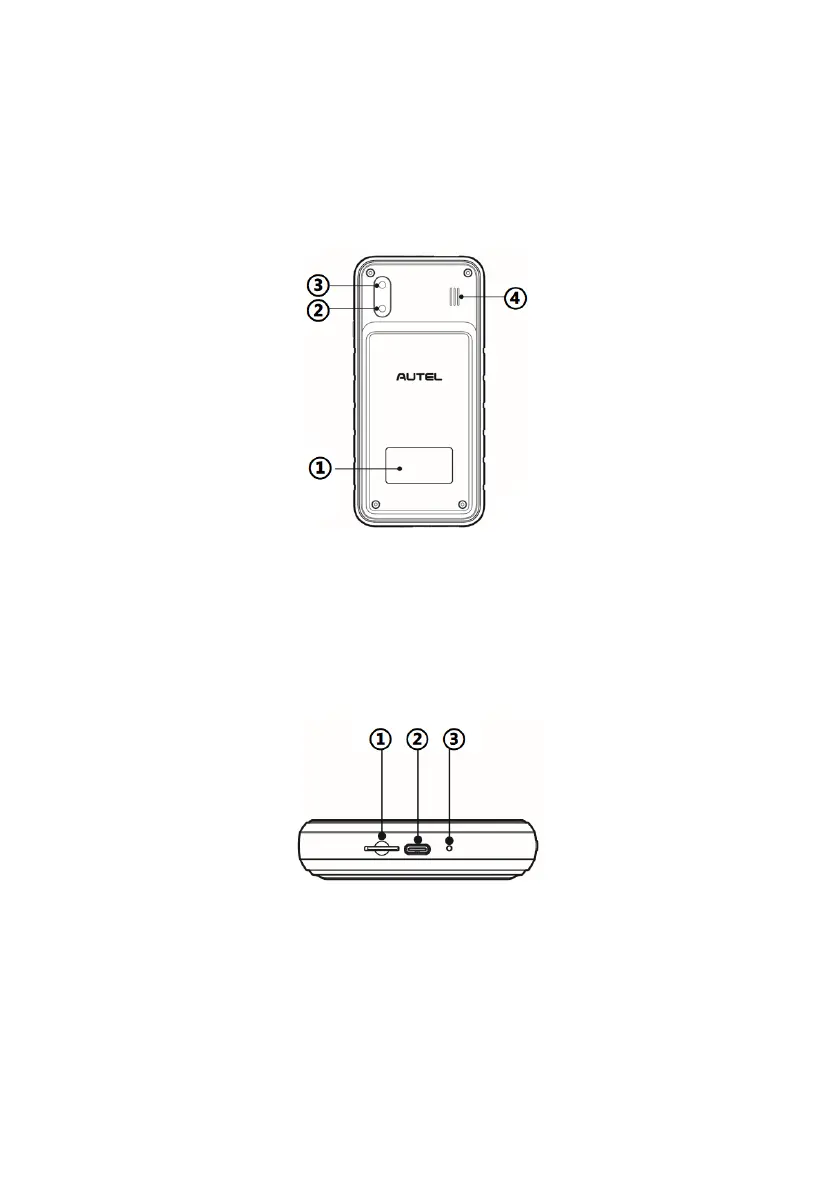

Figure 2-2 MaxiTPMS Tablet Back View
1. Sticker
2. Rear Camera
3. Camera Flash
4. Speaker
Figure 2-3 MaxiTPMS Tablet Top View
1. Micro SD Card Slot
2. Type-C USB OTG Port
3. Microphone
