6 Battery Test
The BT506 is a battery and electrical system analysis tool that uses Adaptive
Conductance, an advanced battery analysis method to produce a more accurate
examination of the battery’s cold cranking ability and reserve capacity, vital to
determining a battery’s true health. The BT506 enables technicians to view the health
status of the vehicle’s battery and electrical system. Together with the BT506, this
application can complete battery & starting and charging system tests and display the
test results.
6.1 MaxiBAS BT506 Battery Tester
6.1.1 Function Description

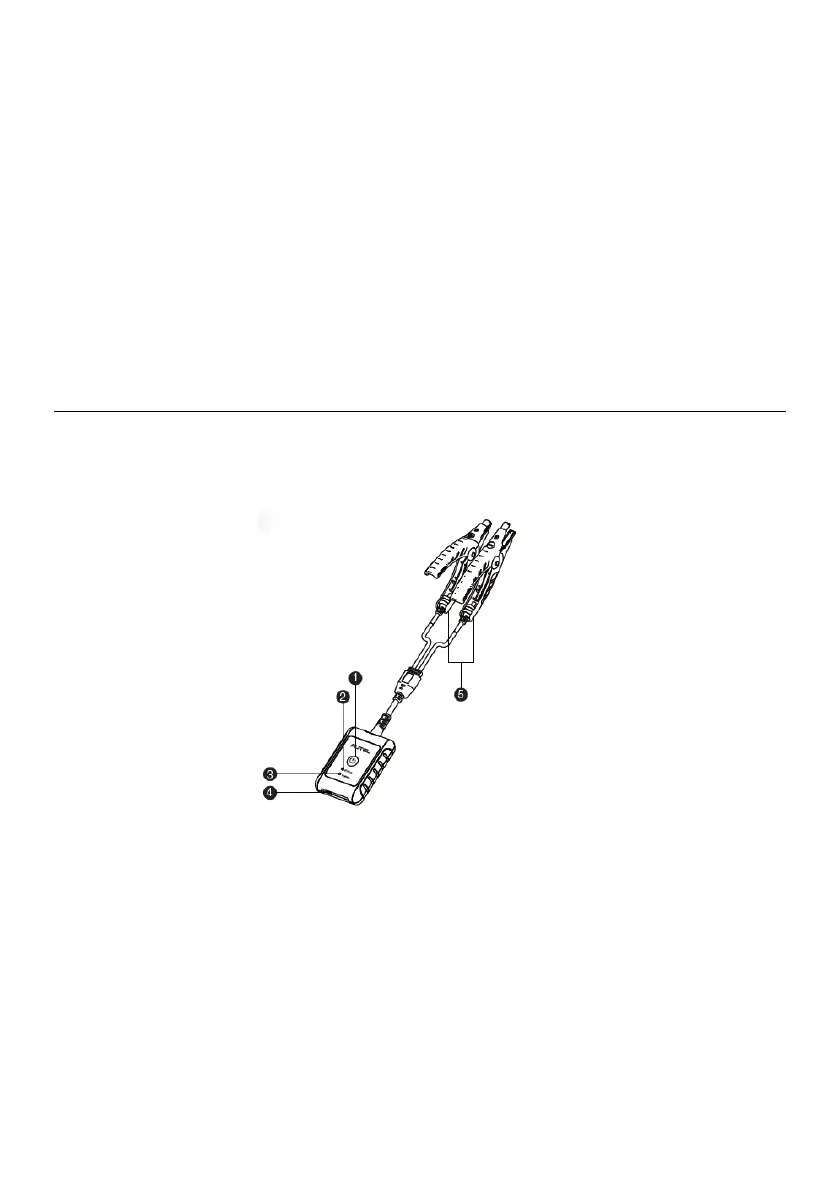

Figure 6-1 MaxiBAS BT506 Battery Tester
1. Power Button
2. Status LED
3. Power LED
4. USB Port
5. Battery Clamp Cable
