85
position with the engine off.
➢ To erase codes
1. Tap Erase Codes from the Function Menu.
2. A warning message displays to advice of data loss if this function is completed.
a) Tap Yes to continue. A confirming screen displays when the operation is
successfully done.
b) Tap No to go back to the Function menu.
3. Tap ESC on the function menu to exit Erase Codes.
4. Perform the Read Codes function again to check if the code has been erased
successfully.
8.4.4 Live Data
When this function is selected, the screen displays the data list for the selected module.
The items available for any control module vary depending on vehicle. The parameters
display in the order that they are transmitted by the ECM, so expect variation between
vehicles.
Gesture scrolling allows for quick movement through data list. Using one or two fingers,
simply swipe the screen up or down to locate the data you want. The figure below shows
a typical Live Data screen.

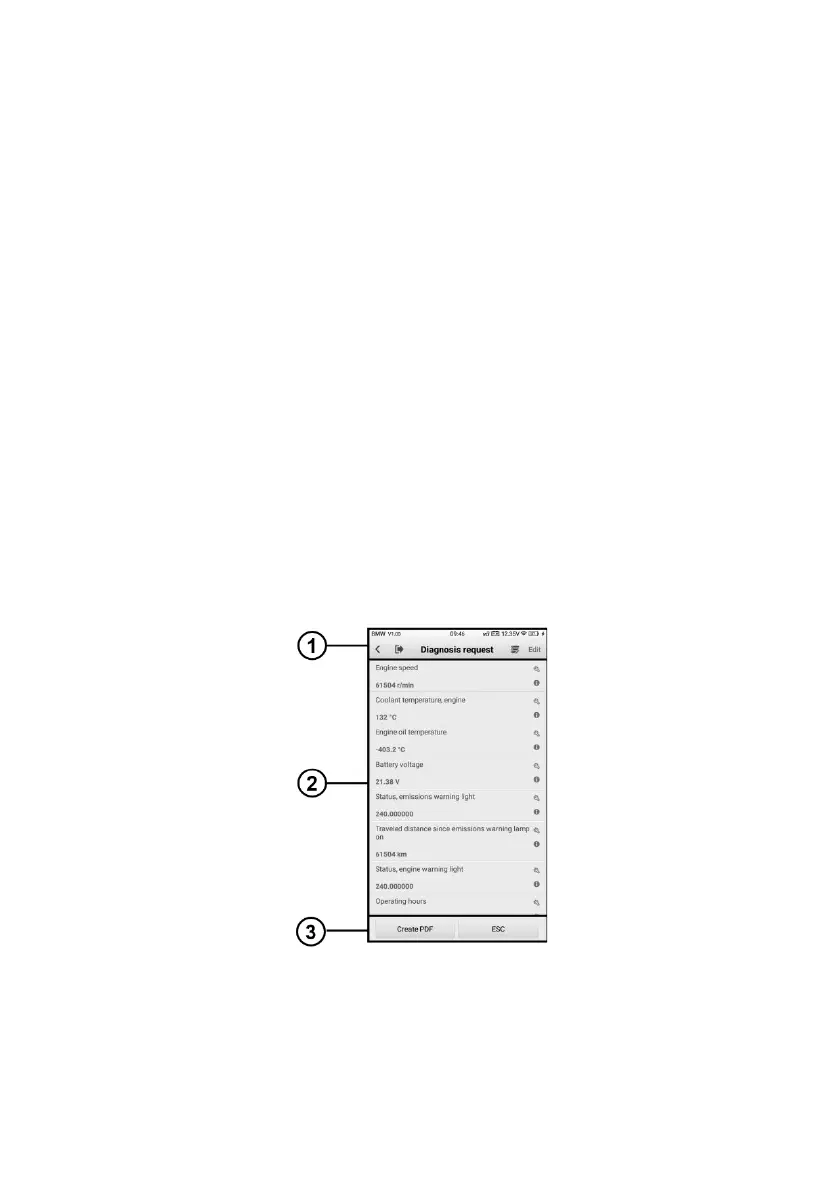

Figure 8-13 Live Data Screen
