6.3.3 Generator Test
➢ To perform the generator test
1. Tap Continue. Perform required operations based on the on-screen instructions.
2. Tap Continue and view the test results.

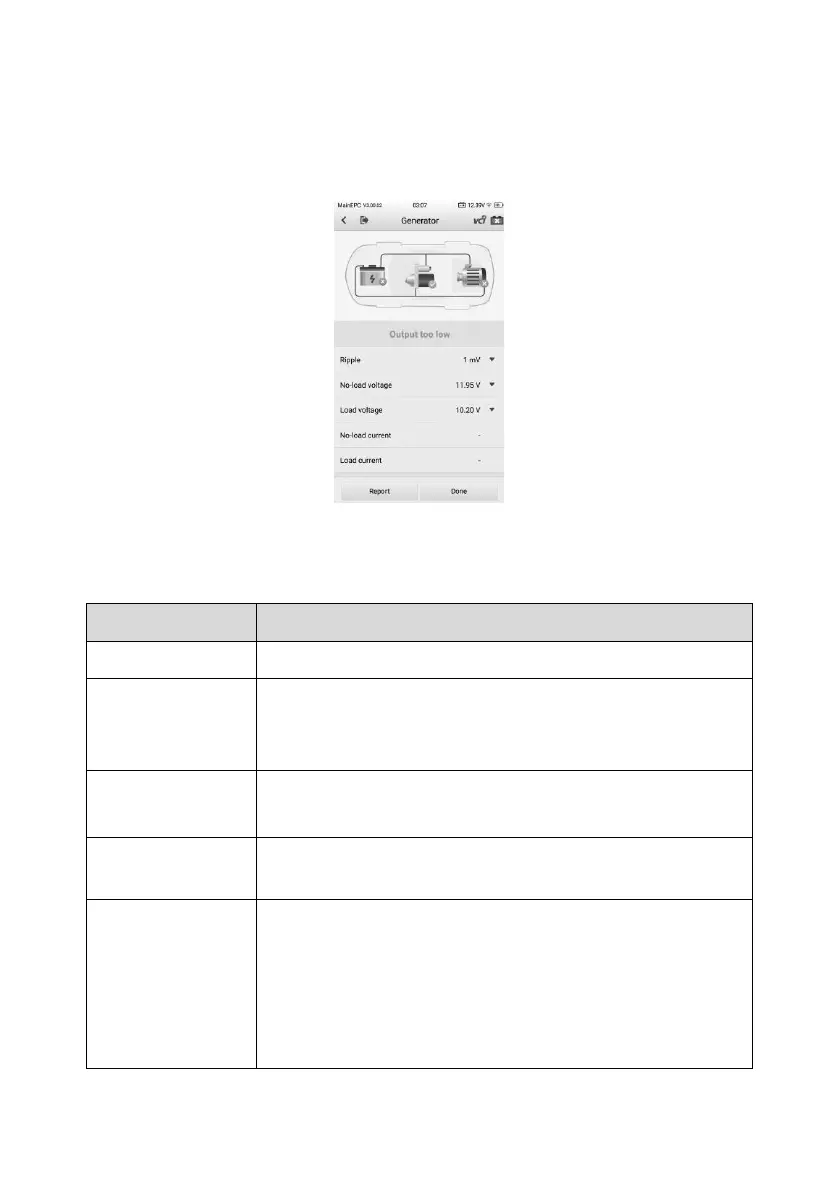

Figure 6-12 Generator Test Result Screen
Table 6-5 Generator Test Results
Result
Description
Charging Normal
The generator is good.
Output Too Low
⚫ The belt linking the starter and the generator is loose;
⚫ The cable linking the starter and battery is loose or
corroded.
Output Too High
⚫ The generator is not properly connected to the ground;
⚫ The voltage adjuster is broken and needs replacement.
Ripple Too Large
The commutation diode is broken and needs repair or
replacement.
No Output
⚫ The cable is loose;
⚫ Some vehicles with power management systems do not
provide a path for charging due to the sufficient load
capacity of the battery;
⚫ The generator or the voltage adjuster is broken and
needs replacement.
