Protector Overview
AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339-4, 2022-12-09,
Autronica Fire and Security AS
Page 18

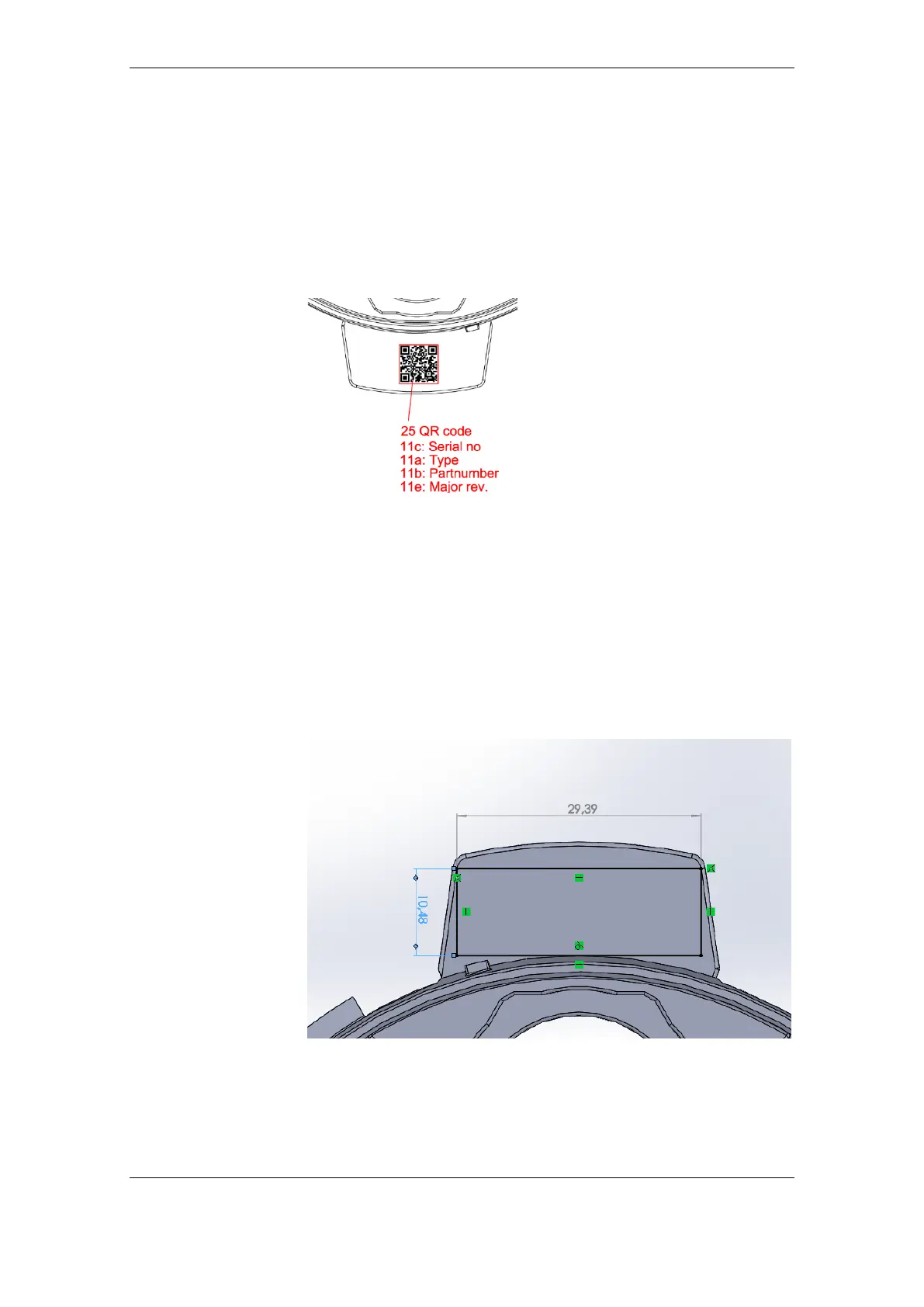

3.4.3 Data Matrix Code Placement on Protector Base’s Tagholder
From the factory, a data matrix code is laser engraved on the
protector base’s tagholder. The code contains information on the
part number, version, serial number and type (the data matrix code
shown in the illustration is an example used only for the purpose of
indicating the placement of the code).
3.5 Tag Holder for Labels
During installation and commissioning, a label containing a tag
number (customer specified) is to be placed on the tag holder
(covering the data matrix code).
The maximum size of the label is 29 x 10 mm (as shown below).
