Autronica AutroGuard Multicriteria Protector V-430 Series User Manual

Mounting Instructions
AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339-4, 2022-12-09,
Autronica Fire and Security AS
Page 64
9.5 Mounting the Protector onto the base
Note that when mounting the protector onto the base, only the
bayonet ring is to be turned (not the protector itself).

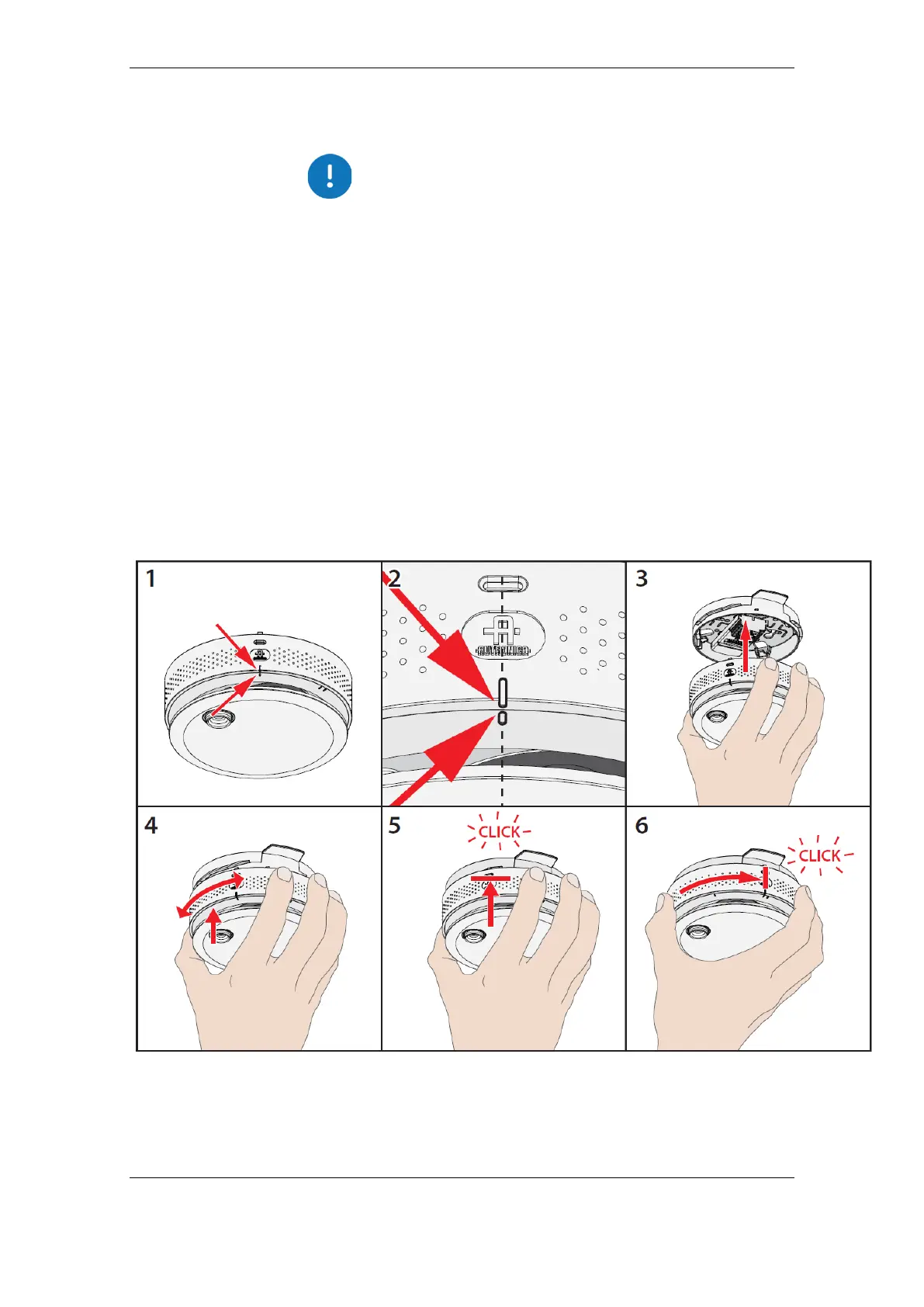

Consult the pictures (1-6) below and do as follows:
1. Before mounting, the alignment mark on the bayonet ring
should be aligned with the alignment mark on the protector
2. See close up picture of the alignment marks
3. Move the protector towards the base
4. Gently press the protector upwards and turn the rotatable
bayonet ring in either direction
5. You will hear a click when the protector is in its position to be
fastened
6. Turn the protector clockwise until it is properly fastened (a
click will be heard), and make sure that the alignment marks
are aligned as shown
