Mounting Instructions
AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339-4, 2022-12-09,
Autronica Fire and Security AS
Page 55
9.2.6 Mounting for Surface-mounted Wiring
• Locate the knockouts that are sized to fit the desired cable
dimension
• Use a plier to gently remove the knockouts for the chosen cable
entries
• Mark and drill the necessary holes as decribed in chapter 9.2.2
• Mount the protector base to the ceiling by fastening the screws

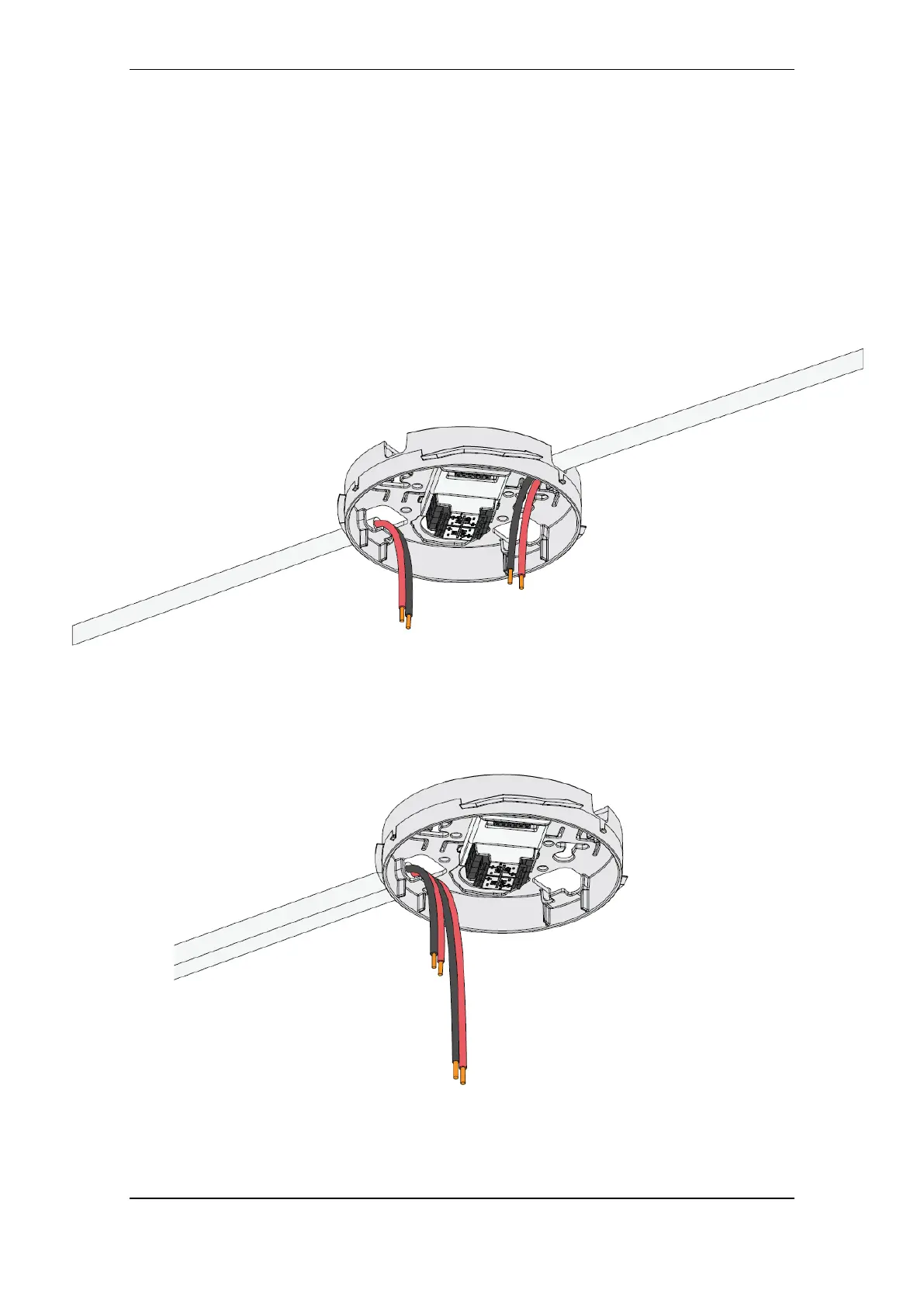

• Feed the cables through the cable entries as shown (the
illustrations show two different cable layout alternatives)
