Mounting Instructions
AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339-4, 2022-12-09,
Autronica Fire and Security AS
Page 59
9.3.4 Spring Cage Connection

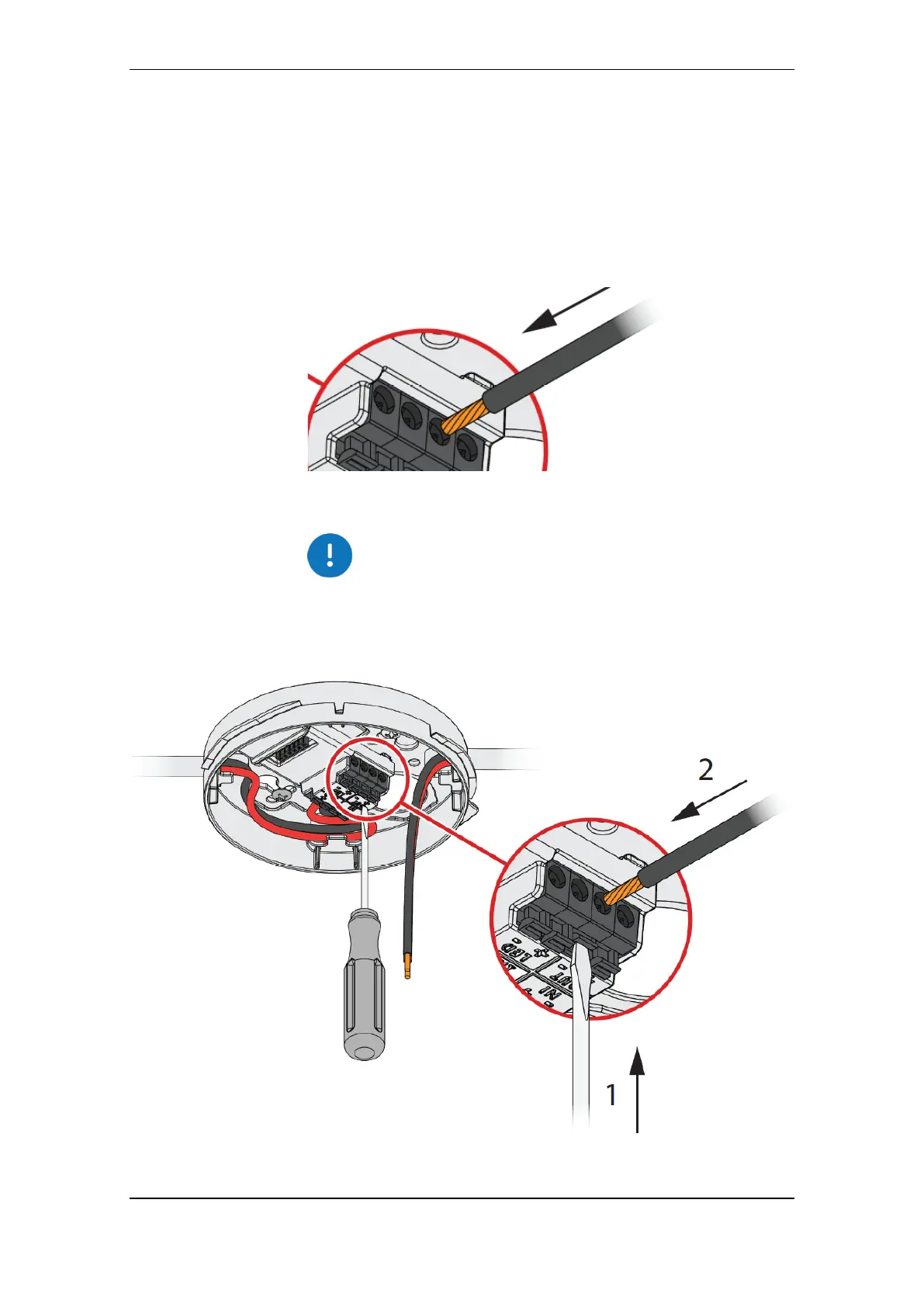

The connectors are “push-in” type (spring-cage connection), and do
not require tools for stiff cables with larger cross section
(> 0,5mm² and up to a maximum of 2,5mm²).
• Insert the cable straight towards and into the connector
• Verify that the cable is properly connected
To ensure proper connection of loop cables that are 0,5mm² or less,
make sure to push the connector lever fully down with a small
screwdriver before inserting the cable.
