Mounting Instructions
AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339-4, 2022-12-09,
Autronica Fire and Security AS
Page 51
9.2.3 Mounting for Concealed Conduit Wiring
• Mark and drill the necessary holes as decribed in chapter 9.2.2

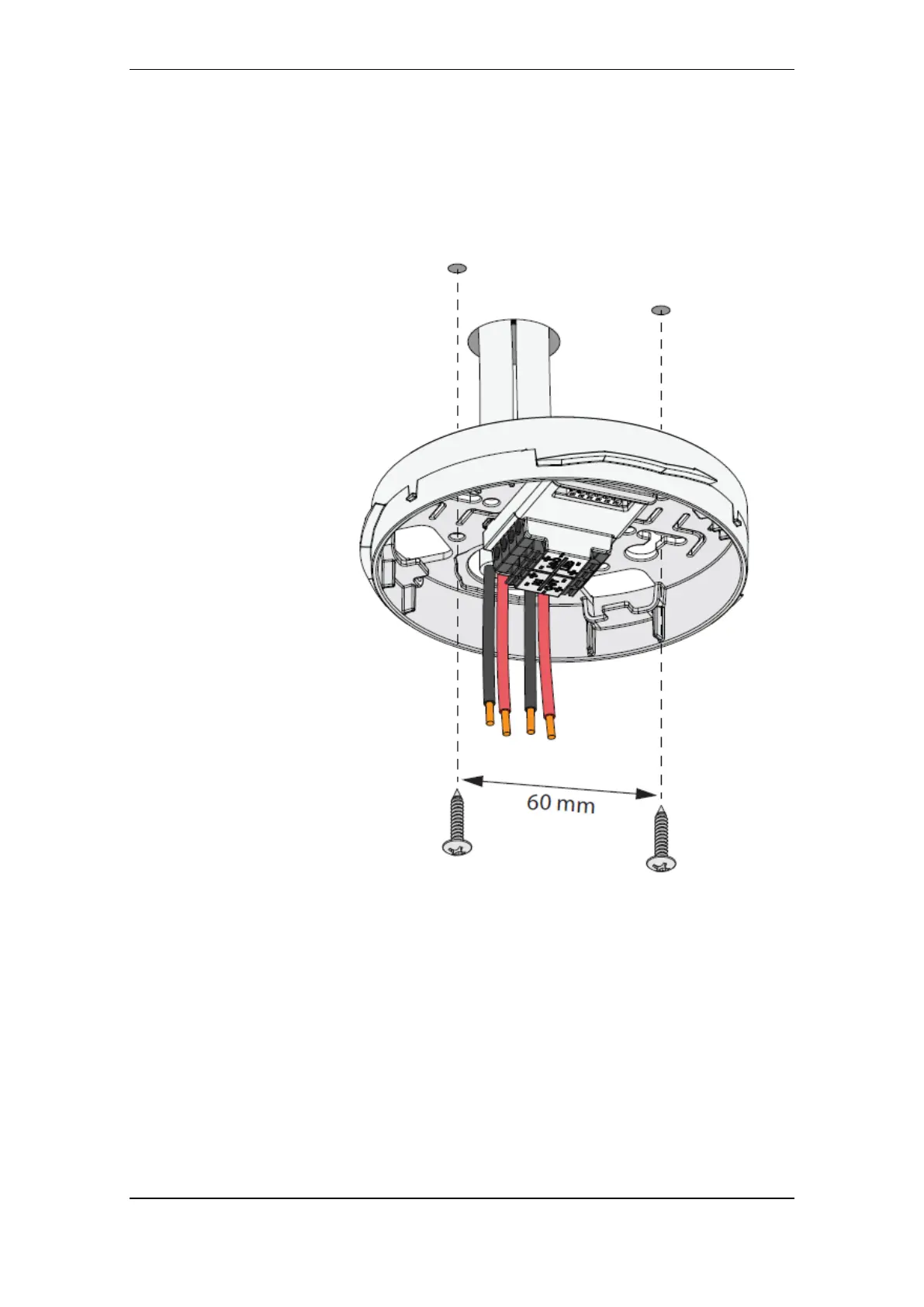

• Feed the cables through the Ø25 mm cable entry as shown
• Mount the protector base to the ceiling by fastening the screws
