Autronica AutroGuard Multicriteria Protector V-430 Series User Manual

Mounting Instructions
AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339-4, 2022-12-09,
Autronica Fire and Security AS
Page 52

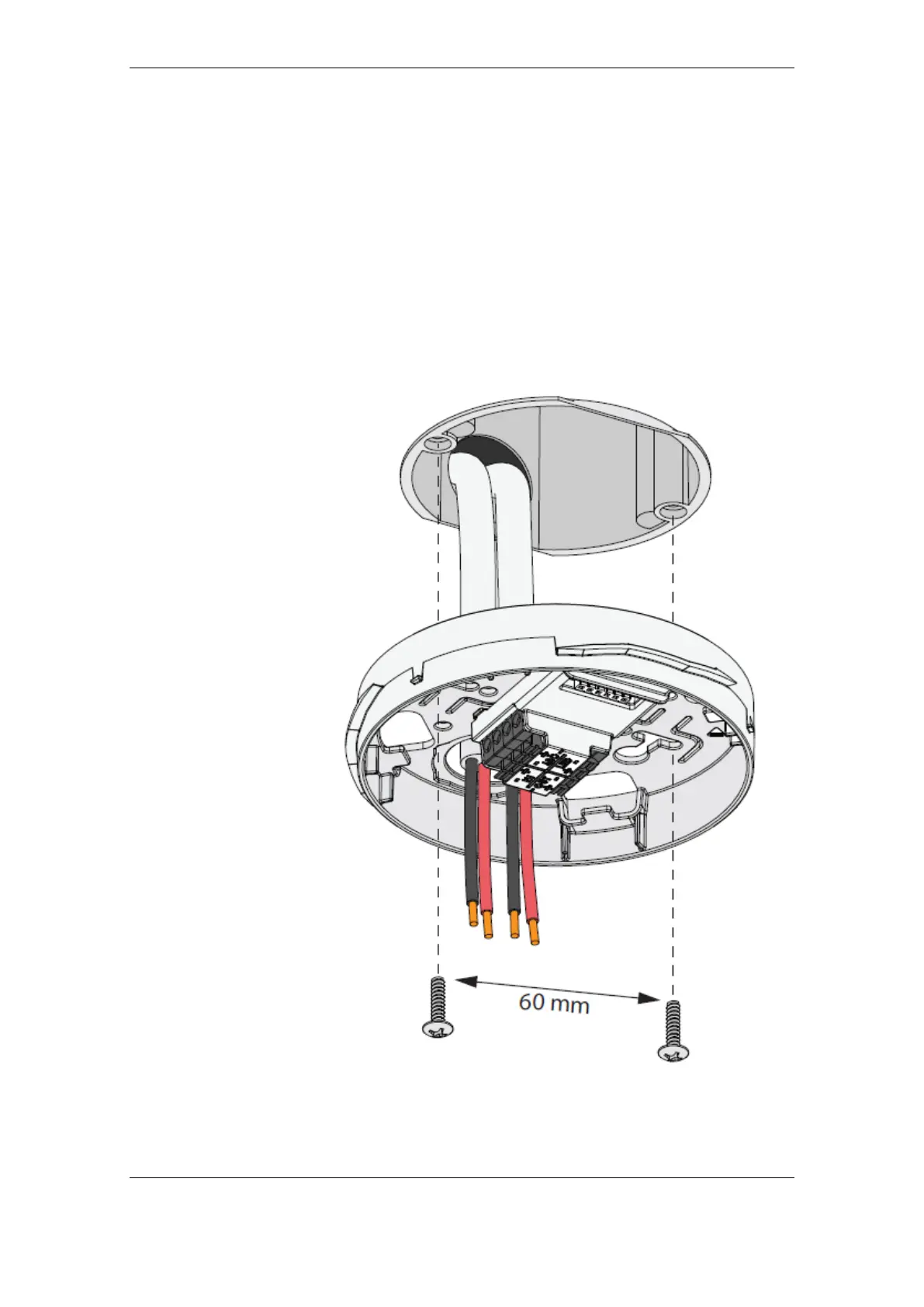

9.2.4 Mounting onto a Ceiling Box / Wall Box
Standard 60 mm ceiling or wall boxes can be used when mounting
the protector base onto a ceiling or wall box.
• Consult the manufacturer’s instructions delivered with the
standard ceiling or wall box
• Mount the ceiling or wall box in the ceiling as described in the
manufacturer’s instructions
• Feed the cables through the Ø25 mm cable entry as shown
• Mount the protector base onto the box by fastening the screws

Autronica AutroGuard Multicriteria Protector V-430 Series Specifications

General

Brand	Autronica
Model	AutroGuard Multicriteria Protector V-430 Series
Category	Fire Alarms
Language	English
