Mounting Instructions
AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339-4, 2022-12-09,
Autronica Fire and Security AS
Page 60
9.3.5 Connections - Overview
Connector
Description
Remarks
IN +
Loop + input
IN -
Loop - input
OUT +
Loop + output (Main/Branch)
Note that either of the outputs on the
connector can be used (optional) for the main
loop or a branch-off.
OUT -
Loop - output (Main/Branch)
OUT +
Loop + output (Main/Branch)
OUT - Loop - output (Main/Branch)
LED +
Remote LED + output
LED connection to external LED indicator.
Maximum 5 mA.
LED -
Remote LED - output

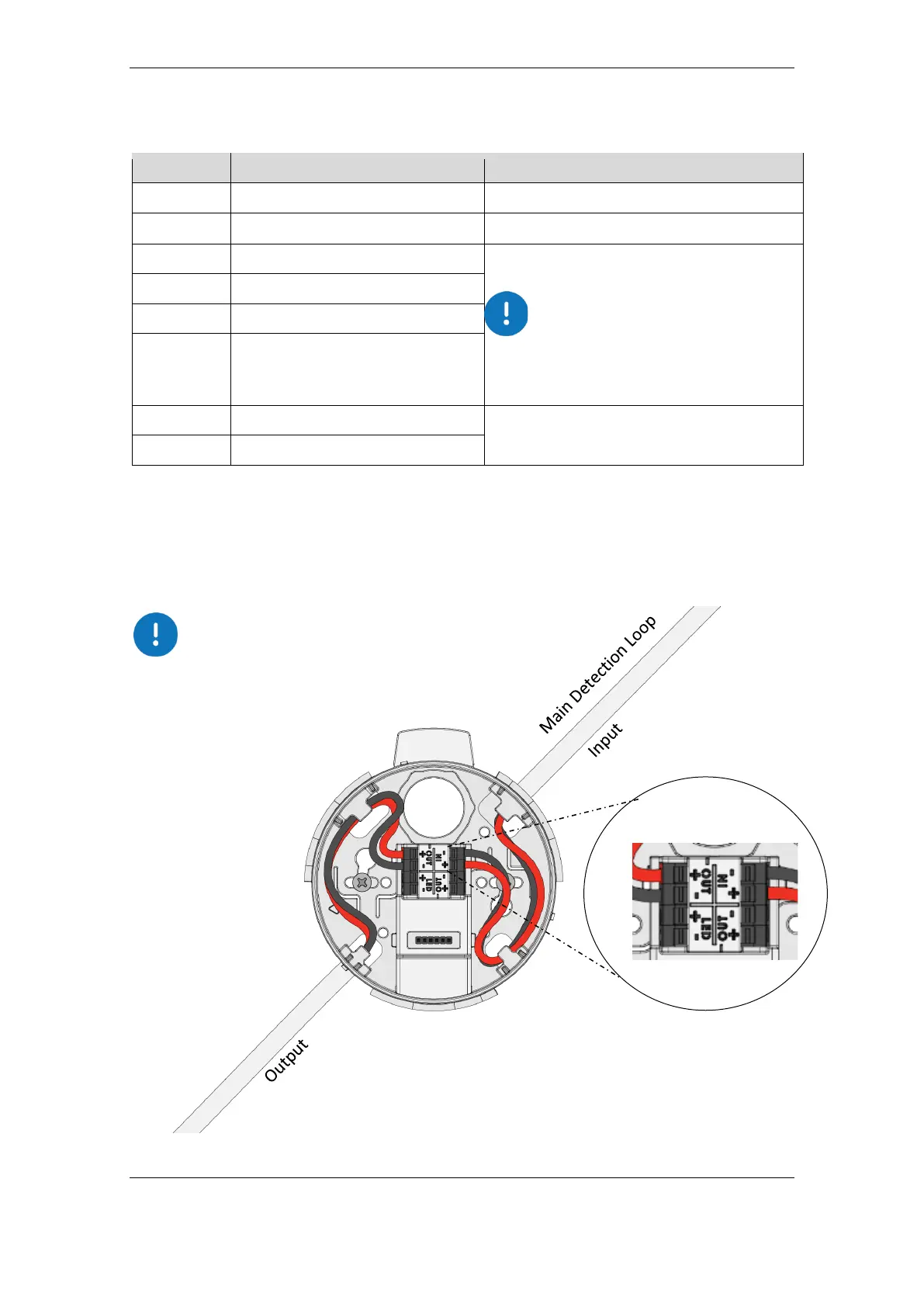

9.3.6 Loop Connections
The connection of the loop cables is shown below. In the example
below, the cables are fed through cable entries/exits used for
surface-mounted cabling.
Make sure that the + and –
wires are connected
correctly according to the
table in chapter 9.3.5
