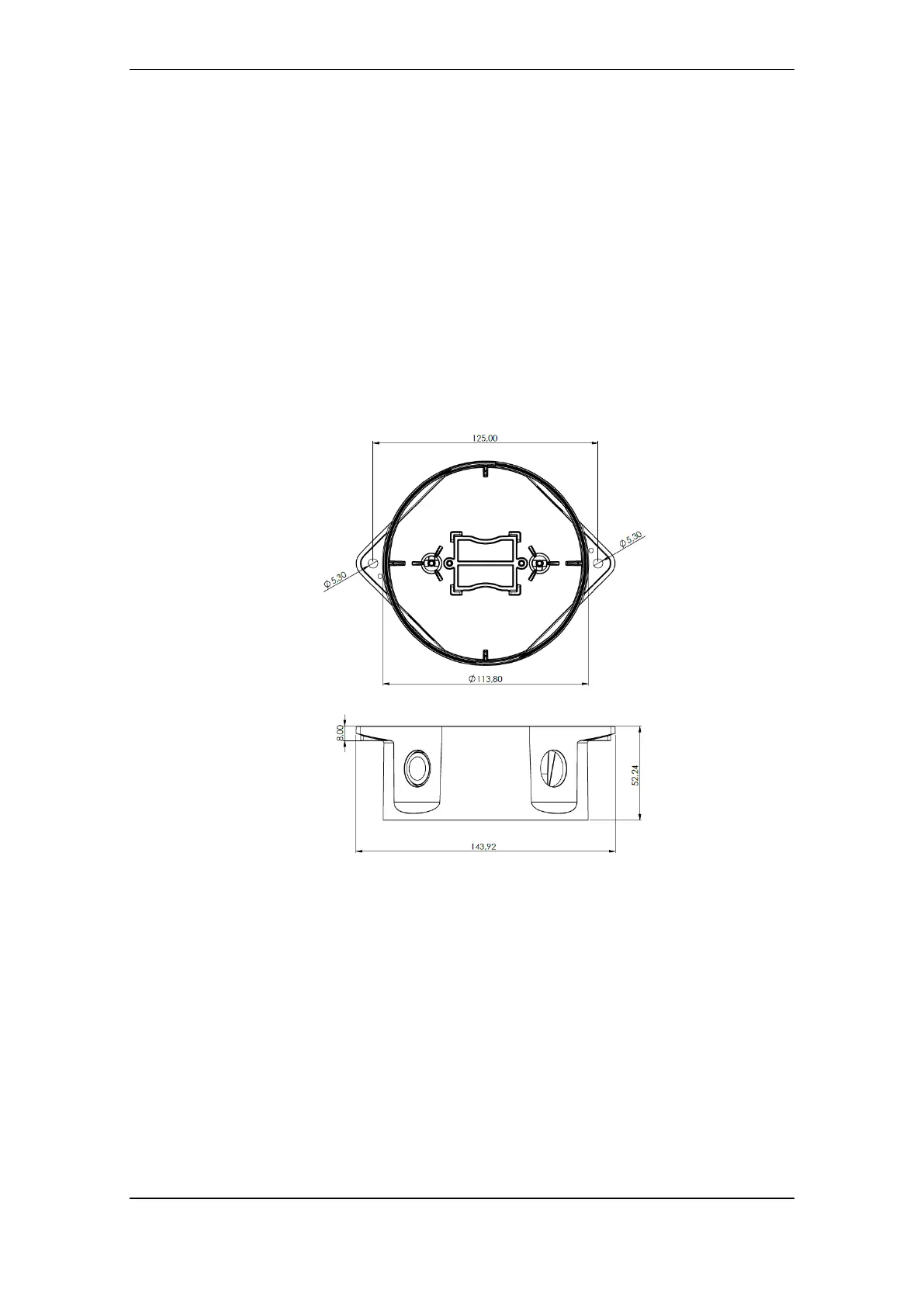

9.2.5 Mounting onto a Conduit Box
The conduit box (see part numbers chapter 15.7) has a total of six 20
or 25 mm knockouts; 2 at the bottom and 4 around the sides located
at 90, 180, 270 and 360 degrees. A click-type cable gland is included.
The use of cable glands provides an ingress protection level of IP55.
• Mark and drill the necessary holes for the conduit box
• Use a plier to gently remove the knockouts for the chosen cable
entries
• Mount the conduit box to the ceiling by fastening the screws
• Feed the cables through the chosen cable entries
• Mount the protector base onto the conduit box by fastening the
screws
