MXNET 1G USER MANUAL
7
IR OUT
•
3.5mm mono jack (TS) IR transmitter port
• Sends encapsulated/virtualized IR signals upstream via the MXNET API
8
IP MONITOR
•
Built-in front panel mini-OLED screen “data window”
• Displays the encoder’s custom name or MAC address and IP address
9

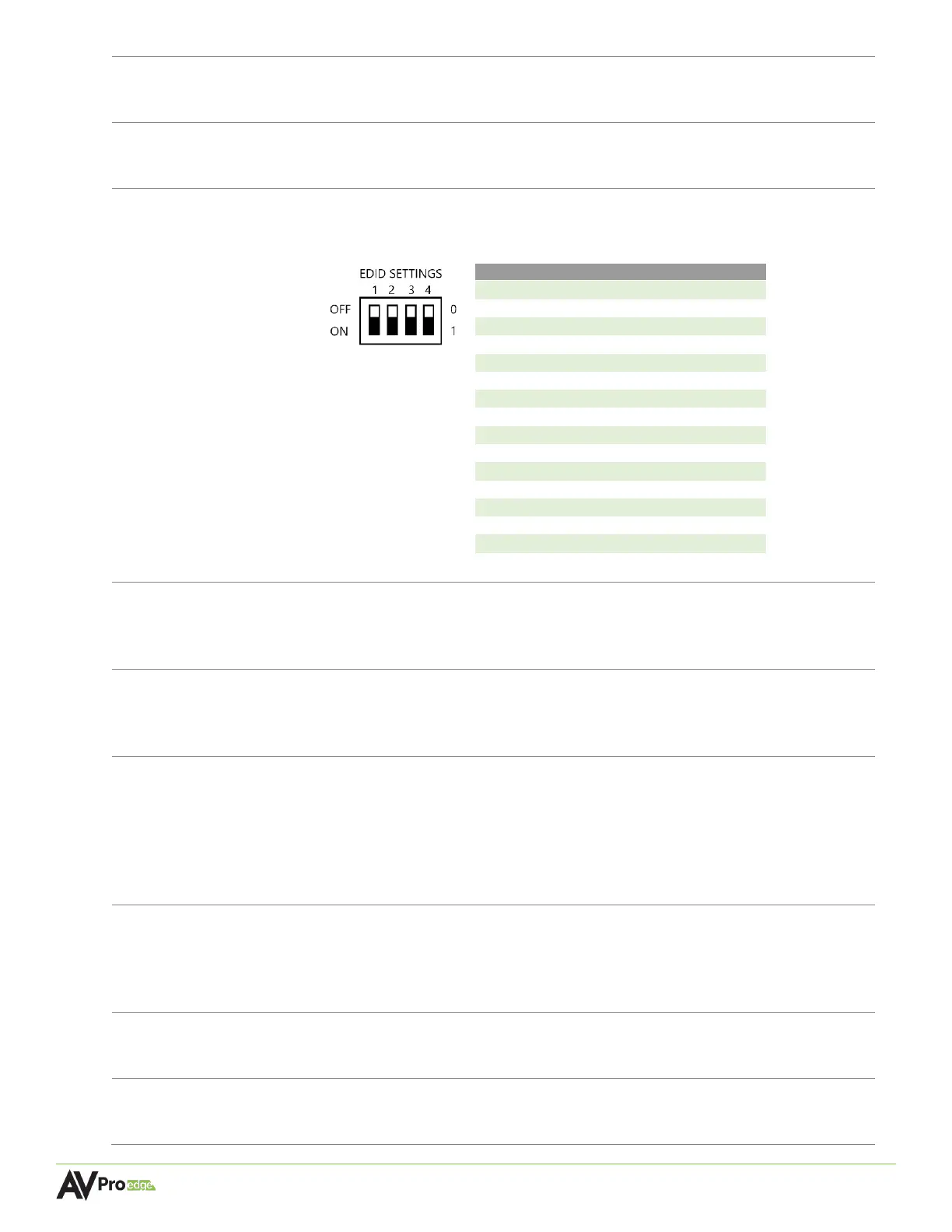

EDID
SETTINGS
•
Dipswitches for manually setting an EDID on the encoder, can also be done in
Mentor, either method will overwrite the previous setting
JUMPER
1234
FOLLOW SOFTWARE (default)
0000
1080P_2D_6CH
1000
1080P_3D_6CH
0100
1080P_3D_6CH
1100
4K30Hz_3D_2CH
0010
4K30Hz_3D_6CH
1010
4K30Hz_3D_8CH
0110
1080P_2D_2CH_HDR
1110
1080P_2D_6CH_HDR
0001
1080P_3D_2CH_HDR
1001
1080P_3D_6CH_HDR
0101
4K30Hz_3D_2CH_HDR
1101
4K30Hz_3D_6CH_HDR
0011
4K30Hz_3D_8CH_HDR
1011
1920x1200_3D_2CH_HDR
0111
USER_EDID
1111
10
USB SELECT
•
FPGA/MCU toggle switch
• Used for configuring the encoder for point-to-point connection with an
MXNet 1G decoder (default setting is MCU ISP)
11
USB
•
Micro-USB Type B female connector port
• Used for configuring the encoder for point-to-point connection with an
MXNet 1G decoder
12
GbE
NETWORK
•
8-pin RJ-45 female connector, 1000BASE-T copper Ethernet port
• Supports standard PoE power, IEEE 802.3AF (15.4 W)
• Maximum power consumption of 6.5 W (AVDM 9.5 W)
• 10/100/1000Mbps auto-negotiation
• MDI/MDI-X cable mode auto-negotiation
• Maximum distance 100m (330ft) over Cat5e and higher
13
BI DIR. O.M.
LC FIBER
•
Bidirectional SFP fiber optic connector port
• Supports single mode or multimode SFP modules for extremely long runs
• Recommended single mode fiber: LC to LC 1310nm, up to 40km (24.85 miles)
• Recommended multimode fiber: LC to LC 850nm, up to 550m (1804ft)
14
HDMI LOOP
OUT
•
19-pin HDMI Type A female connector port
• Copy EDID functionality used in conjunction with front panel button
15
HDMI IN
•
19-pin HDMI Type A female connector port
• Source device input for HDMI connection
