GENERAL DESCRIPTION | INPUT CONNECTIONS

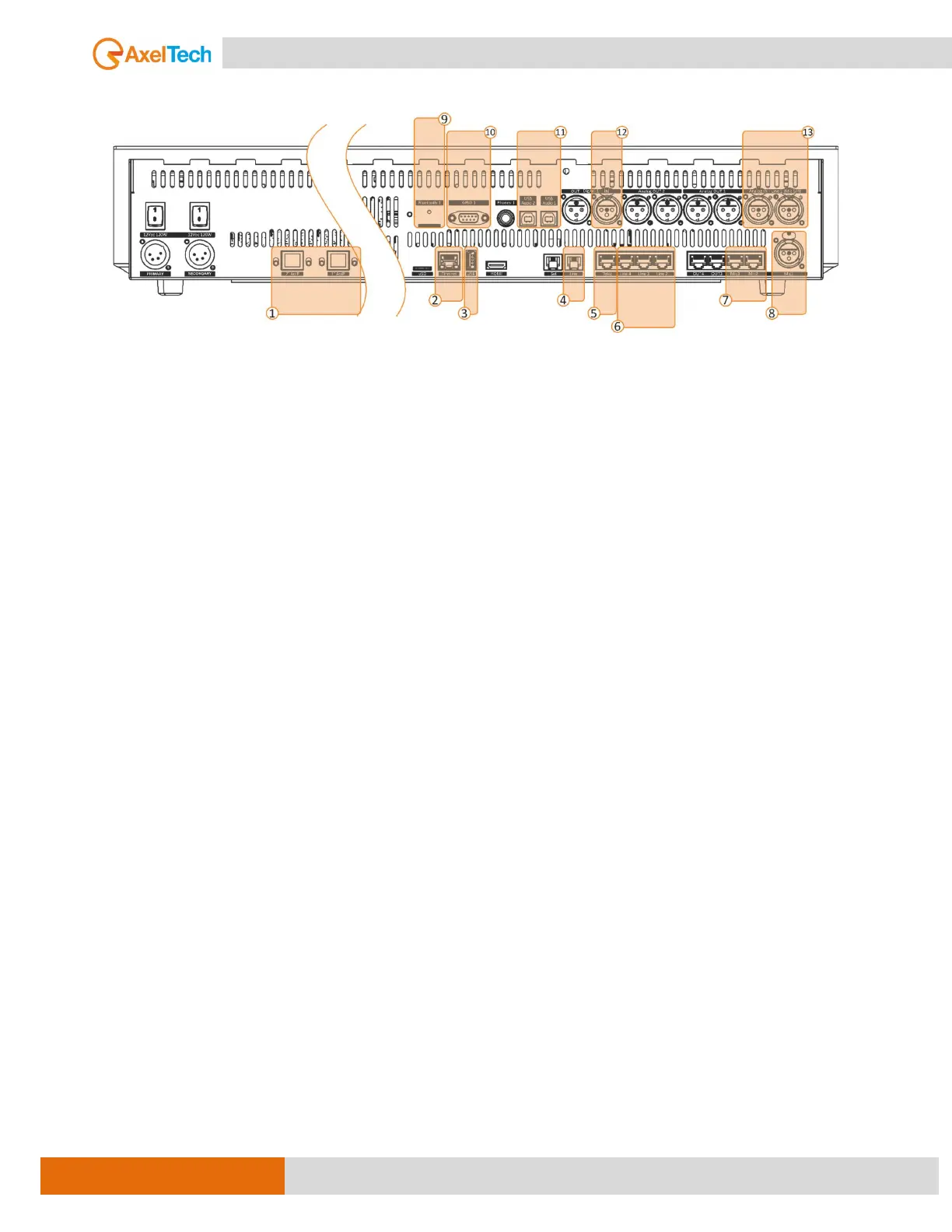

INPUT CONNECTIONS
1. AOIP – LAN DANTE (OPTIONAL).
16 or 32 Stereo digital audio inputs over Ethernet. If the
DANTE board was not purchased with the device these
inputs are not enabled and do not work.
Each DANTE channel could be set as:
Stereo, 2 mono, or 2 Telco Inputs. updates.
MAIN / AUDIO / SETTINGS / INPUT MODE / DANTE / INPUT /
MODE [MORE INFO ]
2. Ethernet
RJ45 Female Connector Internet Connection used as
streaming audio input.
Used also for controlling the console via the Web
interface, remote control, and online updates.
MAIN / GENERAL SET. / COMMUNICATIONS / TCP-IP
[MORE INFO ]
3. USB
A USB port Type A to Export and Import the mixer
configurations and to customize the station LOGO. To
configure it navigates to MAIN / AUDIO / SETTINGS / INPUT
MODE [MORE INFO ]
4. Telephone
Analog Telephone Line Input (RJ11) for POTS/PSTN
interfacing. To configure it navigates to MAIN / AUDIO /
INPUTS / PHONE [MORE INFO ]
5. Telco I/O
TELCO Input/output over RJ45 connector. It is also carried
2 GPIO signals for controlling external telephone hybrid
or sending status information.
1 GPI to get the incoming call signal by the flashing of the
F1 button.
1 GPO to control the external hybrid device for the hook
or drop of the calls.
To configure it navigates to MAIN / AUDIO / INPUTS / TELCO
[MORE INFO ]
6. ANALOG IN (LINE-2, LINE-3, LINE-4)
3 Stereo analog audio inputs over RJ45 connectors. Each
one of these inputs is configurable to be as:
STEREO by default, 2 MONO, or 2 TELCO.
The user can change the mode of the source by
navigating to MAIN / AUDIO / SETTINGS / INPUT MODE
[MORE INFO ]
7. MIC 2, MIC 3
MIC input over the RJ45 connector includes 2 GPI and 1
GPO on each connector. These 2 ports can be used to
connect the Talk Box interfacing or connect the mic
directly by a special cable called EASY MIC. [MORE INFO ]
Balanced Audio Connection (10 kΩ).
8. MIC 1
Mic Input - XLR Female - Balanced Audio Connection
(1.2kΩ). [MORE INFO ]
9. Bluetooth
Bluetooth Stereo/Mono Input.
Wireless Smartphone input/output connection.
To configure, it navigates to MAIN / AUDIO / INPUTS /
BLUETOOTH [MORE INFO ]
10. GPIO
SUB-D 9p Female, 4 GPI & 4 GPO.
To configure it navigates to MAIN / GENERAL SET. / GPIO
[MORE INFO ]
11. USB AUDIO 1, USB AUDIO 2
2 Audio Card Stereo Input/output bidirectional Type
USB-B.
12. DIGITAL INPUT
(AESEBU) on XLR Female connector for the digital
AESEBU input audio signal. Balanced Audio Connection
(110Ω)
13. ANALOG INPUT LINE-1 or MIC 4/5
1 Stereo Input / 2 Mono / 2 Mic
Audio LINE level or Mic level Input on XLR Female.
Balanced Audio Connection (10KΩ).
The user can change the mode of the source by
navigating to MAIN / AUDIO / SETTINGS / INPUT MODE
[MORE INFO ]
