GENERAL DESCRIPTION | OUTPUT CONNECTIONS

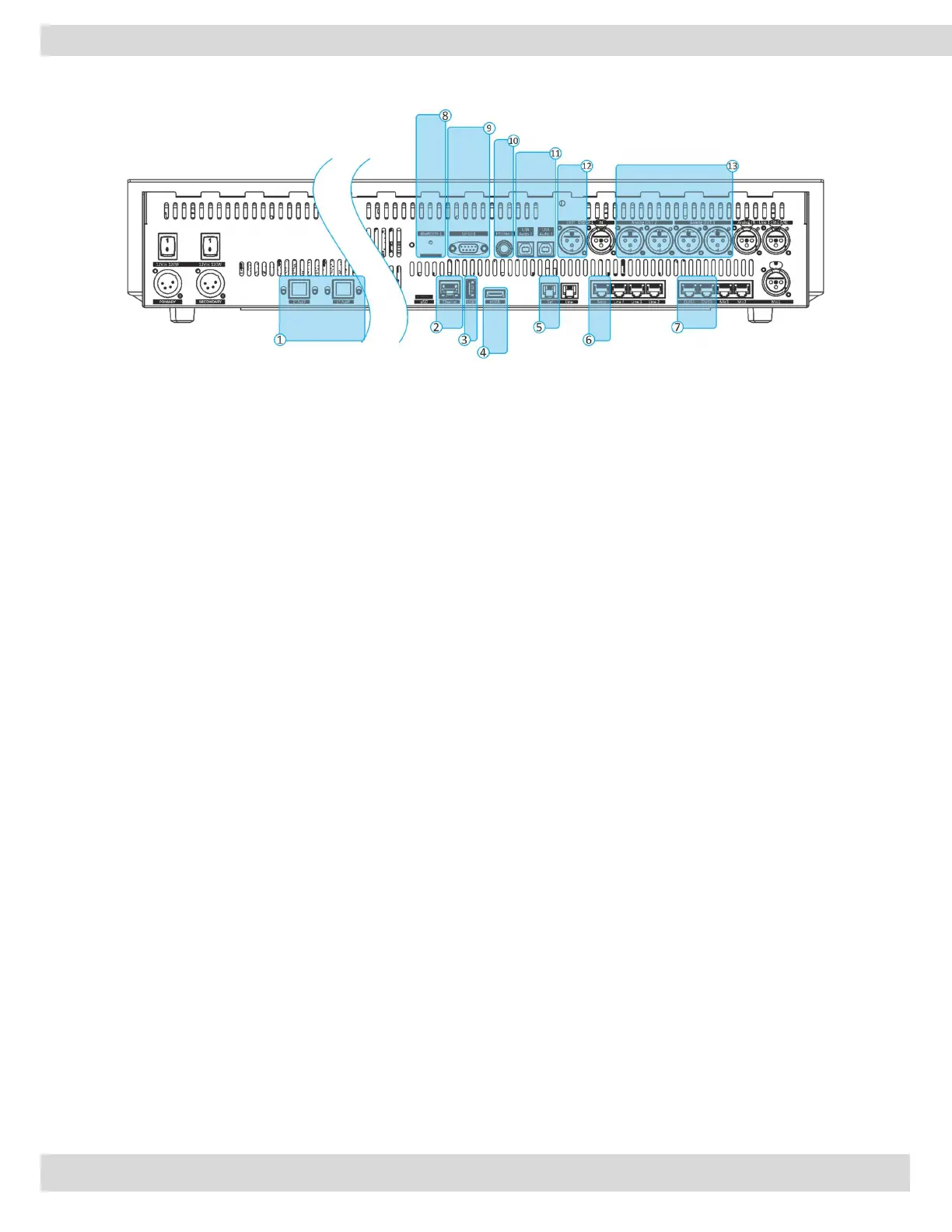

OUTPUT CONNECTIONS
1. AOIP – LAN DANTE (OPTIONAL).
16 or 32 Stereo digital audio outputs over Ethernet. If the
DANTE board was not purchased with the device these
outputs are not enabled and do not work.
Each DANTE channel could be set as:
Stereo, 2 mono, or 2 Telco outputs. updates.
MAIN / AUDIO / SETTINGS / INPUT MODE / DANTE / INPUT /
MODE [MORE INFO ]
2. Ethernet
RJ45 Female Connector Internet Connection used as
streaming audio output.
MAIN /AUDIO / SETTINGS / INPUT MODE / STREAMING
[MORE INFO ]
3. USB
A USB port Type A to Export and Import the mixer
configurations. To export the configuration navigate to
MAIN / AUDIO / OUTPUTS / DIGITAL / USB [MORE INFO ]
4. HDMI Output
Standard HDMI Female Connector – External Monitor.
To configure it navigates to MAIN / GENERAL SET. /
LIGHT&DISPLAY [MORE INFO ]
5. Telset ☎
(RJ11) used to connect the Telset port to a telephone
base unit.
6. Telco I/O
TELCO Input/output over RJ45 connector. It is also carried
2 GPIO signals for controlling external telephone hybrid
or sending status information.
1 GPI to get the incoming call signal by the flashing of the
F1 button.
1 GPO to control the external hybrid device for the hook
or drop of the calls.
To configure it navigates to MAIN / AUDIO / INPUTS / TELCO
[MORE INFO ]
7. ANALOG OUTPUT (OUT 3, OUT 4)
2 Stereo analog audio outputs over RJ45 connectors.
Each one of these outputs is configurable to be as:
PGM, SUB, AUX, SPEAKER, HEADPHONE, or TELCO(n-1).
The user can change the mode of the source by
navigating to MAIN / AUDIO / OUTPUTS / ANALOGE
[MORE INFO ]
8. Bluetooth
Wireless Smartphone input/output connection.
Bluetooth Mono phone call communications, Skype,
WhatsApp, …etc.
To configure, it navigates to MAIN / AUDIO / INPUTS /
BLUETOOTH [MORE INFO ]
9. GPIO
SUB-D 9p Female, 4 GPI & 4 GPO.
To configure it navigates to MAIN / GENERAL SET. / GPIO
[MORE INFO ]
10. HEADPHONES
On a female Jack 6,3 mm connector for the audio
monitoring with Control Room Headphones.
11. USB AUDIO 1, USB AUDIO 2
2 Audio Card Stereo Input/output bidirectional Type
USB-B.
12. DIGITAL OUTPUT
(AESEBU) on XLR Male connector for the digital AESEBU
output audio signal. Balanced Audio Connection (110Ω)
13. ANALOG-OUT-1, ANALOG-OUT-2
2 Stereo Output - XLR Male - Balanced Audio Connection (47Ω)
Each one of these outputs is configurable to be as:
PGM, SUB, AUX, SPEAKER, HEADPHONE, or TELCO(n-1).
The user can change the mode of the source by
navigating to MAIN / AUDIO / OUTPUTS / ANALOGE
[MORE INFO ]
