MENU | AUDIO

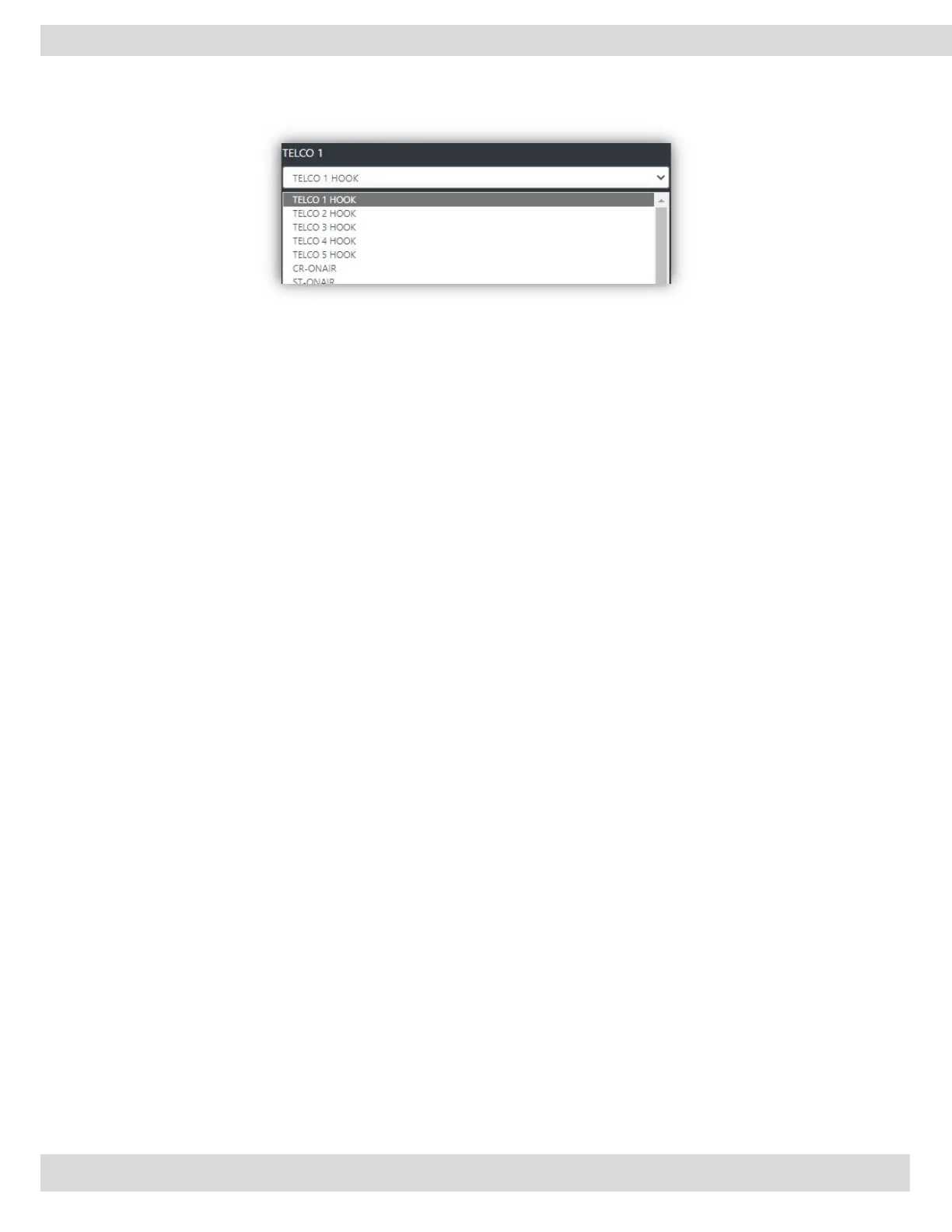

To manage TELCO 1 GPO signal set the TELCO 1 HOOK by the following submenu:
MAIN / GENERAL / GPIO / GPO / TELCO 1
ADDITIONAL TELCO LINES
It is possible to use 4 more additional TELCO lines (TELCO 2 / TELCO 3 / TELCO 4 / TELCO 5) by setting the
console with the correct parameters.
ADDITIONAL TELCO INPUT
ANALOG-IN-1 could be configured as 2 different mono TELCO inputs:
TELCO 2: ANALOG-IN-1-L
TELCO 3: ANALOG-IN-1-R
to use the 2 above signals as 2 separate telco input lines please set the related parameter as follow:
MAIN / AUDIO / SETTINGS / INPUT MODE / LINE 1 MODE = 2 TELCO
after this setting, the choosable source will be no more only ANALOG-IN-1 but the 2 input signals will be
labeled in the source list as TELCO 2 and TELCO 3.
DANTE-IN-1 could be configured as 2 different TELCO mono inputs:
TELCO 4: DANTE-IN-1-L
TELCO 5: DANTE-IN-1-R
NB: If your console does not have the DANTE option you can not have TELCO 4 and TELCO 5. The only available additional
TELCO will be TELCO 2 and TELCO 3.
to use the 2 above signals as 2 separate telco input lines please set the related parameter as follow:
MAIN / AUDIO / SETTINGS / INPUT MODE / DANTE 1 MODE = 2 TELCO
