GENERAL DESCRIPTION | TALKBOX CONNECTIONS
OXYGEN
3000 PLUS
· User Manual · ENG

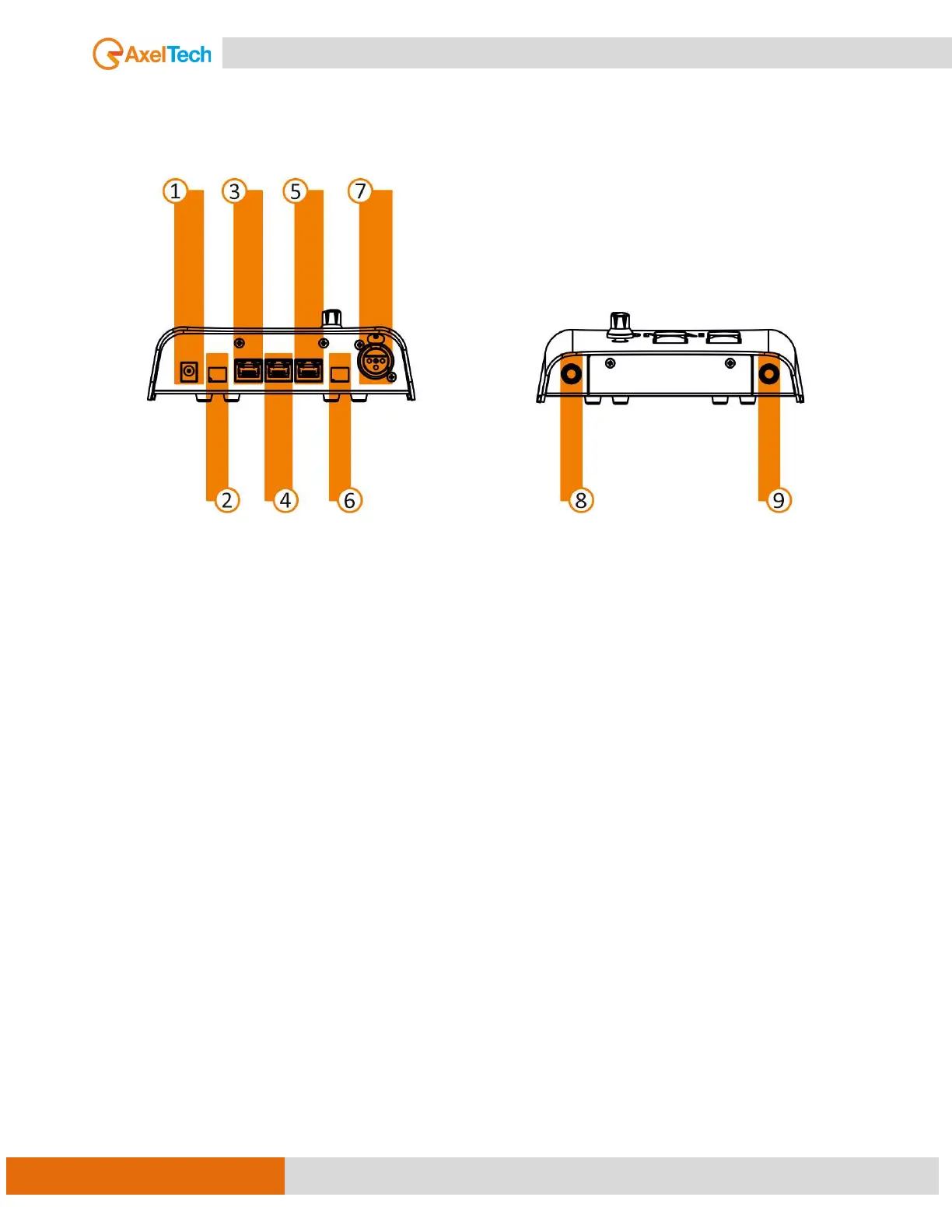

TALKBOX CONNECTIONS
1. Power Supply
12VDC 1A
6. Mic Light
2 PIN Screw Connector - (12VDC
output).
2.
ON AIR
Light
relay
DC relay normally opens NO.
2 PIN Screw Connector.
7.
Mic
Input
XLR Female Connector.
3.
HDP Output
RJ45 Connector (SFTP CABLE
REQUIRES) - (Passive Loop Output).
8.
HDP
-
1
-
TBox
Jack 6.3mm Female Connector -
(Min. Imp. 32Ω).
4. HDP Input
RJ45 Connector (SFTP CABLE
REQUIRES)
9. HDP-2-TBox
Jack 6.3mm Female Connector -
(Min. Imp. 32Ω).
5.
Talk Box
Connection
MIC & GPIO connection over RJ45
Connector (SFTP CABLE REQUIRES).
(Passive microphone Output).
