Barco DP2K-12C

12. Card Cage
7

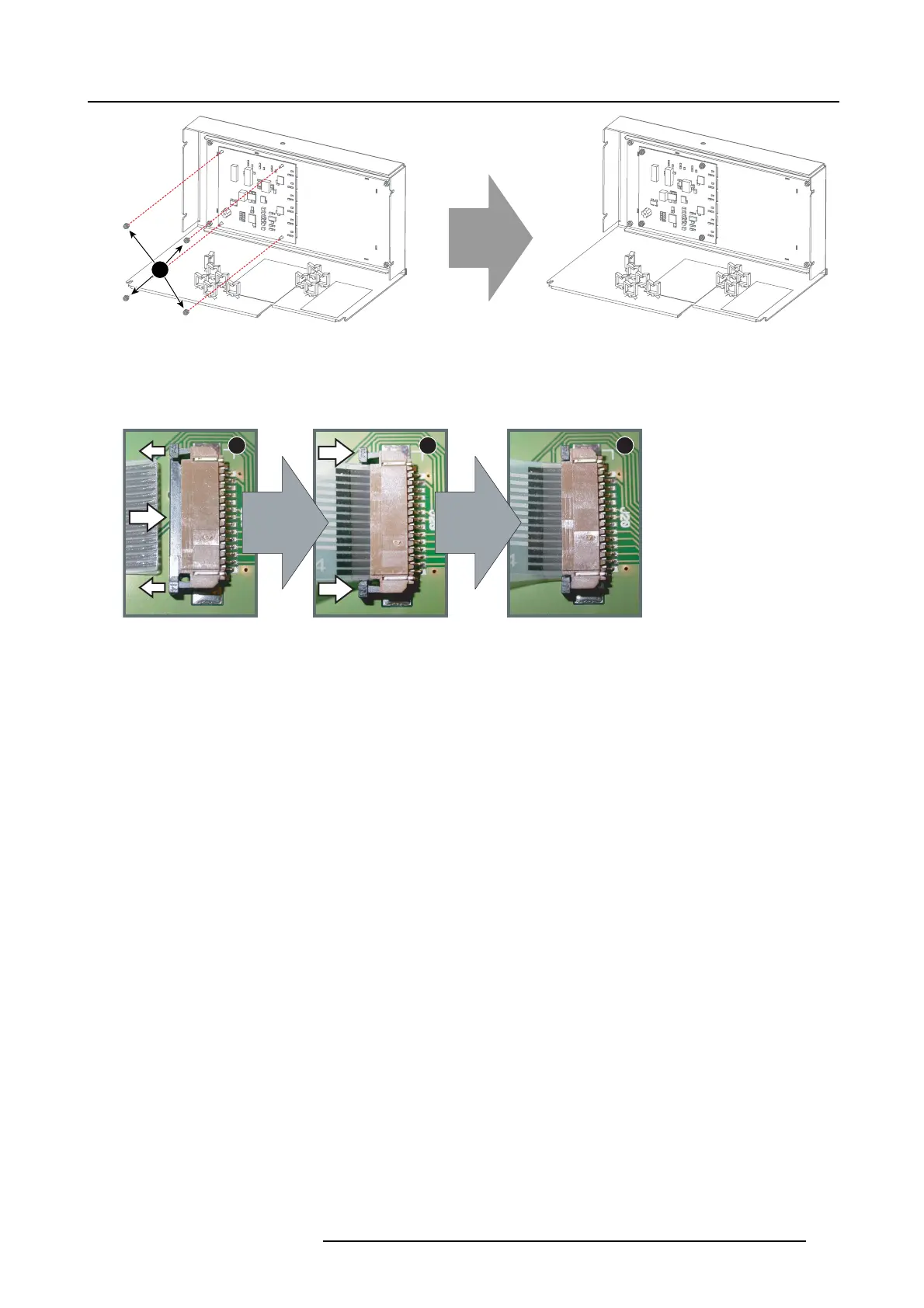

Image 12-22
6. Connect the flat cable t o the Button module by performing the following procedure:
a) Make sure the locks a t both sides of the socket are pulled out (step 1, im age 12-23).
b) Insert the fl at cable into the socket (step 2, im age 12-23).
c) Lock the flat cable by pus hing in the locks at both sides of the socket (step 3, image 12-23).
1 2 3
Image 12-23
R5905043 DP2K-12C/11CX 19/02/2018 225
