Barco DP2K-12C

12. Card Cage
3
Image 12-26

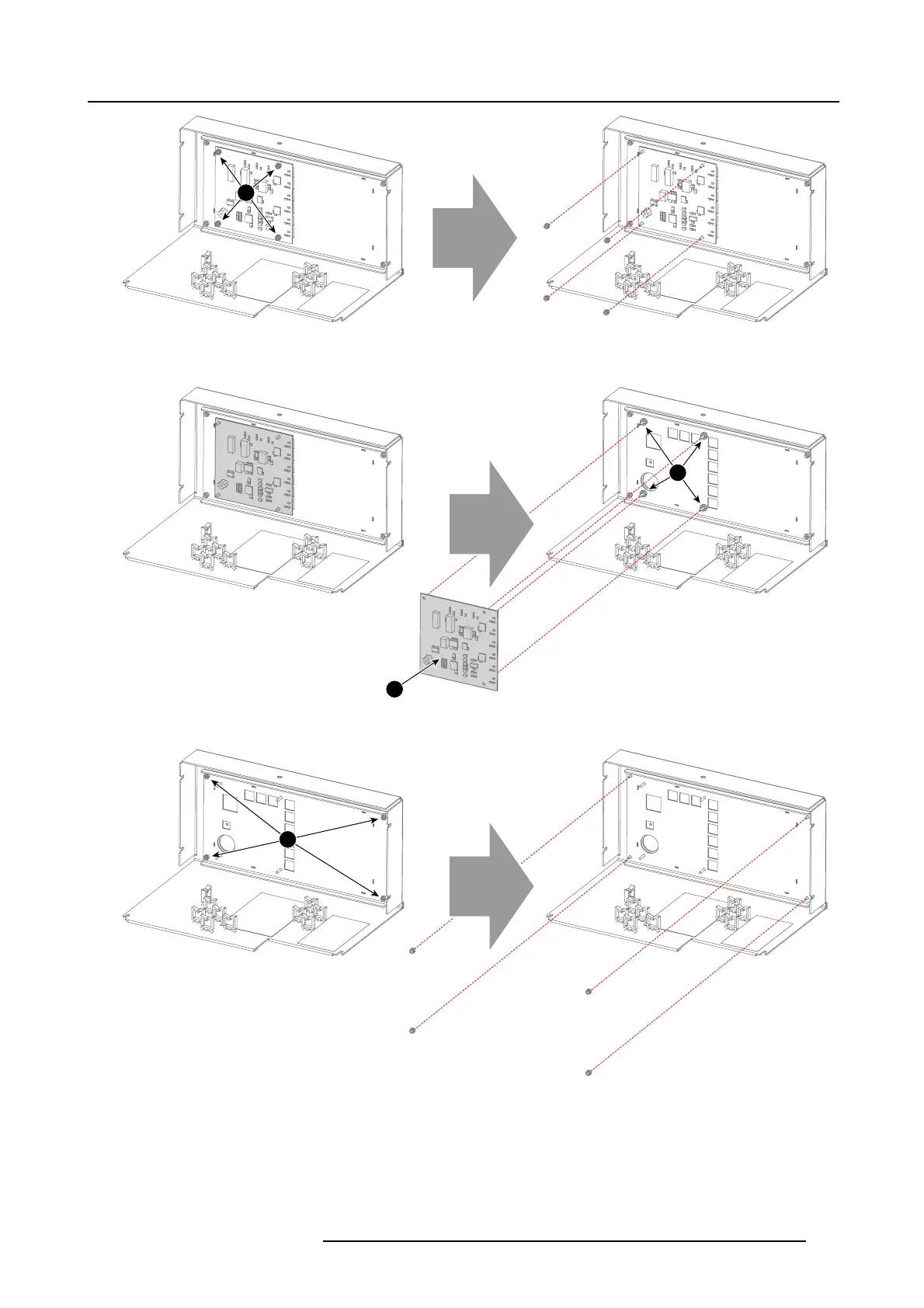

3. Remove the B utton module (reference 4, image 12-27) and the 4 w ashers (reference 5, im age 12-2
7) from the Button m odule
mounting bolts.
4
5
Image 12-27
4. Remove the 4 lock nuts (reference 6, image 12-28) from the Keypad mounting bolts.
6
Image 12-28
5. Remove the Keypad (reference 7, image 12- 29).
Tip: Make sure the 4 w ashers (reference 8, im age 12-29) don’t dr op off the Keypad mounting bolts.
R5905043 DP2K-12C/11CX 19/02/2018
227
