Barco DP2K-12C

12. Card Cage
7
8

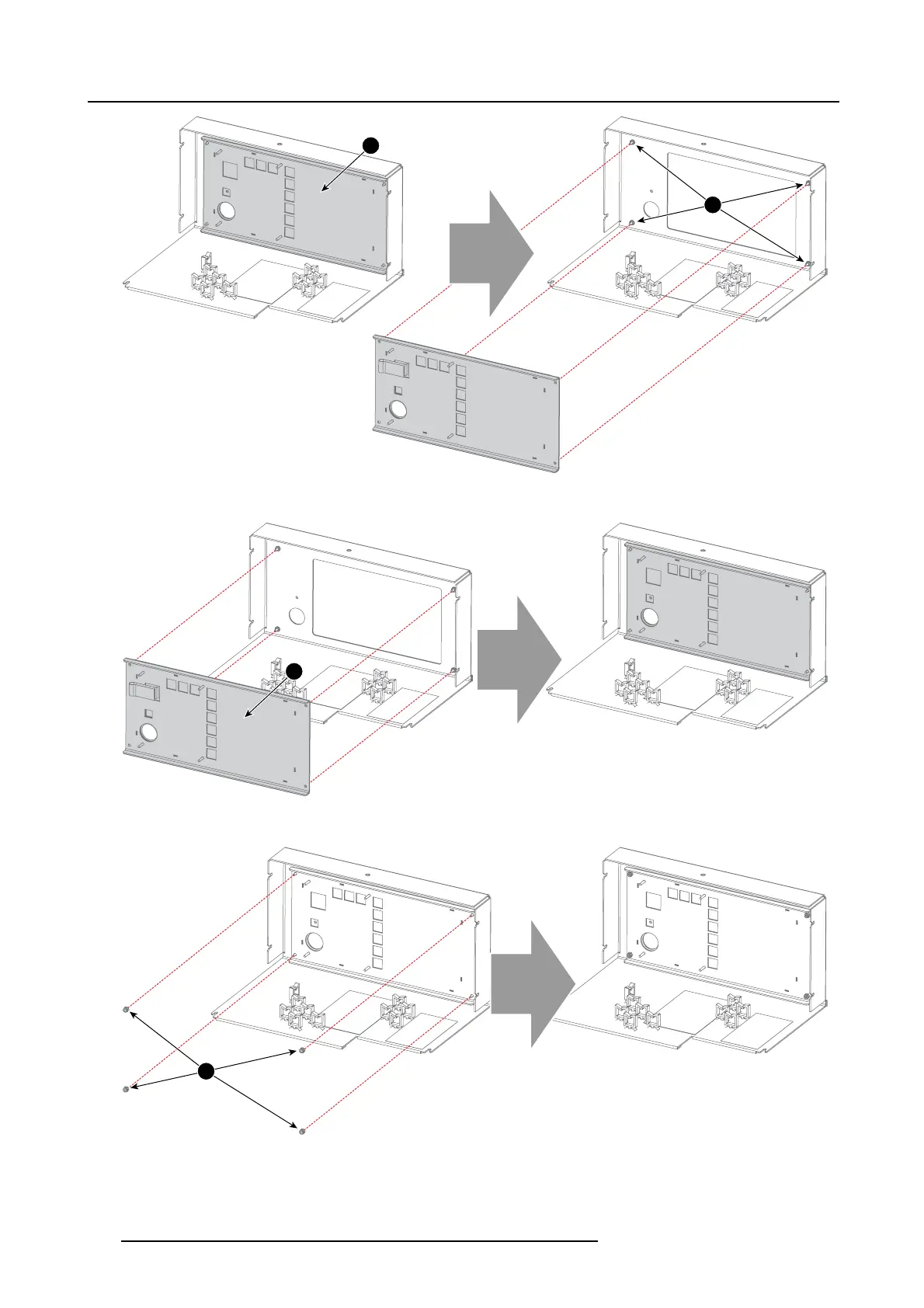

Image 12-29
6. Install the new Keypad (reference 9, image 12-30).
9
Image 12-30
7. Tighten the 4 lock nuts (reference 10, im age 12-31) on the Ke ypad m ounting bolts.
10
Image 12-31
8. Install the new Button m odule (reference 11, image 12-32).
228
R5905043 DP2K-12C/11CX 19/02/2018
